Anytone AT-3208 Plus Single band VHF or UHF Walkie-talkie long range 5W Analog 2 Way Radio Handheld Radio

Anytone AT-3208 Plus Single band VHF or UHF Walkie-talkie long range 5W Analog 2 Way Radio developed through independent research and development not only have powerful functions, but also solve the pain points that have plagued the industry for a long time. The products have a wide range of applications in Walkie Talkie.

MODEL NO.: AT-3208 PLUS
Funtions:
1.Squelch Off
2.Monitor funtion
3.Current Channel Power Enquiry
4.Scan Frequency Reverse
5.Talk Around
6.Battery Capacity Enquiry
7.Power Switch: it can change the current channel power and announces
8.Call 1/Call 2
9.Emergency Alarm Function
10. VOX funtion
11.50 CTCSS / 116 DCS Encode and Decode
12.Optional Signaling (DTMF)
13.Signaling Relations Setup
14.Wide / Narrow Band Setup
15.Accession to Scan List
16.Busy Channel Lockout
17.Time-out Timer & Time-Out Timer Pre-Alarm
18.Voice Prompt
19.Battery Save Setup
20.Priority Scan Setup
21.Return to Appointed Channel
22.Expand Frequency
23.Eliminating Tail without signaling
24.Resume Factory Default
**can be programmed by pc cable

Specification
General
Frequency Range
VHF:136~174MHz UHF: 400~480MHz
Channel Capacity
16 channels
Channel Spacing
25KHz (Wide Band) 12.5KHz (Narrow Band)
Phase-locked Step
5KHz, 6.25KHz
Operating Voltage
7.4V DC
Battery Life
More than 12 Hours (1500mAh), by 5-5-90 work cycle
Frequency Stability
±2.5ppm
Operating Temperature
-20℃~ +55℃

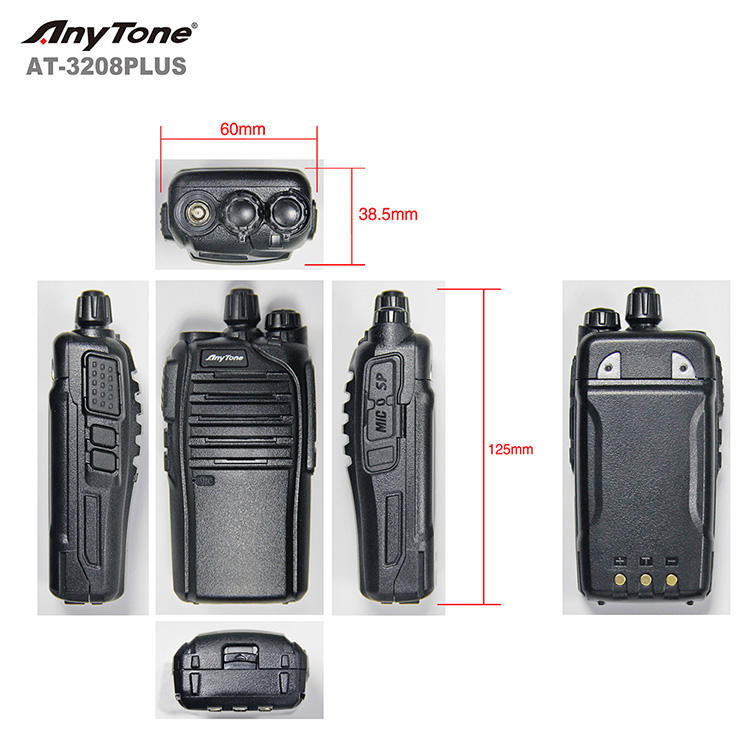

Size
127×60×35mm (with battery pack)
Weight
219 g (with battery pack, antenna)
Receiving Part
Wide band
Narrow band
Sensitivity(12dB SINAD)
≤0.25μV
≤0.3μV
Adjacent Channel Selectivity
≥60dB
≥60dB
Intermodulation
≥60dB
≥60dB
Spurious Rejection
≥80dB
≥80dB
Audio Response
6dB/per interval
6dB/per interval
Hum & Noise
≥50dB
≥45dB
Audio Distortion
≤5%
Audio Power Output
500mW/10%
Transmitting Part
Wide band
Narrow band
Power Output
5W/1W
Modulation
16KΦF3E
11KΦF3E
Adjacent Channel Power
≥60dB
≥60dB
Hum & Noise
≥45dB
≥40dB
Spurious Emission
≤-36dB
≤-36dB
Audio Response
6dB/per interval
6dB/per interval
Audio Distortion
≤5%

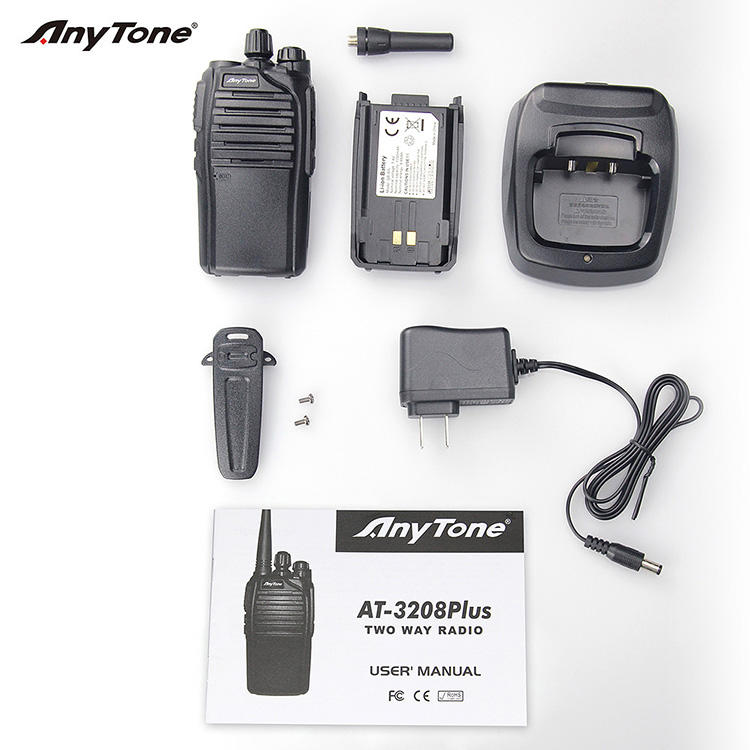

Package Includes:

1. Anytone AT-3208 Plus  VHF or UHF Radio

2.1500 mAh lithium ion battery
3.Desk charger w/ AC adapter

4.Single-band antenna

5.Belt clip
6.software
7.User manual
Weight 0.8 kg
Dimensions 300 × 400 × 100 cm
Frequency Range

VHF, UHF
