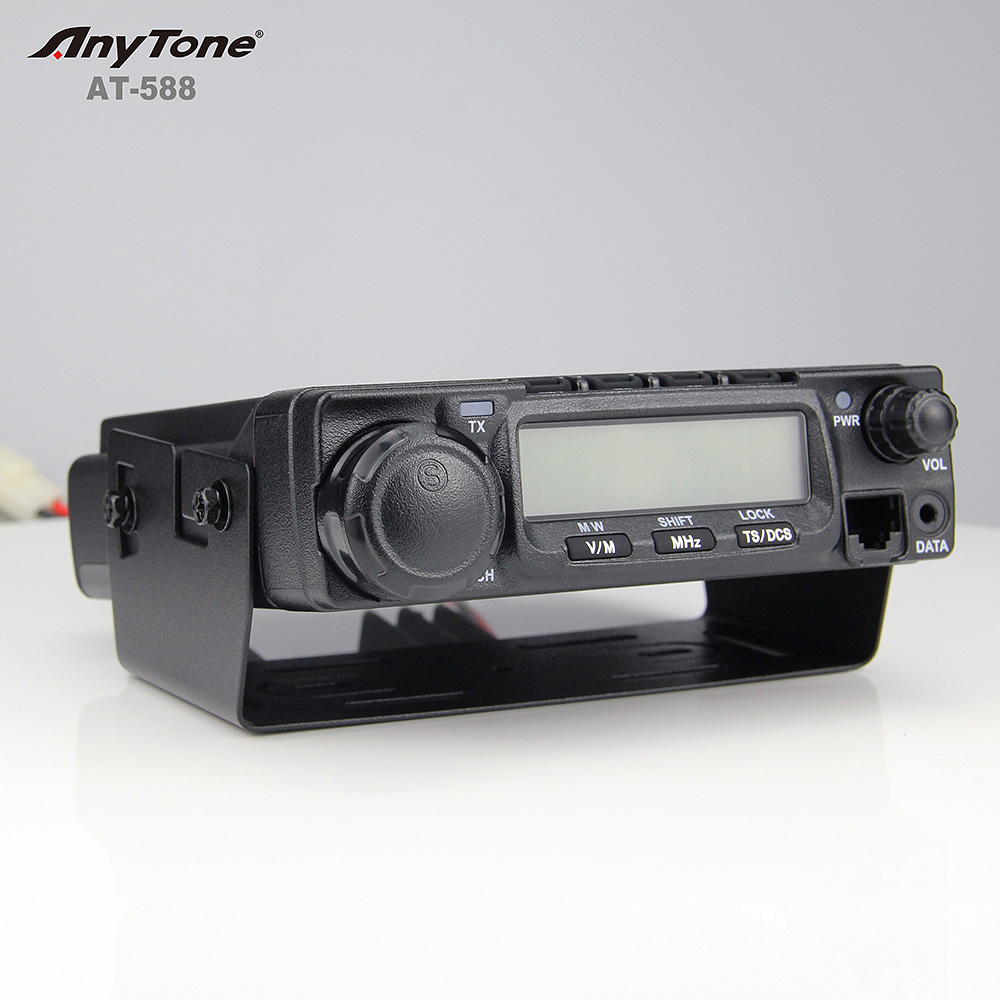

MODEL NO.:   AT-588 Single Band VHF 136-174 Mhz

Frequency:

136~173.995MHz / 400-490Mhz (Normal)
440-512Mhz/27-43MHz/220~260MHz etc.
(ODM Project)

Function:
Output Power:60W(VHF),45W(UHF)/25W/10W

100programmable memorized channels+Call channel, the channels can be  marked with letters and digits

CTCSS/DCS/5-Tone decodes and encodes

Four different single-tone pulse frequencies

CTCSS/DCS scan

Compander to reduce noise

Theft alarm

ANI function(DTMF/ANI,5Tone/ANI) PTT ID.

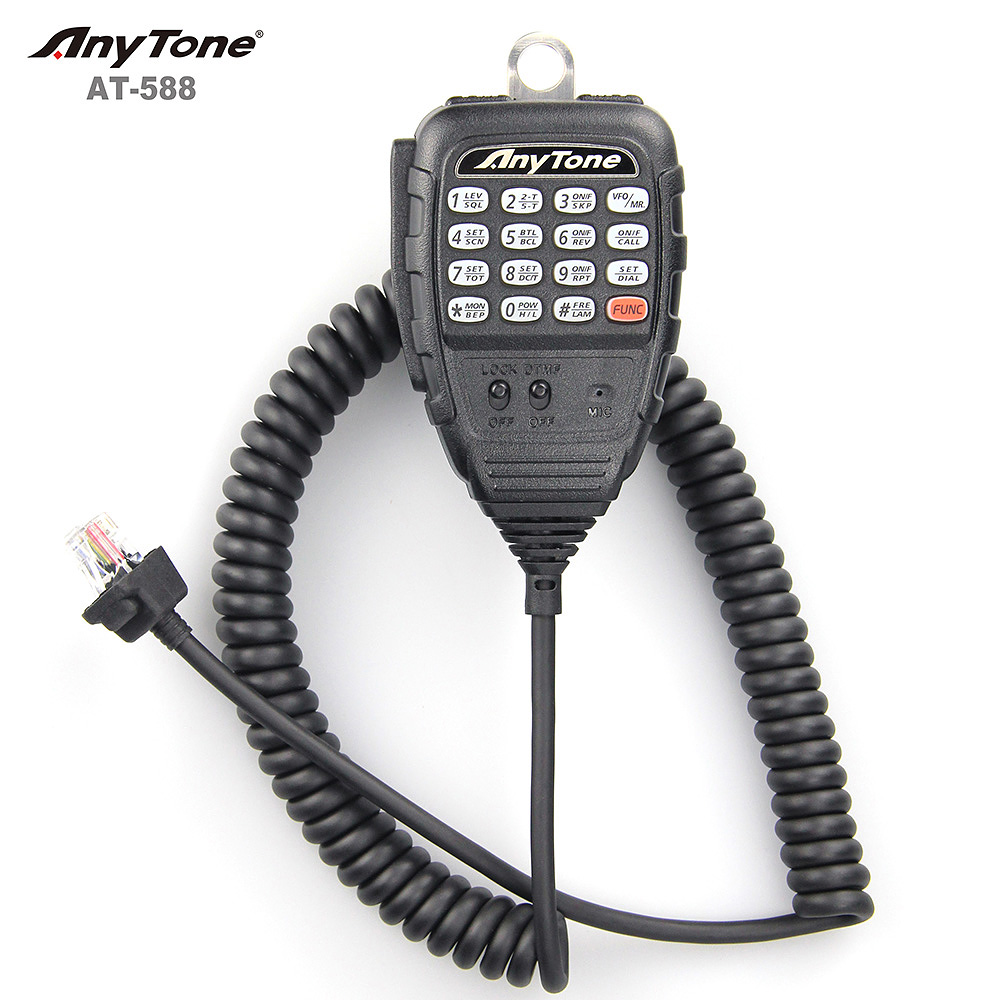

QHM-03 multifunctional microphone with DTMF

Scramble function(option)

Accessories:
Microphone(with DTMF keypad)
Mobile installing bracket

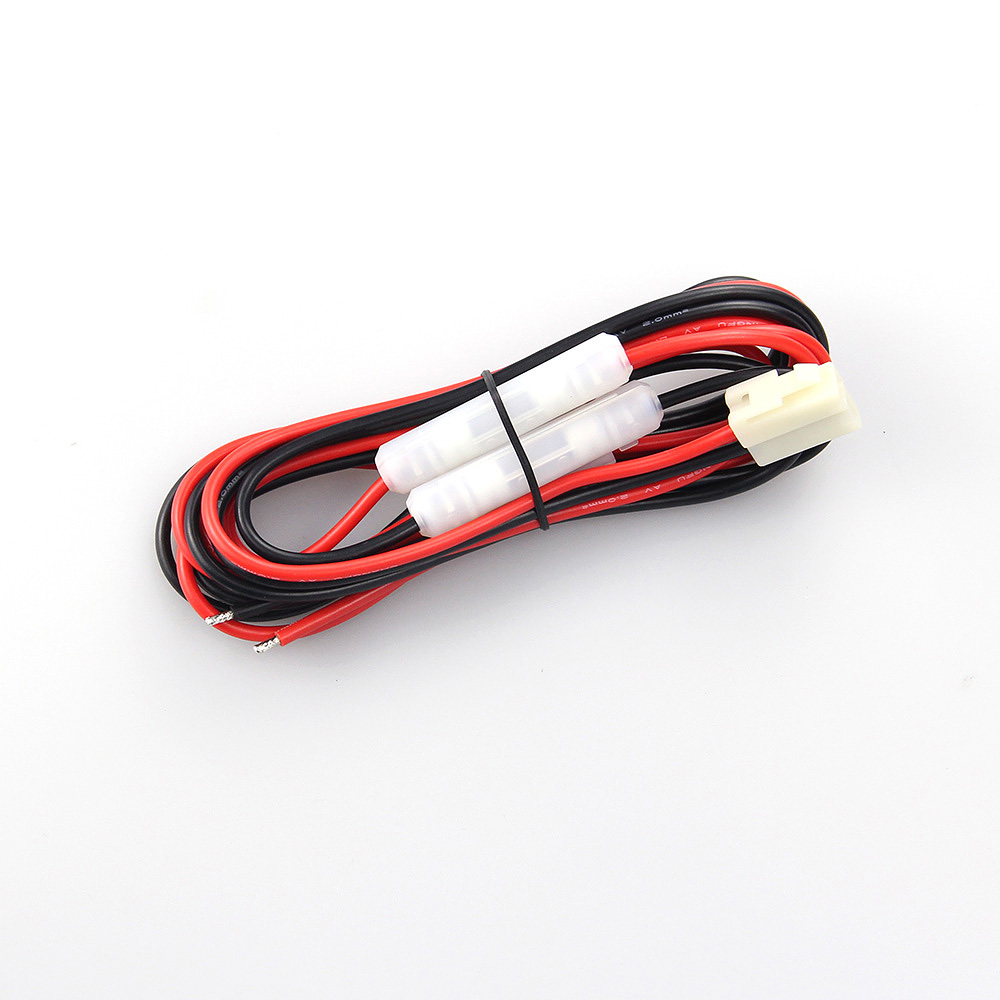

DC power cable with fuse holder
Hardware kits for bracket

Desktop Mic(Option)

AT-588 SPECIFICATION

General
Frequency Range		VHF: 136-174MHz   245-245.9875MHz (220~260MHz) UHF: 400~490MHz
Number of Channels		200 channels
Channel Spacing		25K (Wide Band)  20K(Middle Band)  12.5K (Narrow band)
Phase-locked Step		5KHz,6.25KHz,8.33KHz,10KHz,12.5KHz,15KHz,  20KHz,25KHz,30KHz,50KHz
Operating Voltage		13.8V  DC ±15%
Squelch		Carrier/CTCSS/DCS/5Tone/2Tone/DTMF
Frequency Stability		±2.5ppm
Operating Temperature		-20°C~+60°C

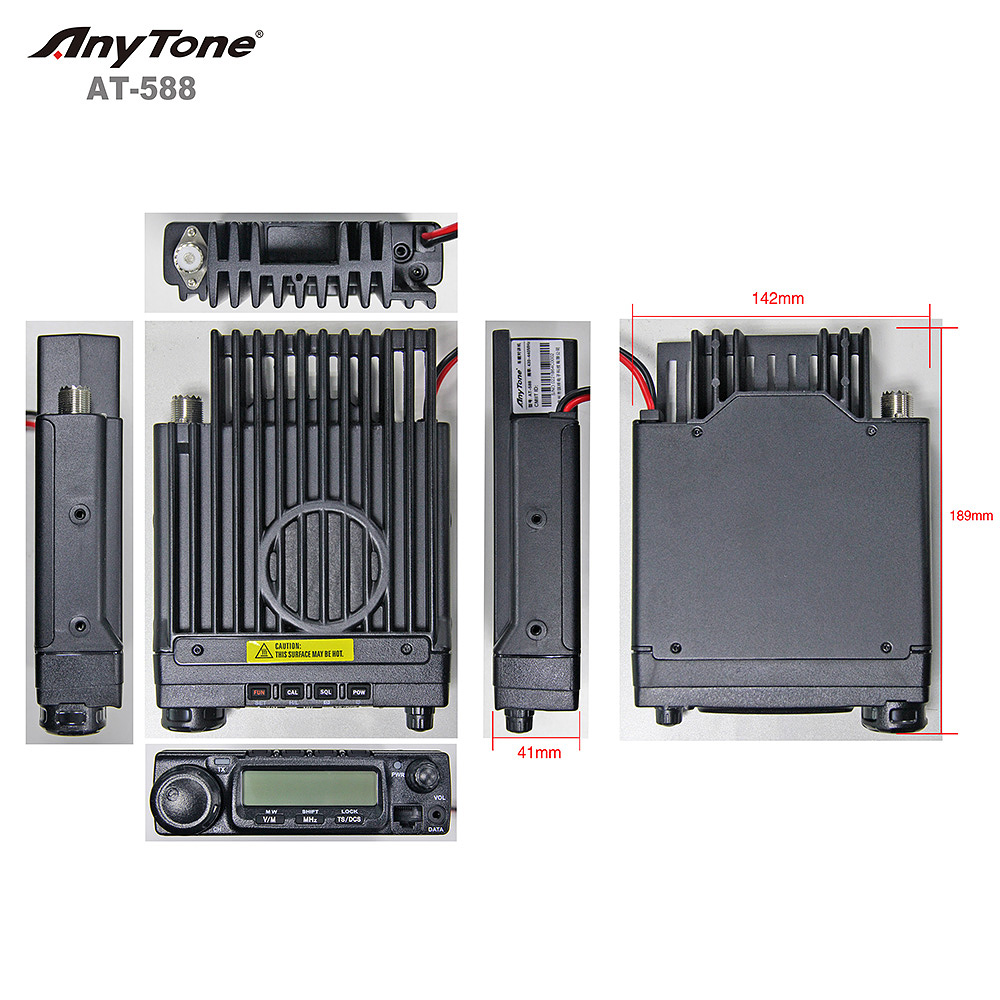

Dimensions(WxHxD)		145 (W) x 47 (H) x 190 (L)mm
Weight		about 1.2Kg
Receiver (ETSI EN 300 086 standard testing )
	Wide band		Narrow band
Sensitivity (12dB Sinad)	≤0.25μV		≤0.35μV
Adjacent Channel Selectivity	≥70dB		≥60dB
Intermodulation	≥65dB		≥60dB
Spurious Rejection	≥70dB		≥70dB
Audio Response	+1~-3dB(0.3~3KHz)		+1~-3dB(0.3~2.55KHz)
Hum & Noise	≥45dB		≥40dB
Audio distortion	≤5%
Audio power output	≥2W@10%
Transmitter (ETSI EN 300 086 standard testing )
	Wide band		Narrow band
Power Output	60W/25W/10W(VHF)		45W/25W/10W(UHF)
Modulation	16KΦF3E		11KΦF3E
Adjacent Channel Power	≥70dB		≥60dB
Hum & Noise	≥40dB		≥36dB
Spurious Emission	≥60dB		≥60dB
Audio Response	+1~-3dB(0.3~3KHz)		+1~-3dB(0.3~2.55KHz)
Audio Distortion	≤5%

Each Set PACKAGE CONTAIN

• 1x ANYTONE AT-588 Mobile VHF Radio
• 1x Microphone
• 1x Mobile Mounting Bracket
• 1x DC Power Cable

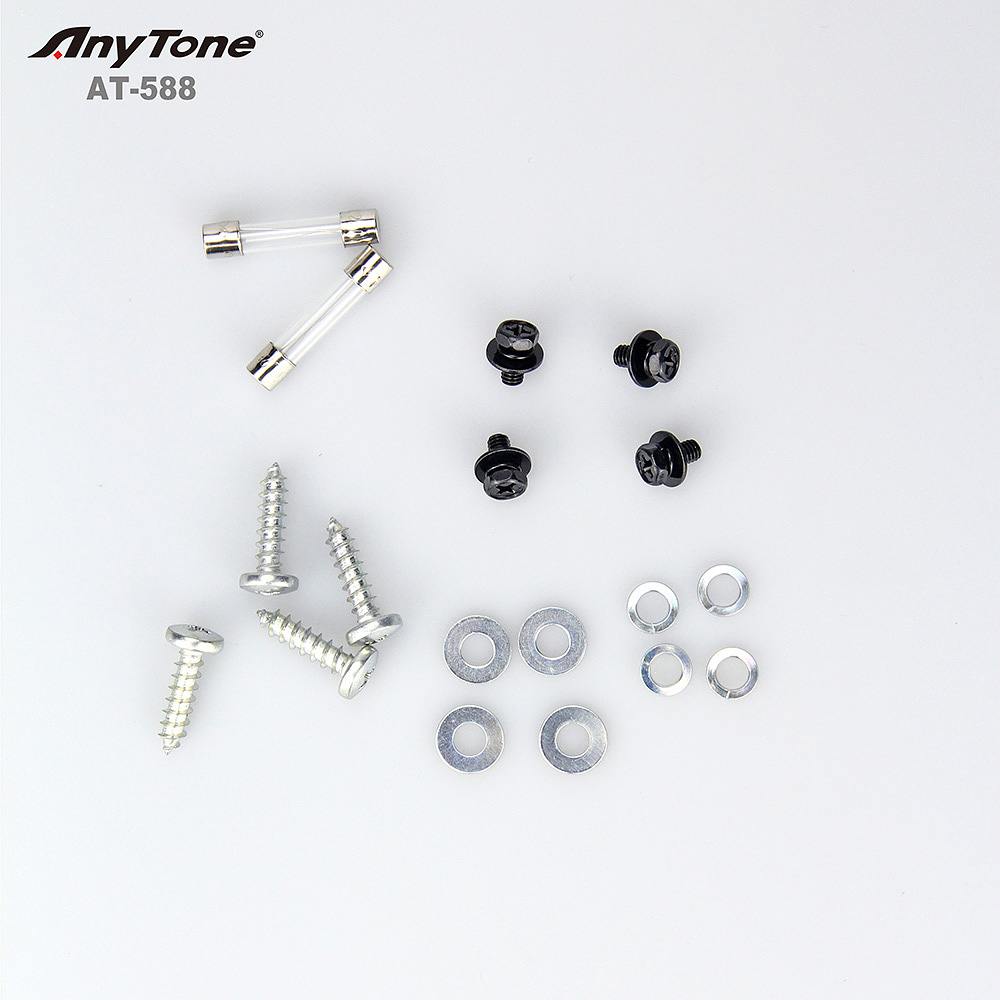

• 1x Screws, S-Washer,Spare Fuses pack
• 1x English Manual
