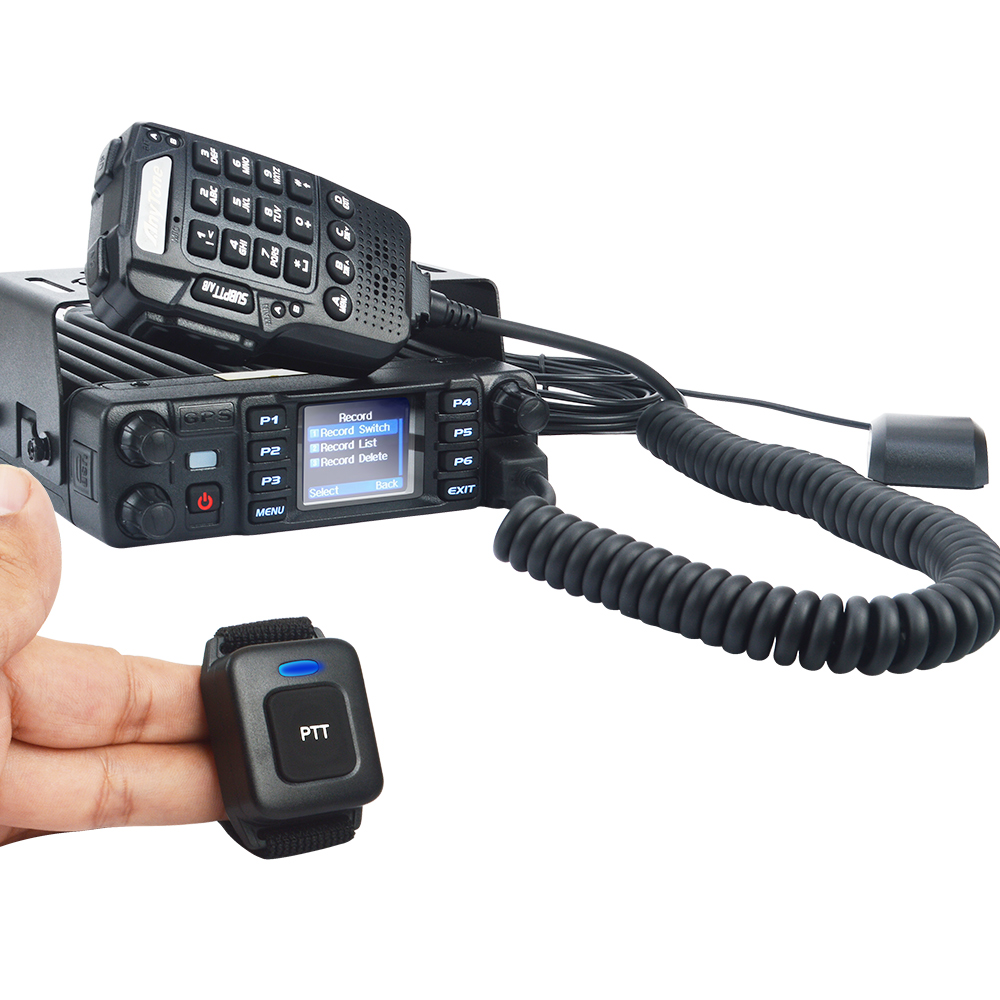

Anytone AT-D578UV PRO Mobile Radio GPS Bluetooth with Wireless PTT switch


Anytone AT-D578UV PRO Mobile Radio GPS Bluetooth with Wireless PTT switch


& Free Shipping
Guaranteed Safe Checkout

Anytone  AT-D578UV PRO Bluetooth-Comptabitle Mobile radiodual band 4000CH 55W digital DMR & Analog mobile radio VHF UHF with GPS,APRS,Bluetooth wireless PTT switch,Voice record,usb programming cable for Ham Amateur mobile car radio

The AnyTone AT-D578UV PRO is a true dual band radio for DMR radio systems, compatible with MOTOTRBO Tier 1 and 2. Traditional FM is of course, equally supported.

In contrast to many other DMR radios, the 578 offers real VFO operations, which makes it much more suitable for amateur radio

4000 memory channels, 10,000 talk groups, 200,000 digital contacts.

The AT-D578UVPRO is a fantastic mobile radio with the same functionalities as an “878UV HT but with more power in a mobile case”. Including all the well-known functions like APRS in FM (TX wise) digital roaming, and the Bluetooth option.

The AT-D578UVPRO now offers the possibility to receive DMR and analog channels at the same time.  Of course, you can receive two analog channels as well. For easy setting, each of the two bands has its own volume control, which is assigned to one VFO each.

Main Features & Functions:

136-174MHz & 400-480MHz

DMR Digital & Analog two working mode



Freq. Step:2.5/5/6.25/10/12.5/20/25/30/50KHz


FM Radio

Cross Band Repeater

Weather Alarm

Digital SMS message

DMR dual time Slot with color code

Digital & Analog dual working mode mobile transceiver

GPS positioning

APRS Location Reporting

Built-in Bluetooth module

With Bluetooth wireless PTT switch

Voice Record




Frequency Range Dual Band: VHF 136-174MHz & UHF 400-480MHz
Channel Capacity 4000 channels
Channel Spacing 25KHz (Wide Band),12.5KHz (Narrow Band)
Phase-locked Step 5KHz,6.25KHz
Operating Voltage 13.8V DC ±15%
Frequency Stability ±2.5ppm
Power Supply Current Requirement (mini) 15 Amps
Operating Temperature -20°C ~+60°C
Size 188x141x40mm(radio only)
Weight 1.04kg (accessories not included)
Receiving Part
Wide Band Narrow Band
Sensitivity (12dB SINAD) ≤0.25µV ≤0.35µV
Digital Sensitivity 0.3Uv/-177.4dBm (BER 5%)

0.7UV/-110dBm(BER 1%)

Adjacent Channel Selectivity ≥70dB ≥60dB
Spurious Emission ≤-57dB ≤-57dB
Spurious Rejection ≥70dB ≥70dB
Blocking 84dB
Audio power output ≥45dB ≥40dB
Audio Distortion ≤5%
Audio Power Output 2W/8Ω
Transmitting Part
Wide band Narrow band
Power Output Turbo 55W at 144-148MHz

40W at 430-440MHz

High UHF/VHF 25W
Middle UHF/VHF 10W
Modulation ±5.0KHz 25KHz ±2.5KHz 12.5KHz
Adjacent Channel Power ≥70dB ≥60dB
Hum & Noise ≥40dB ≥36dB
Spurious Emission ≤-36dBm ≤-36dBm
4FSK Digital Modulation 12.5KHz (data) 7K60FXD 12.5KHz (data+voice) 7K60FXE
Audio Disortion ≤5%
Error rate ≤3%


Package Contains:

1 x ANYTONE AT-D578UV PRO dual band radio body

1 x Microphone

1 x DC Power Cable with Fuse Holder

1 x USB programming CABLE

1 x Mobile Mounting Bracket

1 x GPS Antenna with 3 meter cable

1 x Wireless PTT switch

1 x USB charging cable for Bluetooth PTT switch

1 x Velcro

2x spare fuses

8 x fixing screws

1 x English Use Manual



Standard Package, Wireless PTT switch
