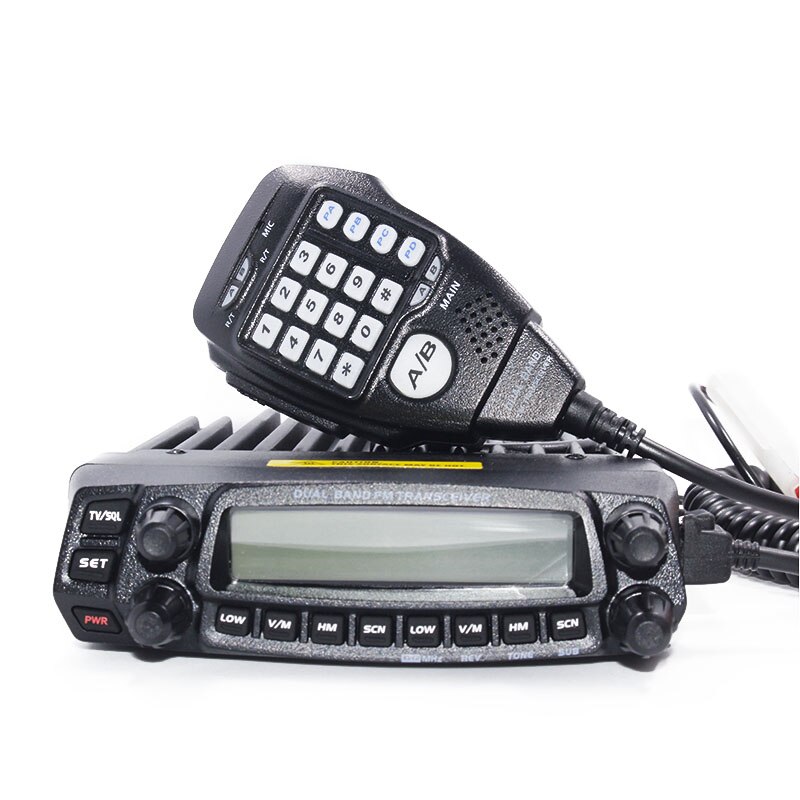

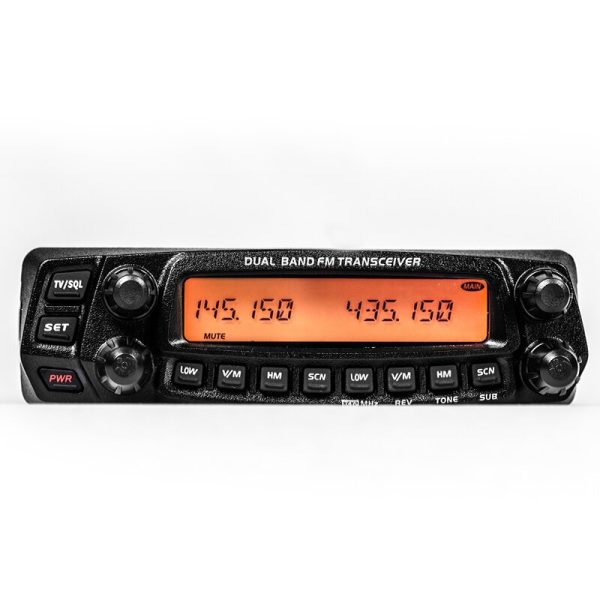

ANYTONE AT-5888UV Mobile Radio FM Transceiver VHF UHF 50W Repeater Compander Scramble Long Distance Wireless Communication
Frequency:
Dual Band Freqency Range: RX:VHF1:136~174MHz, VHF2:220~260MHz, UHF2:350~390MHz,UHF3:400~520MHz 108~134MHz(Airband) TX:VHF1:136~174MHz,UHF2:400~490MHz
Functions:
1. Working Mode: Full duplex on UU,UV,VV. UV or VU as repeater mode.
2. Dual Receive: Consist with A & B band; Dual Watch
3. Power:VHF1:60W/25W/10W/5W VHF2:10W/5W UHF3:45W/25W/10W/5W, High/Mid/Low Power Switch
4. CTCSS + DCS + DTMF + 2Tone/5Tone encode and decode.
5. Bandwidth: 12.5KHz/25KHz
6. VOX Function.
7. Compander.
8. Scramble function (9groups fixed +2groups be defined by user).
9. Channel Step: 2.5/5/6.25/10/12.5/15/20/25/50KHz.
10. ANI function (DTMF/ANI, 5-Tone/ANI)/PTT ID.
11. Squelch level Setup
12. Emergency Alarm
13. Channel/Frequency Scan, Channel Scan Skip, Channel Edit, Scan range Limit
14. VFO Band lockout
15. Keypad Lockout
16. TX OFF (PTT Lockout)
17. Busy Channel Lockout
18. Sub band mute setup
19. TOT (Time-out timer)
20. LCD backlight adajustment
21. Keypad backlight brightness adajustment
22. AM Function
23. Software programmable
Specification
|
GENERAL
|
|||
|
Frequency Range
|
TX: 144~146MHz (EXP:136~174MHz) |
||
| 430~440MHz (EXP:400~490MHz) | |||
| RX: 108~180MHz (AM/FM) | |||
|
220~260MHz (FM) 400~490MHz (FM)
|
|||
|
350~399.995MHz(FM)
|
|||
|
Number of Channels
|
758 channels
|
||
|
Channel Spacing
|
25K (Wide Band) |
||
| 20K(Middle Band) | |||
|
12.5K (Narrow band)
|
|||
|
Phase-locked Step
|
2.5KHz,5KHz,6.25KHz,10KHz, 12.5KHz,15KHz,20KHz,25KHz, 30KHz,50KHz
|
||
|
Operating Voltage
|
13.8V DC ±15%
|
||
|
Squelch
|
Carrier/CTCSS/DCS/5Tone/2Tone/DTMF
|
||
|
Frequency Stability
|
±2.5ppm
|
||
|
Dimensions
|
139(W)x40(H)x212(D)mm
|
||
|
Weight
|
about 1.2Kg
|
||
|
Operating Temperature Range
|
-20℃ to +60℃
|
||
|
RX/TX:144~146MHz,430~440MHz
|
|||
|
Receiver (ETSI EN 301 783)
|
|||
|
Wide band
|
Narrow band
|
||
|
Sensitivity (12dB Sinad)
|
≤0.25μV
|
≤0.35μV
|
|
|
Adjacent Channel Selectivity
|
≥70dB
|
≥60dB
|
|
|
Audio Response
|
+1~-3dB(0.3~3KHz)
|
+1~-3dB(0.3~2.55KHz)
|
|
|
Hum & Noise
|
≥45dB
|
≥40dB
|
|
|
Audio distortion
|
≤5%
|
||
|
Audio power output
|
＞2W@10%
|
||
|
Transmitter (ETSI EN 301 783)
|
|||
|
Wide band
|
Narrow band
|
||
|
Power Output
|
50W/25W/10W/5W(VHF)
|
||
|
40W/25W/10W/5W(UHF)
|
|||
|
Modulation
|
16KΦF3E
|
11KΦF3E
|
|
|
Adjacent Channel Power
|
≥70dB
|
≥60dB
|
|
|
Hum & Noise
|
≥40dB
|
≥36dB
|
|
|
Spurious Emission
|
≥70dB
|
≥70dB
|
|
|
Audio Response
|
+1~-3dB(0.3~3KHz)
|
+1~-3dB(0.3~2.55KHz)
|
|
|
Audio Distortion
|
≤5%
|
||
