Citizen Band 27MHz 4/8W AM/FM CB Radio Shortwave HF Walkie-talkie 25.615-30.105MHz 10Meter Amateur Radio (Albrecht AE-6110)

How to Select Band ?

1. Press A/F keys and turn on the radio

2. Press UP or DN to select BAND desired.

3. Turn down and TURN ON again.

GENERAL

Modulation Mode: AM/FM

Frequency Range: 25.615 – 30.105Mhz

Input Voltage:13.8V

Dimensions:104*109*25mm

Weight:421g

Frequency control: PLL Synthesizer

Operating Temperature range:-20℃ to +50 ℃

Max: 0.3A

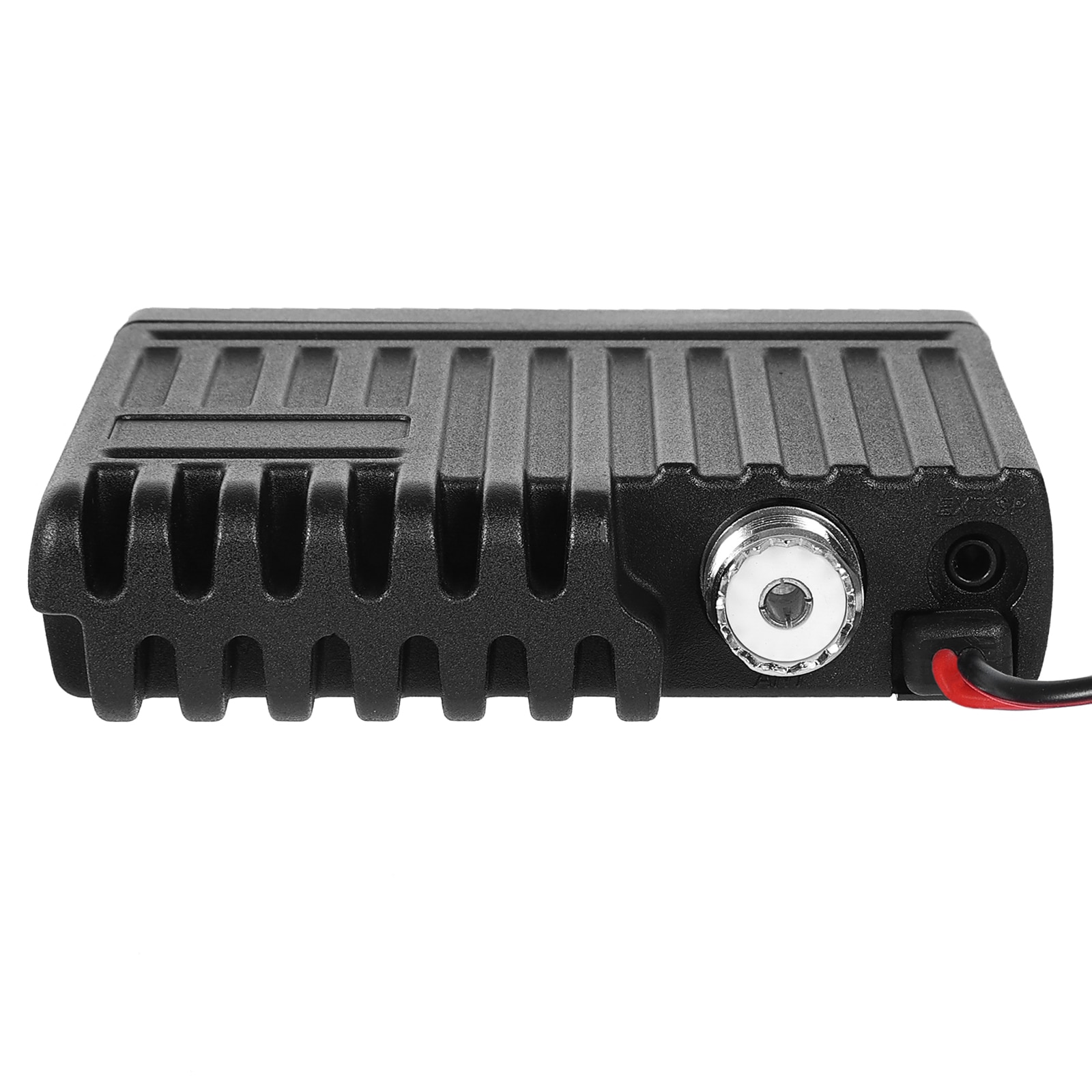

Antenna Connector:UHF,SO-239

TRANSMITTER

Power Output:4 Watts / 8Watts FM/AM

Frequency Response:300-3000Hz

Modulated signal distortion: inferior to 5%

Output Impedance:50 ohms

RECEIVER

Sensitivity: Less than 1uV for 10dB(S+N)/N

Image Rejection: 70dB

Adjacent Channel Rejection:60dB

Automatic Gain Control(AGC):Less than 10dB change in audio,output for inputs from 10 to 50000uV

Squelch: Less than 1uV

Audio Output power:1 Watts

Frequency Response:300-3000Hz
