BaoFeng DM-760 With GPS function Dual Band DMR Digital Radio

Sale!

BaoFeng DM-760 With GPS function Dual Band DMR Digital Radio

$89.00

& Free Shipping

Out of stock

Guaranteed Safe Checkout

New BaoFeng DM-760 With GPS function Dual Band 136-174&400-470mhz DMR Digital Radio Tier 1&2 Dual Time Slot Walkie Talkie

Main Features:

1. Support Tier 1&2  Dual Time Slot

2. DMR standard compable with AMBE+2TM VOCODEC

3. GPS Function: Support  longitude & latitude position.

4. Voice Record function: Built-in 1G memory card to record TX & RX voice continuously for 9 hours

5. Larger keyboard buttonthandm-860 dm-5r dm-1701 dm-1702,so that you can Easy to operate by your finger.

6. Larger full-Color Led Screen

7. Dual Band VHF 137-174MHz & UHF 400-470MHz

8. SMS fuction

Supports SMS ,text editing and draft in 64 characters in englsih,so that the text message calls can be sent when voice call is inconvenient.

9. Manual writing -frequency

10. High/Low power mode

11. Larger Capacity Li-ion Battery Equipped with a 2200mAh Li-ion battery



Specifications:

General
Frequency Range VHF:136-174MHz, UHF:400-470MHz (Dual Band)
Memory Channel

1024

Operating Voltage DC 7.4V
Frequency stability ±1.0ppm
Demission 136*62*36mm (no including the antenna)
Operating environment -30℃-+60℃
Weight Approach.274g(including the battery and antenna)
Transmitter
Output power High:5W Low:1W
Adjacent channel power ≤65dB ≤60dB
Output consumption Analog≤1.6A Digital≤0.9A
Audio response +1~3dB
Standby current consumption ≤0.18A
Digital Protocol ETSI-TS102 361-1,-2,-3
Modulation distortion ≤5%
Vocoder type AMBE+2 TM
FM/FM modulation: 16K¢F3E,25KHz 141K¢F3E,20KHz 11K¢F3E,12.5KHz
4FSK/4FSK digital modulation 12.5KHz for data:7K60FXD 12.5KHz for data and voice:7K60FXE
Signal-to-noise(wide/narrow) ≥45dB,25KHz  ≥40dB,12.5KHz
Antenna Port Spurious 9KHz-1GHz  ≤-36dBm  1GHz-12.75GHz:  ≤-30dBm
Receiver
Analog receive sensitivity -122dBm (12dB SINAD)
Digital receive sensitivity -122dBm (BER≤5%)
Audio power 1W
Audio distortion <10%
Signal imitation ≥70dB
Audio response +1~3dB
Receive current ≤380mA
Intermediation(wide/narrow) ≥62dB/≥58dB
Adjacent channel selectivity ≥65dB/≥60dB
PM noise ≥45dB,25KHz / ≥40dB,12.5KHz

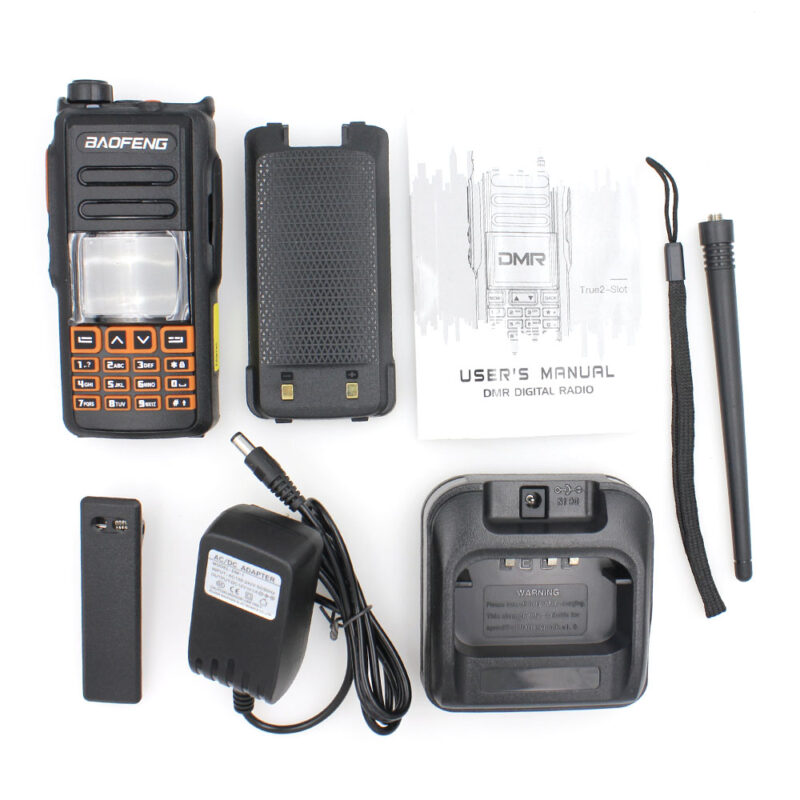

Package Contain:

1× BaoFeng DM-760

1× 2200mAh Li-ion Battery Pack

1× Charger Unit with AC Adapter

1× Antenna

1× Hand Strap

1× Belt Clip

1× Earpiece

1× User Manual

Weight 0.8 kg
Dimensions 300 × 250 × 100 cm
