Tips: If you need software, please contact us!
If you don’t have the writing frequency cable of this machine, please buy the combination with writing frequency cable. This machine needs to use the upgraded high-quality writing frequency cable to write frequency. The previous Baofeng analog machine’s old writing frequency with logo The line is not suitable for this machine, thank you!

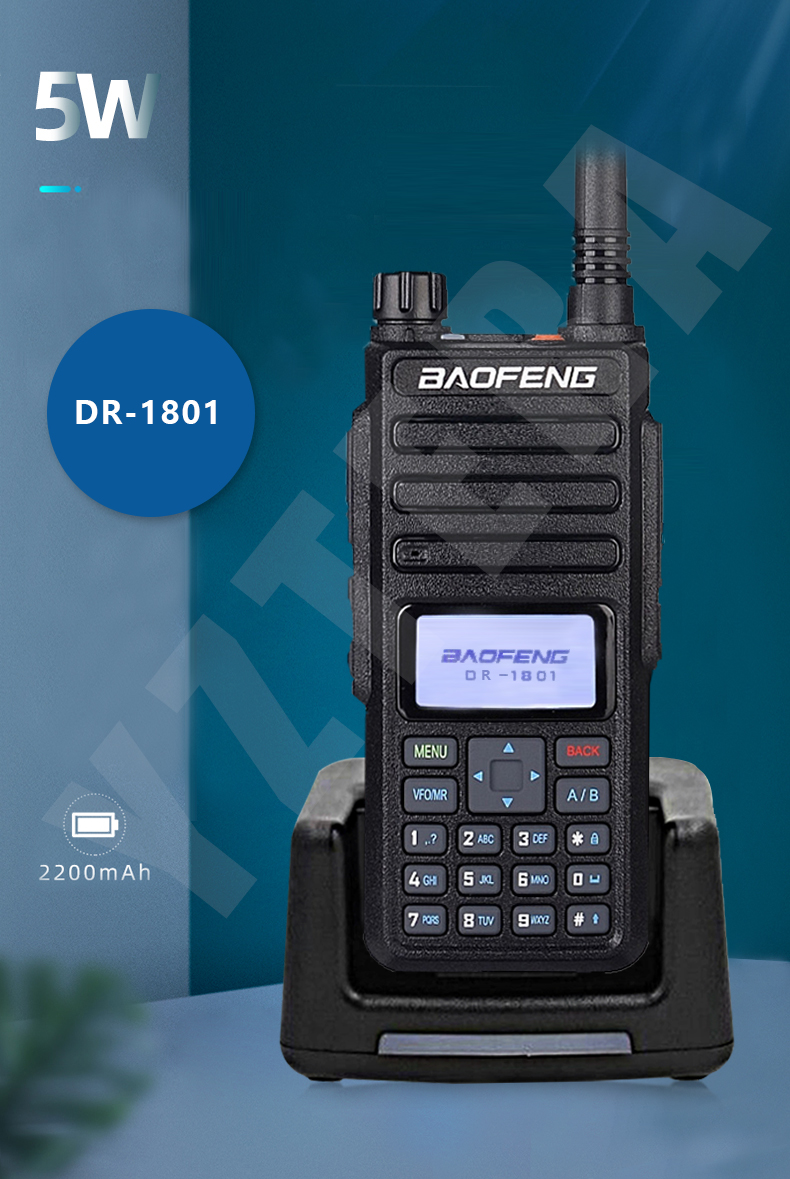

About Baofeng DR-1801UV:
TheDR-1801UV is the most cost-effective DMR HT on the market, with solid hardware construction and easy to use programming software. The greatest appeal of Baofeng’s DR-1801UV lies in its ability to deliver great DMR compatibility, crystal clear audio & great cost-effective. The light-weight portability, high capacity battery, and user-customizable design all make it the perfect radio for both experienced and new HAM users.
Strong digital function:
The DR-1801UV is DMO True2-slot DMR, it not only supports DMR protocol, including single call, group call and all call; it also supports two-way radio detection, call alert, remote monitoring, remote inhibit/kill and SMS Data transmission function. Digital alarm function and encryption are also available, encryption only supports calling between the DR-1801UV devices. In digital mode, you can monitor the color code, time slot, frequency and contact ID.
SMS Function:
This product supports the DMR data function, and allows sending and receiving messages; the maximum length of each message is 144 characters and less than 50 lines.
Most important features:
* Dual Band dual display dual standby
* DMR digital
* SMS function
* AMBE + 2TM Vocodec
* Emergency mode
Specification:
Frequency Range: VHF 136-174MHz & UHF 400-470MHz
Storage channel: 1024
Working voltage: DC 7.4V
Frequency Stability: ±1.0ppm
Operating Temperature: -30°c~60°c
Antenna Impedance: 50Ω
Battery Capacity: 2200mAh/16.28wh
Weight: about 274g (with battery and antenna)
Volume: 136*62*36mm (antenna 14cm not including)
Transmitting:
Output Power: 1W/5W
Digital: Tier i & ii
Adjacent Channel: ≤-65dB ≤-60dB
Modulation Distortion: ≤ 5%
Digital Protocol: ETSI-TS102 361-1,-2,-3
Vocoder type: AMBE + 2TM
Receiving:
Analog Sensitivity: -122dBm (12dB SINAD)
Digital Sensitivity: -120dBm (BER 5%)
Audio Power: 1W
Audio Distortion: <10%
Intermediation: 62dB / ≥ 58dB
Adjacent Channel Selectivity: ≥ 65dB / 60dB
Receive current: ≤ 380mA
PM Noise :≥ 45dB * 25KHz; ≥ 40dB * 12.5KHz
You will get:
1× BAOFENG DR-1801UV Digital Radio
1× 2200mAh Li-ion Battery Pack
1× Charger Unit with AC Adapter
1× Antenna
1× Hand Strap
1× Belt Clip
1× Earpiece
1× User Manual
