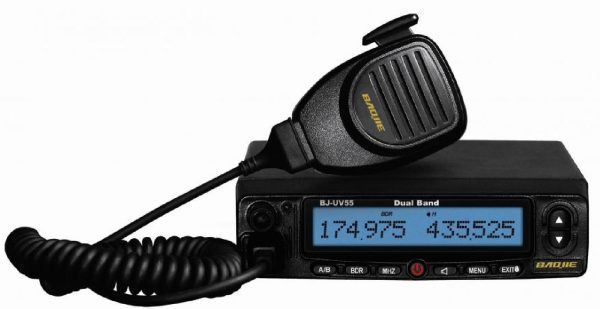

BaoJie BJ-UV55 Multiple Function VHF/UHF Dual Band Vehicle Transceiver LCD Display

Sale!

BaoJie BJ-UV55 Multiple Function VHF/UHF Dual Band Vehicle Transceiver LCD Display

$212.00

& Free Shipping

Availability: 999 in stock

Guaranteed Safe Checkout

BJ-UV55 Baojie Dual Band Vehicle Transceiver Mobile Radio VHF 136-174MHz & UHF:400-480MHz 45W/35W 128CH

Product Description:

1. DTMF Signaling
2. Multiple Scan Modes
3. CTCSS/ DCS

Main Functions:

Frequency range: 136-174/400-470MHz
Output Power: VHF:45W/UHF:35W
128 memory channels
Dual frequency display
DTMF signaling system
50 Groups CTCSS and 105 Groups DCS
Wide (25KHz) and Narrow (12.5KHz) selectable
Setting FM radio
All calls, group calls and selective calls
Inspection, Monitor, Stun and Kill
Communication through repeater
U/V inter-band communication
Distant urgency alarm
ANI code switch
Busy channel lockout
3 kinds of scan mode
Mute mode
DTMF sidetone switch
Weight About: 1200g
Dimension: 160*43*137mm (projection not included)
Transmitter
RF output power VHF 45W/UHF 35W
Spurious and harmonics 70dB
Modulation Wide: 16K0F3E    Narrow: 11K0F3E
FM Modulation Noise Wide: 45dB     Narrow: 40dB
Audio distortion Less than 3%
Frequency Stability ± 2.5ppm
Receiver
Sensitivity(12dB SINAD) Wide: 0.18uV    Narrow: 0.22 uV
Selectivity Wide: 70 dB Narrow: 60dB
Inter-modulation Wide: 70 dB Narrow: 60dB
Spurious response 75dB
Audio power output 4.0W/8Ω
Frequency Stability ± 2.5ppm
General
Frequency range 136-174MHZ    400-470MHZ
Memory channels 128
Bandwidth Wide: 25kHz    Narrow 12.5kHz
PLL channel stepping 5, 6.25kHz
Operating voltage 13.8VDC± 15%
Current drain Standby: Less than 0.4A   Receive: Less than 1.0A   Transmit: Less than 0.8A
Operate temperature range -30° C-+60° C
Weight 1200g
Dimensions 160*43*137mm

Package Contents:

  • 1 x BAOJIE BJ-UV55 VHF/UHF 136-174/400-470MHZ
  • 1 x Microphone
  • 1 x DC Power Cable
  • 1 x Mounting Bracket
  • 1 x Microphone Hanger
  • 1 x Screw Set
  • 1 x English Manual
Weight 1.2 kg
Dimensions 300 × 400 × 100 cm
