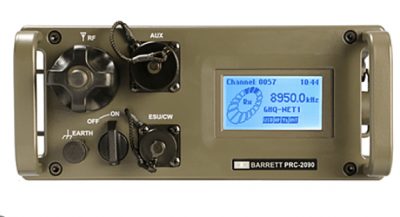

Barrett PRC-2090 HF Tactical Manpack Package
Rugged fully featured tactical HF transceiver
The Barrett PRC-2090 is a rugged fully featured tactical HF transceiver solution delivering proven field deployable secure communications with un-paralleled reliability. Designed for operation in the toughest of environments, the PRC-2090 complies with MIL-STD 810G for shock and vibration, is immersible to a depth of 1 m and can be operated in extremes of temperature from –40°C to +70°C.
The Barrett PRC-2090 HF Tactical Manpack Package is ideal for extended portable field operations providing the tactical user with effective, secure and comprehensive communications with remote sited command locations.

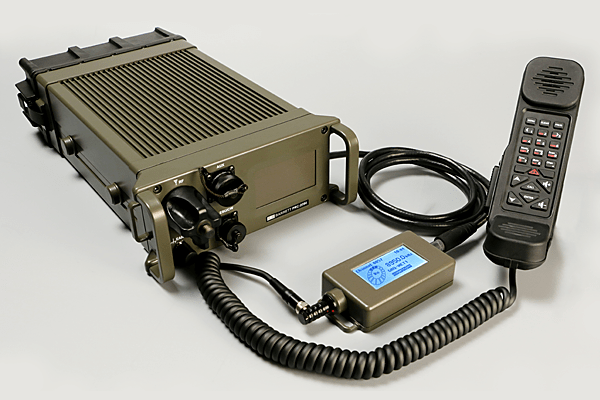

The standard package comprises:
- PRC-2090 HF Tactical transceiver

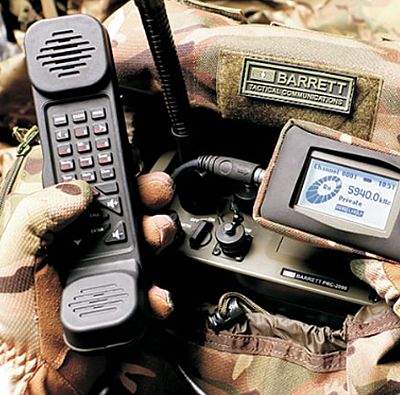

- Advanced tactical handset
- Battery pack – 16.8 V 10 Ah Lithium Ion
- Counterpoise earth kit – single wire
- AC/DC charger
- Long wire throw out antenna
- Framed backpack for manpack
- Collapsible whip with gooseneck
New software defined core
The new software defined core provides a much improved memory capacity and extends the life cycle and upgradability of the PRC-2090. The software based architecture enables the user to maintain their radio transceiver equipment with the latest transceiver software releases taking advantage of the latest product enhancements and features as they become available.

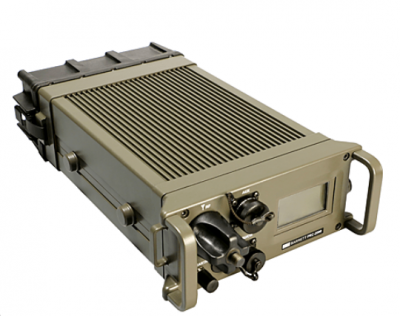

Lightweight and compact design
Using the latest lightweight alloys the PRC-2090 weighs 3.9 kg (5.2 kg with 10 Ah, quick change, Lithium Ion battery cartridge). Its small physical size, one of the smallest on the market makes it comfortable to wear and operate when deployed as a tactical manpack.
Advanced calling features
The PRC-2090 transceiver is fully interoperable with a number of advanced digital selective calling systems commonly used by many peacekeeping, non-government and tactical organisations.
The PRC-2090 tactical transceiver provides for multi-standard four and six digit Selective Call features including, telephone interconnect, SMS text, GPS tracking, status calling, point to point and/or multipoint Secure Call and remote transceiver disable capabilities.
- Advanced Digital Signal Processing (DSP)

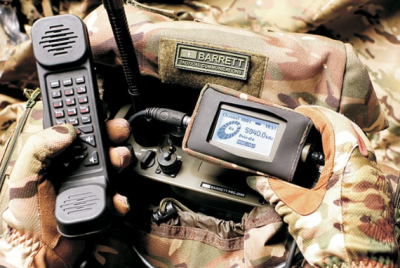

- Detachable display for remote extended control operation
- Secure Digital Voice options
- Fully immersible to 1m
- Rapid Docking System (RDS) for vehicle and base configuration (125 Watt)
1.6 MHz to 30 MHz Tx, 250 kHz to 30 MHZ Rx*
Up to 500 programmable channels
J3E (USB, LSB) – H2B (AM) – J2A (CW) – J2B (AFSK)
±0.5 ppm (±0.3 ppm optional)
-120 dBm (0.224 μV) for 10 dB SINAD – J3E
Mode pre-amp on
5 or 25 hops per second
Whip or long wire using internal automatic antenna tuner or 50 ohms connector
RF output power
30 W PEP, 10 W PEP (125 W PEP) when in vehicle or base docking station (voice duty cycle only)
2090 transceiver with 10 Ah Lithium Ion battery cartridge 5.22 kg
-30°C to +70°C humidity 95% relative, non condensing
