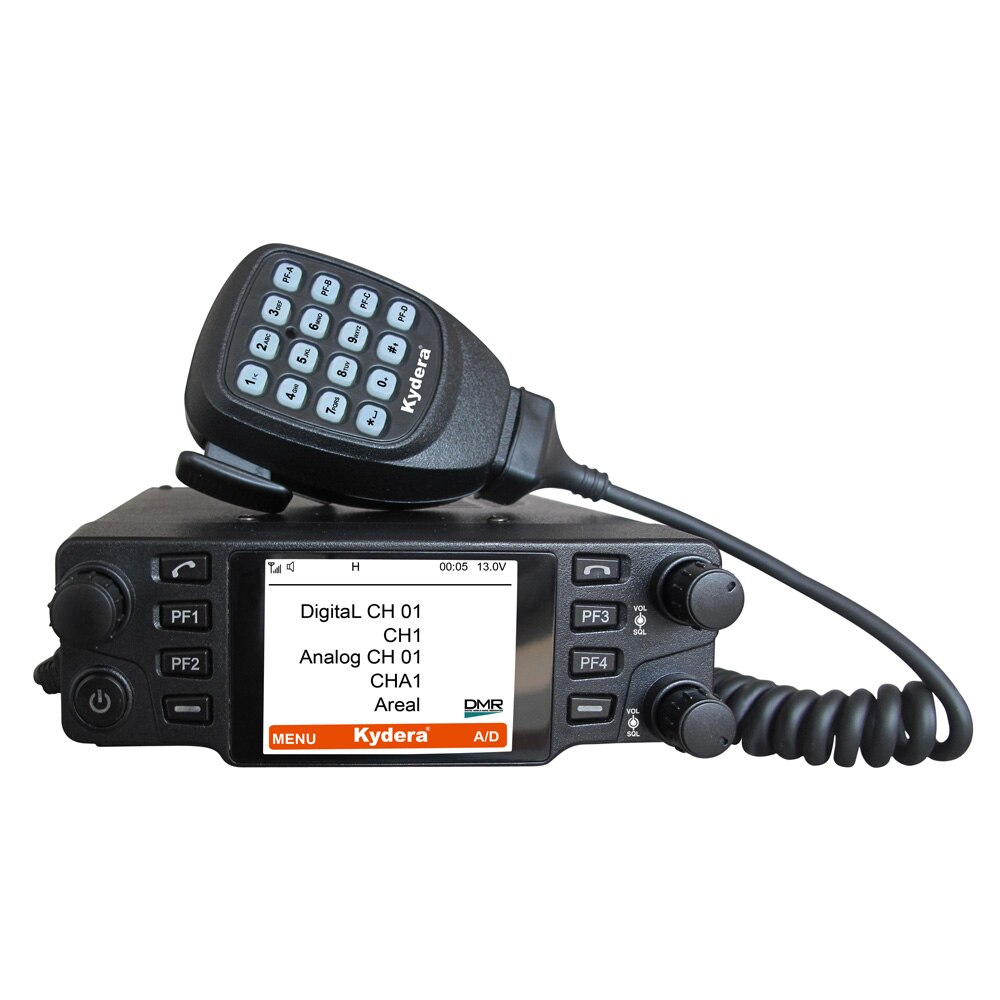

Kydera CDM-550H DMR UHF 400-430 440-480Mhz 40W Digital Car Radio Ham Transceiver
Specification:
|
Model |
CDM-550H |
|
|
Items |
UHF |
VHF |
|
Frequency Range |
400-480MHZ; 350-390MHZ |
136-174MHZ; 245MHZ |
|
Channel Zone |
16 |
|
|
Total Channel Capacity (512) |
256 (Analog) |
|
|
256 (Digital) |
||
|
Digital Mode |
TDMA T2(DMR) |
|
|
Temperature |
-20℃-+60℃ |
|
|
Measurement(H*W*D) |
140*175*46mm |
|
|
Voltage Rating |
DC: 13.8V |
|
Receiver:
|
Frequency |
400-480MHZ; 350-390MHZ |
136-174MHZ; 245MHZ |
|
Channel Spacing |
12.5kHz /25kHZ/6.25kHz |
|
|
Frequency Stability |
+ / – 1.5ppm |
|
|
Analog Sensitivity |
0.3uV / 0.25uV |
|
|
Digital Sensitivity (5% BER) |
0.3uV |
|
|
Intermediation |
65dB |
|
|
Adjacent Channel Selectivity |
60dB 12.5kHz / 65dB 25kHz |
|
|
Spurious Rejection |
65dB |
|
|
Rated Audio |
2w |
|
|
Audio Distortion Rated Audio |
3% |
|
|
FM Hum & Noise |
-40dB 12.5kHz / -45dB 25kHz |
|
|
Audio Response |
+1,-3dB |
|
|
Conducted /Radiated Emission |
-57dBm |
|
Transmitter:
|
Frequency |
400-480MHZ; 350-390MHZ |
136-174MHZ; 245MHZ |
|
|
Channel Spacing |
12.5kHz /25kHZ/6.25kHz |
||
|
Frequency Stability |
+ / – 1.5ppm |
||
|
Low Power |
L: 25W |
25W |
|
|
High Power |
H: 40W |
50W |
|
|
Modulation Restriction |
±2.5kHz 12.5kHz / ±5kHz 25kHz |
||
|
FM Hum & Noise |
-40dB 12.5kHz / -45dB 25kHz |
||
|
Conducted /Radiated Emission |
-36dBm<1GHz / -30dBm>1GHz |
||
|
Adjacent Channel Selectivity |
-60dB 12.5kHz / -65dB 25kHz |
||
|
Audio Response |
+1,-3dB |
||
|
Audio Distortion |
3% |
||
|
FM Modulation |
12.5kHz: 11K0F3E 25kHz: 16K0F3E |
||
|
4FSK Digital Modulation |
12.5kHz Data: 7K60F1D & 7K60FXD 12.5kHz Audio: 7K60F1E & 7K60FXE 12.5kHz Data & Audio: 7K60F1W |
||
|
Digital Vocoder |
AMBE+2™ |
||
|
Digital Agreement |
ETSI-TS102 361-1, -2, -3 |
||
GPS(Optional)
|
Precisely and standard designed for a long-term positioning( 95% value > could find 5 satellites rated -130dBm signal strength |
|
|
TTFF (time to first fix) cold start |
< 1 min |
|
TTFF (time to first fix) warm start |
< 10 s |
|
Horizontal Position Accuracy |
< 10 ms |
–By carton.
1*DMR Mobile car radio transceiver
1*DC Power Cable
1*Bracket
2*Bracket Screw
1*Programming cable(optional)
–Bulk order, ship by sea or send radios to your forwarder(free send to Xiamen,Jinjiang etc.); sample, usually ship by DHL,UPS,Fedex.
