TYT UV8000D New Cross Band Repeater VHF UHF TYT TH-UV8000D Amateur Radio 10W Long Range Walkie Talkie 10 KM for Hunting
Main Feature:
VHF:134-174MHz &UHF:400-520MHz
16 channels
Programming protection
VOX
CTCSS/DCS
Chinese and English voice prompt
Battery saving function
Hi/low power selective
Scan
COMP
Wide/ Narrow bandwidth selective
End-tone elimination
Emergency alert
Power protection
High/low voltage TX prohition
Low battery prompt
Specifications:
| Model | TH-UV8000D |
| Frequency Range | 136-174/400-520MHz |
| Channel capacity | 16 |
| Output power | 10 W |
| Operating Voltage | 7.2V |
| Antenna Impedance | 50 ohm |
| Working Temperature | -10ºC~+50ºC |
| Battery capacity | 3600 mAh |
| Color | Black |
| Dimension(Exclude antenna) | 132x59x36 mm |
| Weight(Include Battery) | 254 g |
| Feature | |
| CTCSS/DCS | 39 CTCSS/166DCS |
| Wide/narrow selection | 25kHz/12.5kHz |
| VOX function | Yes |
| CustomSide Buttons | Yes |
| Volume adjustment | Yes |
| Squelchlevel setting | Yes |
| TOT function | Yes |
| Scan function | Yes |
| Voice prompt (English or Chinese) | Yes |
| VoiceOn Off selection | Yes |
| Battery Saver function | Yes |
| Batteryvoltage indication | Yes |
| High/Lowpower selection | Yes |
| Voicecompression and expansion | Yes |
| Tailelimination function | Yes |
| BusyLock function | Yes |
| PC Programmable | Yes |
| Emergency alarm | Yes |
| Auto-whisper | Yes |
| Specification | |
| Sensitivity | <=0.2µV |
| Occupiedbroadband | <=16kHz |
| Channel Selectivity | >=65dB |
| Audio output power | >500mW |
| Inter modulation | >=55dB |
| Audio Distortion | <=5% |
| Modulation | 16kF¢3E |
| Currentaccepted | 220mA |
| Adjust thenoise | <-40dB |
| The maximumoffset frequency | <=±5kHz |
| Emission current | <=2600mA |
| Adjacent Channel Power | >=65dB |

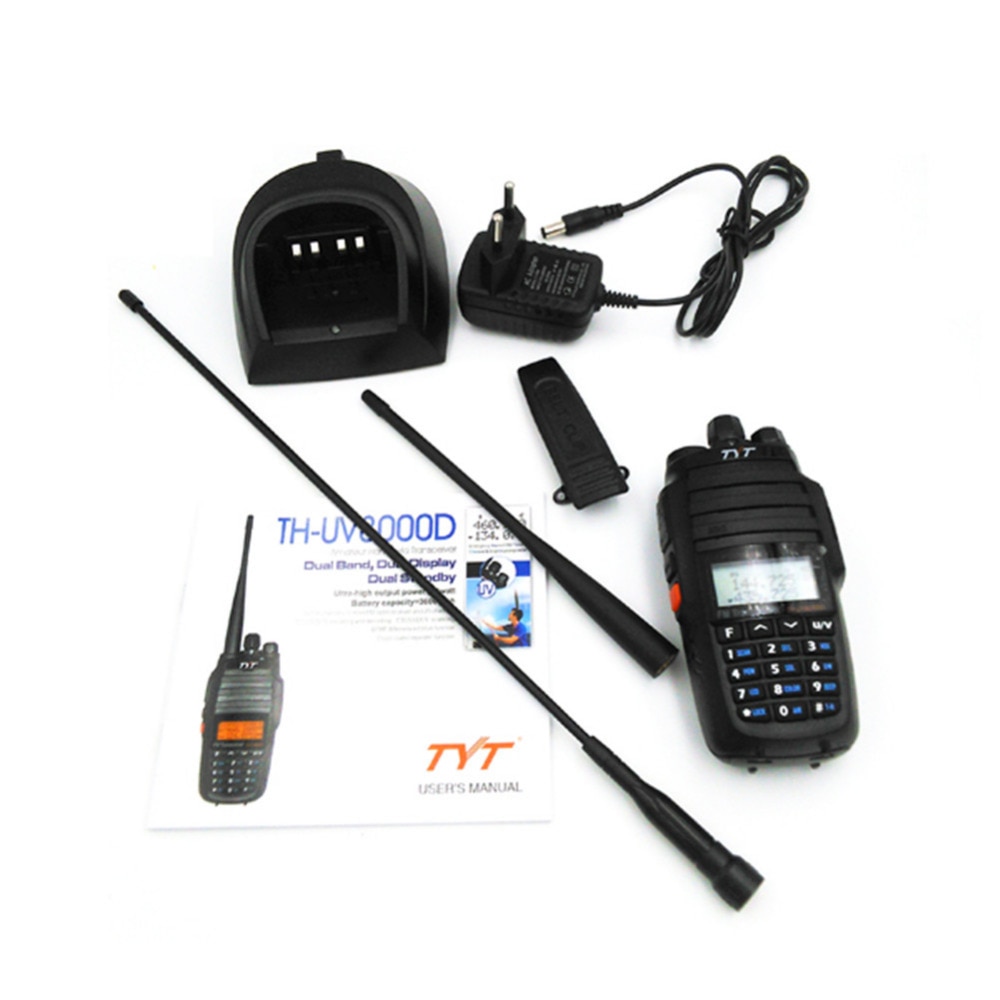

- 4x TYT UV8000D Portable Radio
- 8x Antennas
- 4 x Li-ion battery pack
- 4 x Charger
- 4 x Belt clip
- 4 x Lanyard
- 4 x User`s manul
