2MHz-2800MHz Portable SF103 Frequency Counter SF-103 For DMR Analog Radios


& Free Shipping
Guaranteed Safe Checkout

Portable SF103 Frequency Counter SF-103 2MHz-2800MHz CTCSS/DCS  Frequency Meter For DMR & Analog Handheld Transceiver
SF-103 2MHz-2800MHz Digital Frequency Meter Wide Range frequency Cheap SF103 Frequency counter.

 SF103 Description

SF103 Support test frequency from 2MHz-200MHz / 27MHz -2800MHz ,capable of measuring the parameters of the frequency of the continuous carrier signal walkie-talkies , with signal strength indicator.CTCSS/DCS testable for 144/430MHz,DMR Digital Signal Testable.

Main Features

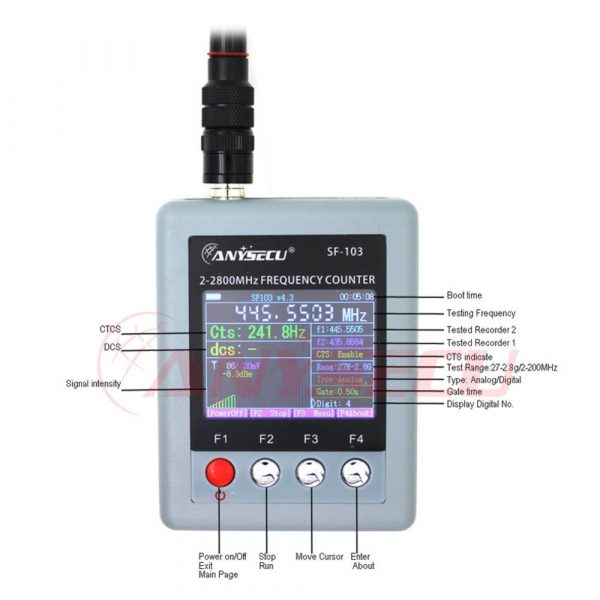

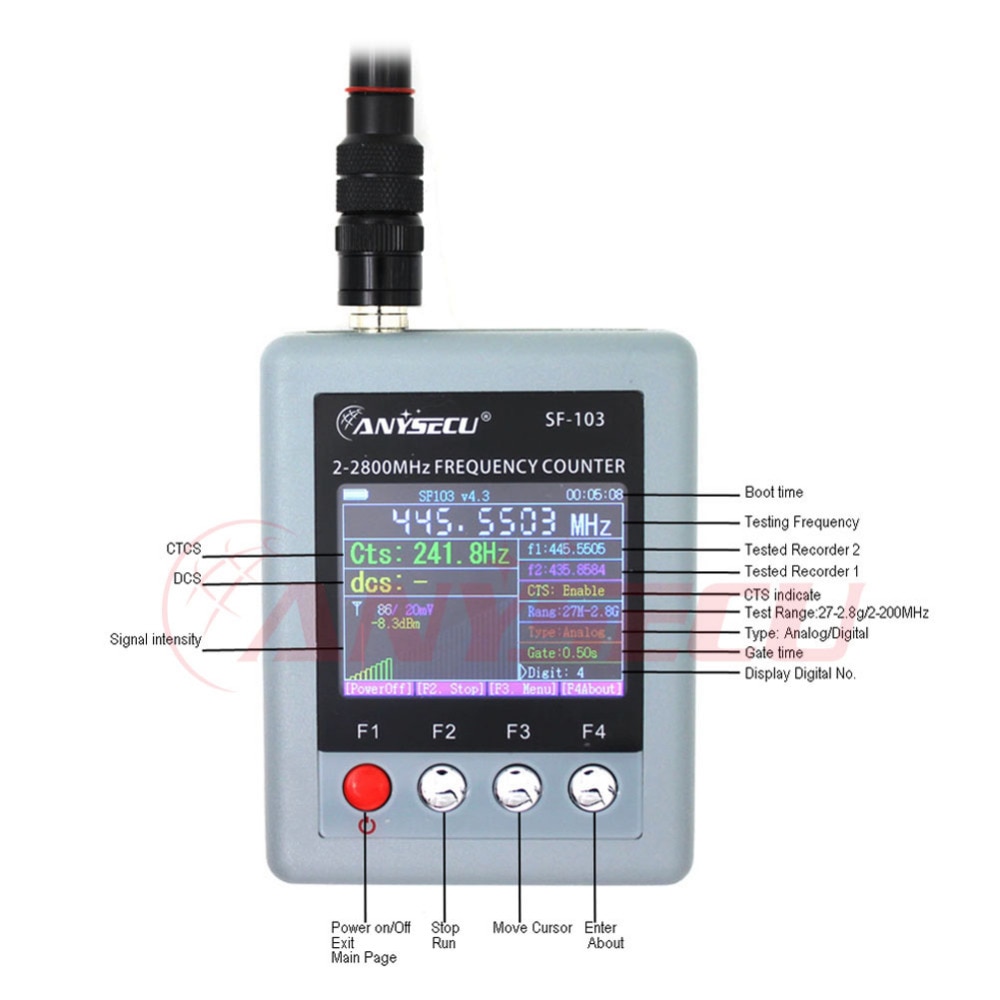

*TFT LCD320 x 240 pixels Color Display

*144/430MHz CTCSS/DCS Decoder

*LCD Dim level set

*Frequency Response time:0.2-0.5sec

*CTCSS/CDCSS Response time: >0.5-1sec

*Work by TCXO 2~2.5ppm

*Response time: 0.2s

*Build-in Li-ion battery

*Micro USB +5V Charge in

*4 buttons control

*Auto power off 1-9minutes

*Charging indicator

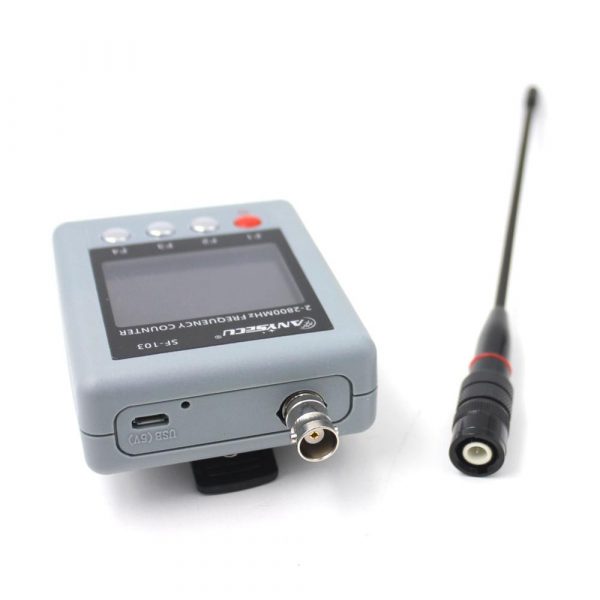

*Impedance input: 50 Ohm (BNC)

General Specification
Radio Signal Digital/Analog
Frequency Range 2MHz-200MHz / 27MHz -2800MHz

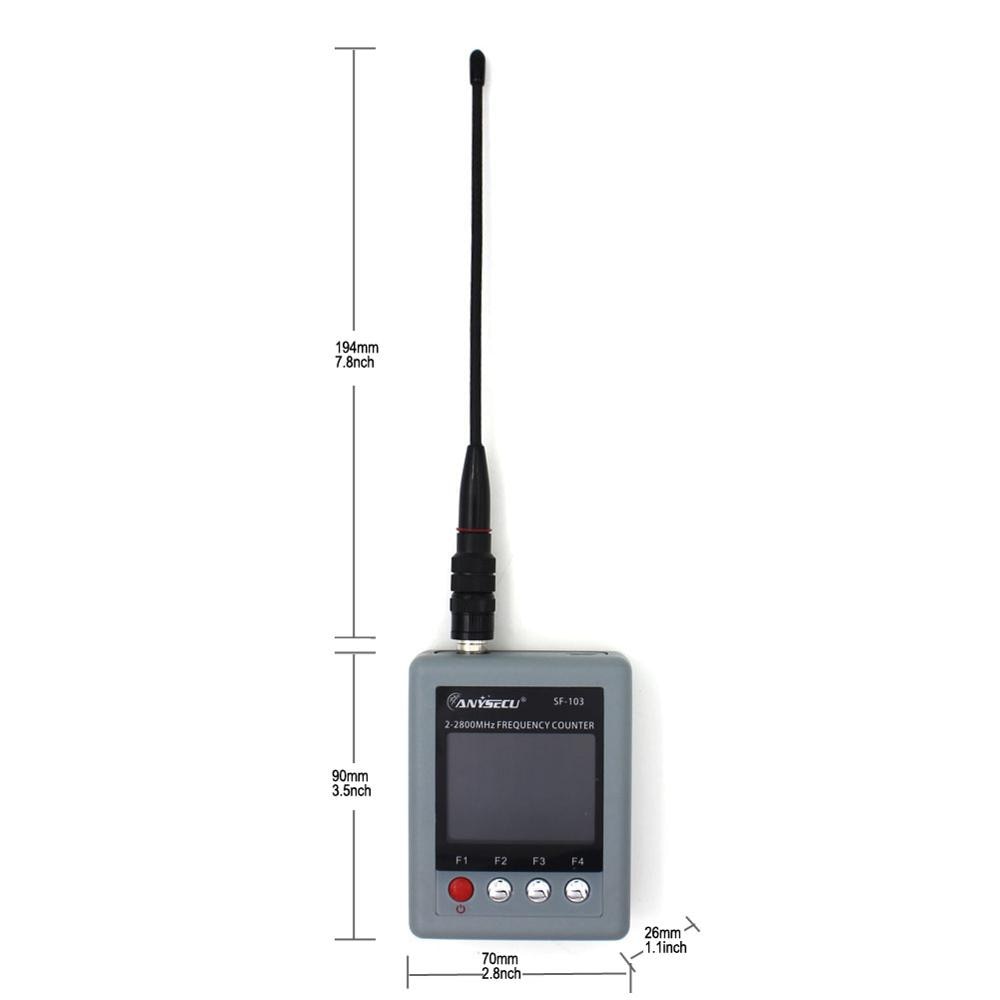

Dimensions(L*W*H) 70 x 30 x 90mm
Weight 113g
Li-ion Battery build-in 3.7V 1500mah
Warranty: 1 Year for Machine and 6 months for accessories

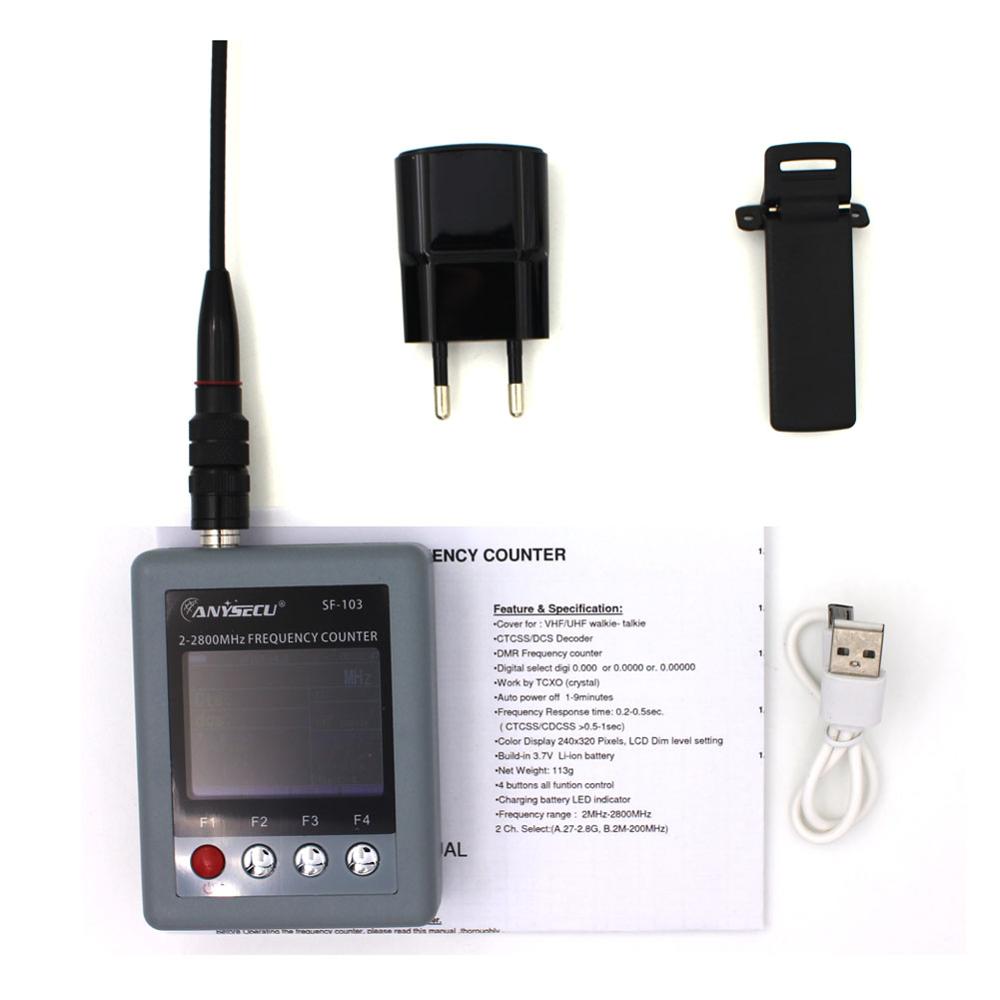

Package 1*SF103;1*Antenna;1*USB Charger;1*Belt Clip

Weight 1 kg
Dimensions 400 × 400 × 80 cm
