Mobile Radio Base station high quality Dual Band 25W car Walkie Talkie GM3188 for Motorola CM140 talkie walkie 20km range
GM3188 Motorola Two Way Radio
New Commercial Series Mobiles ( which includes the GM3188 ) are small in size and budget but built to last. The series comprises four models across 3 frequencies.
The entry-levelGM3188 model in the series – a compact 8 channel radio
Rugged
– Die-cast metal chassis
– Meet EU Directives (CE, R&TTE, Automotive Directive)
– All radios benefit from rigorous build quality – passing the US MIL 810 C/D/E and IP54 requirements, as well as its own 5 year accelerated life testing programme.
Compact
– One of the smallest mobiles available
– H 44mm x W 169mm x D 118mm
– Weighting approximately 1kg
Ease of use
Multi-function programmable buttons
Clearly arranged buttons
Copy Rx-to-Tx button – transfers RX parameters to the TX parameters
Installation Versatility
The Commercial Series mobile radios( which includes the GM3188 )are truly DIN mountable and offer a number of other mounting options.
To protect against theft, a removable slide mount allows regular, quick and easy removal of the radio when not in use. For added security, the keylock mount guards against unauthorised removal. A desktop tray with integrated speaker is also available for use in an office or control room.
Features:
- PL/DPL Codes
- Monitor
- High/Low Transmit Power settings
- Repeater Talk around
- Tight/Normal Squelch
- Priority Scan
- Nuisance Channel Delete
- Busy Channel Lockout
- Time-out-timer (15 to 180 seconds, or infinite)
- MDC Signalling
- PTT-ID encode
- Selectiveradioinhibit decode
- Emergency
- RadioCheck decode
- Quick-Call ll signaling
- Call Alert decode
- Selective Call decode
- DTMF Signalling
- PTT-ID encode
General Specifications | VHF | UHF | |
Frequency | 136-162MHz
146-174MHz |
403-440MHz
438-470MHz 465-495MHz |
490-527MHz |
Channel Capacity | 8 | ||
Power Output | 1-25W
25-45W |
1-25W
25-40W |
25W
25-40W |
Power Supply | 13.8 Vdc (11 Vdc – 16.8 Vdc) negative vehicle ground | ||
Channel Spacing | 12.5/20/25KHz | ||
Frequency Stability ( -30°C, + 60°C, +25°C Ref) | +/-2.5ppm | ||
Dimensions ( H * W * L ) | 44mm x 169mm x 118mm | ||
Weight | 1.01 Kg | ||
Operating temperature | – 30 to + 60°C | ||
Sealing | Passes rain and dust testing to IP54 | ||
Shock and Vibration | Meets MIL-STD 810-C,D&E and TIA/EIA 603 |
Receiver | VHF | UHF |
Sensitivity (12db Sinad) | 0.35uV (12.5KHz)
0.3uV (25KHz) |
|
Intermodulation | 65dB (12.5KHz)
75dB (25KHz) |
60dB (12.5KHz
70dB (25KHz) |
Adjacent Channel Selectivity | 65dB (12.5KHz)
75dB (25KHz) |
60dB (12.5KHz)
70dB (25KHz) |
Spurious Rejection | 75dB | 70dB |
Rated Audio ( extended audio with 4 ohm speaker) | 4W internal
13W external |
|
Audio Distortion @ Rated Audio | 3% typical | |
Hum and Noise | -40 dB (12.5KHz)
-45 dB (25KHz |
-35 dB (12.5KHz)
-40 dB (25KHz) |
Audio Response (300 to 3000Hz) | +1, -3dB | |
Conducted Spurious Emission | -57 dBm < 1GHz’
-47dBM > 1GH’z |
Transmitter | VHF | UHF |
Modulation Limiting | +/-2.5KHz (12.5KHz)
+/-4KHz (20KHz) +/-5KHz (25KHz) |
|
FM Hum & Noise | -40 dB (12.5KHz)
-45 dB (25KHz) |
-35 dB (12.5KHz)
-40 dB (25KHz) |
Conducted / Radiated Power | -36 dBm < 1GHz
-30 dBm > 1GHz |
|
Adjacent Channel Power | -60 dB (12.5KHz)
-70 dB (25KHz |
|
Audio Response (300 to 3000Hz) | +1, -3dB | |
Audio Distortion @ 1000Hz, 60% Rated Max. Deviation | 3% typical |

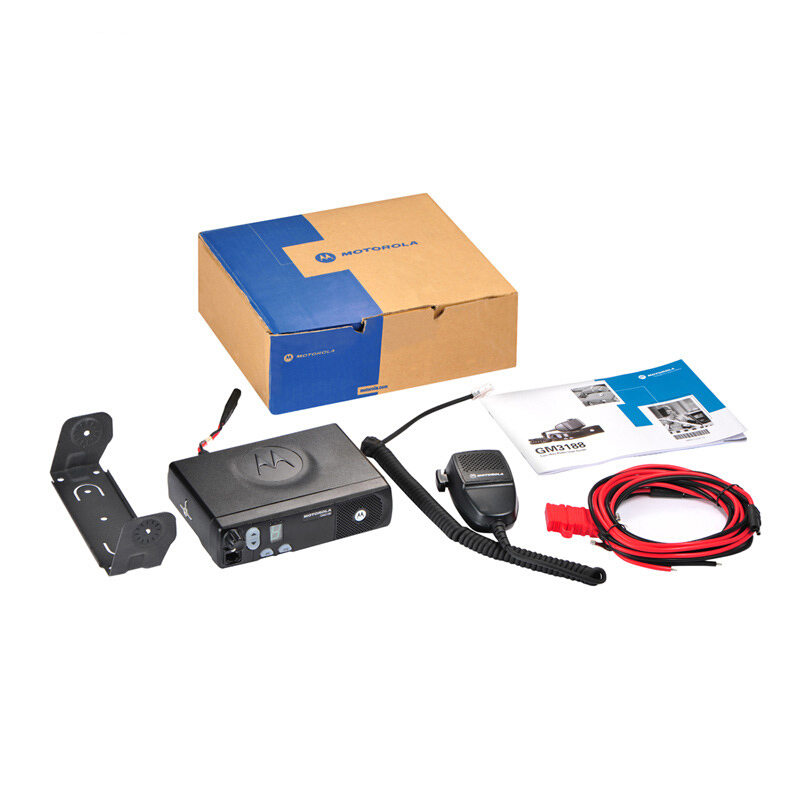

Package Included :
