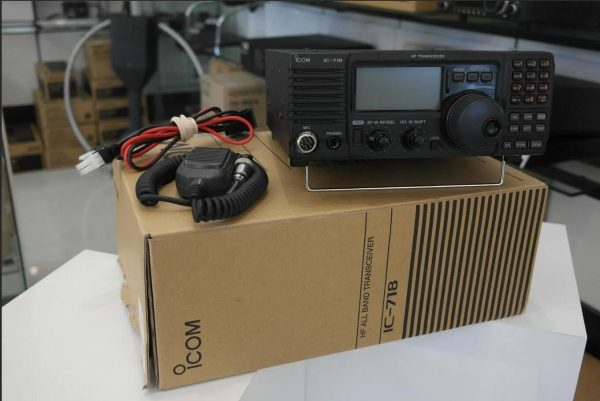

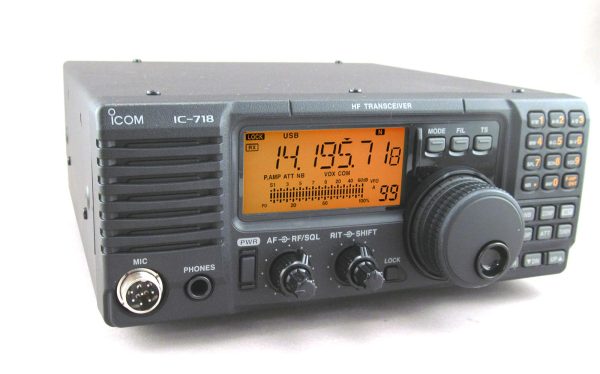

ICOM IC-718 Shortwave Radio HF All Band Transceiver Analog Walkie Talkie Relay Station 100-240V
Functions:
– RIT trim function reduces the frequency error
– IF Intermediate frequency conversion
– Multiple scanning methods
– Speech compression function increases the average power of microphone and reduces speech distortion
– RF gain control increase the reception sensitivity of weak signals and reduces the distortion caused by strong signals
– Adjustable noise suppression
– RF attenuator and preamplifier
– 101 storage channel
– Rich CW functional features
– Built-in keys for CW enthusiasts
– VOX voice controlled emission
– Variable filter selection
– Digital S/RF test instrument
– High frequency stability

Specification:
– Frequency range:
TX: 1.8, 3.5, 7, 10, 14, 18, 21, 24, 28MHz
RX: 30KHZ-29.9MHz
– Mode: LSB, USB, CW, RTTY, AM
– Maximum current consumption: 20A 13.8V DC
– Power requirement: 13.8V DC±15%
– Antenna connector: S0-239 (50ohm)
– Channel number: 101 (99 common, 2 scanning edge)
– Size: 240 x 95 x 239mm
– Weight: about 3.8kg

Transmission TX:
– Output power: SSB, CW, RTTY: 2-100W; AM: 2-35W
– Spurious emission: < -50dB
– Carrier suppression: >40dB
– Useless sideband: 600ohm
– Microphone connector: 8-core connector (600ohm)

Receiving specification:
– Selectivity: SSB, CW, RTTY: 2.1kHz/-6dB
4.5kHz/-60dB
AM: 6.0kHz/-6dB
20kHz/-40dB
– Spurious signal and image suppression: >70dB (1.8-29.999MHz)
– AF Power (10% distortion, 8ohm load): >2.0W
– External speaker connector: 2 core 3.5 (D) mm (1/8’’)/8ohm

Package Included:
– 1 x Host
– 1 x Cable
