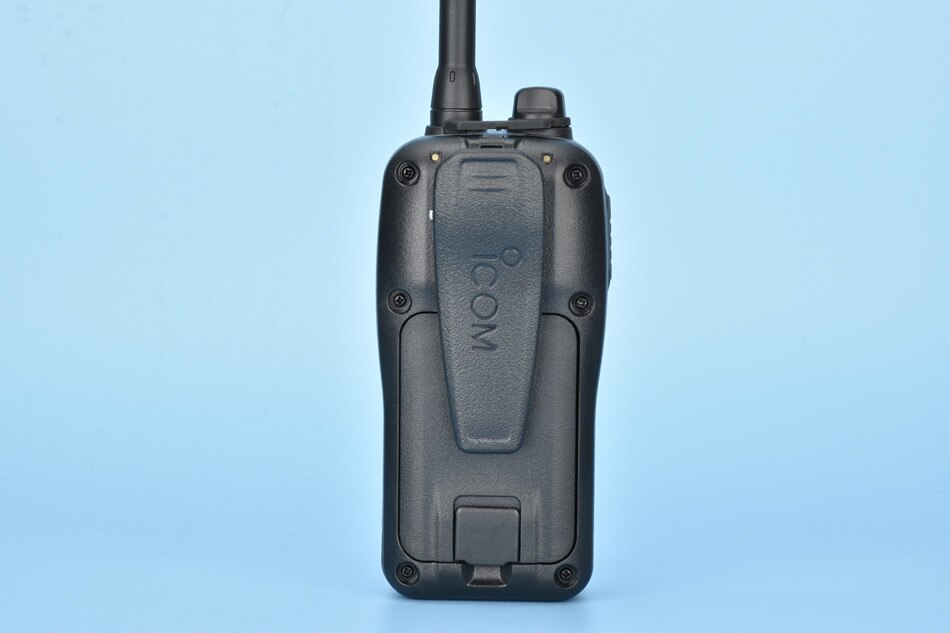

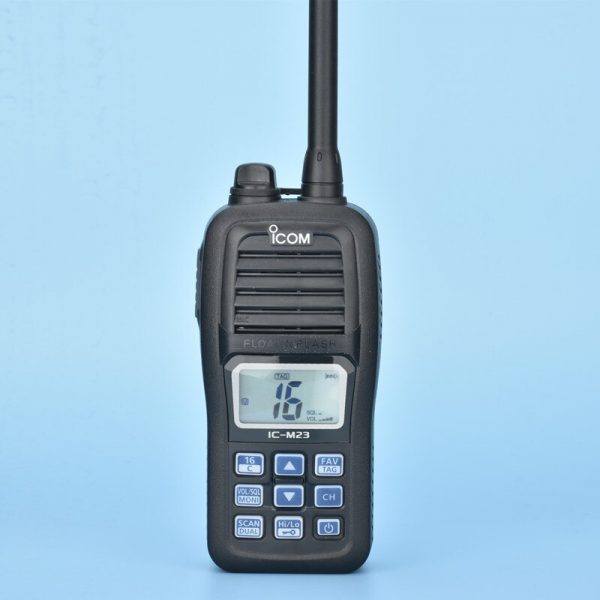

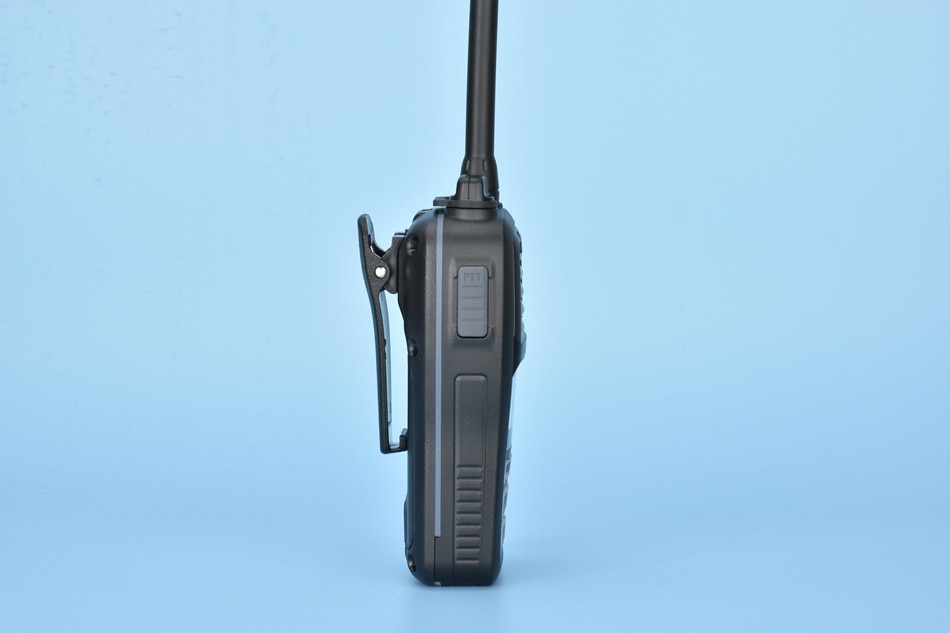

Icom IC-M23 intercom machine BP226 battery Aikemu IC-M24 intercompiring ship uses ICOM very high-frequency floating

The original imported ship is very high-frequency IC-M23 floating intercom, with explosive flash indicator lights

Frequency range: TX 156.025-157.425MHz
Receive 156.050-163.275MHz
Dimensions (width × height × deep)
(Forecast does not include) 58.5 × 128.5 × 34.5 mm;
2.3 × 5.06 × 1.36
Weight (about) 260 grams
(With BP -266, FA -SC58V, MB -124)
Current consumption (about)
(3.V DC) Send (High) 2.3A
The maximum sound of 350 mAh is typical.
Sensitivity (20db sinad; EMF) 0.25dbμV typical
Mutual adjustment inhibitory 70db
600MW of audio output power (with 8Ω load)
RF output power is 5W/1W.

Applicable Intellectual Property Ratingenvironmental test.
Protection level standard
IPX7 waterproof (waterproof protection)

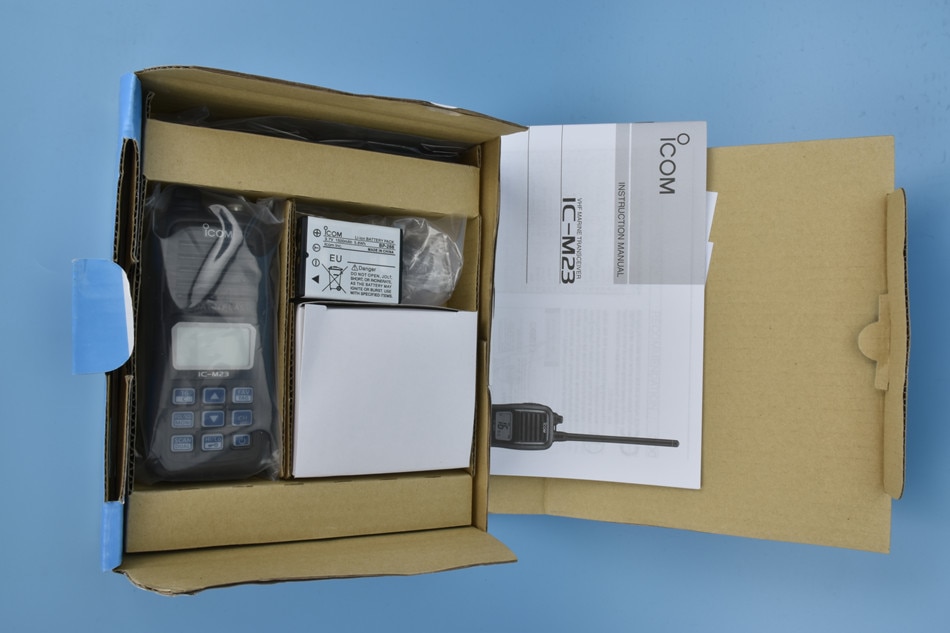

Specific configuration: Host x1 antenna X1 3.7V1500mAh Cloak Gum Lithium Battery X1 Portable Charger X1 Folder X1
