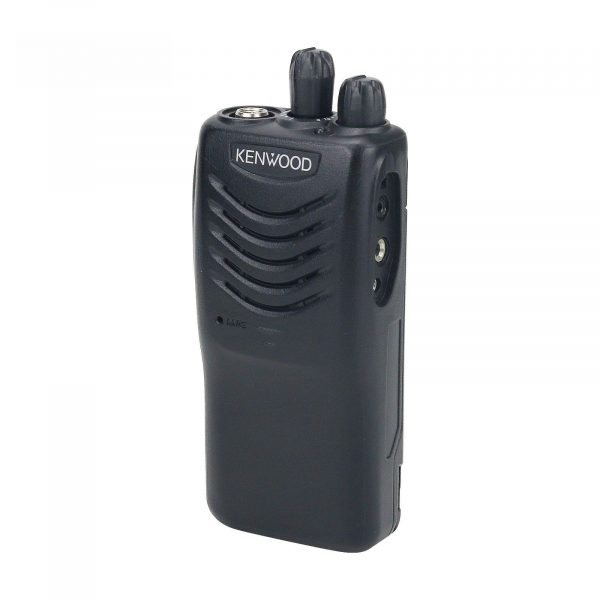

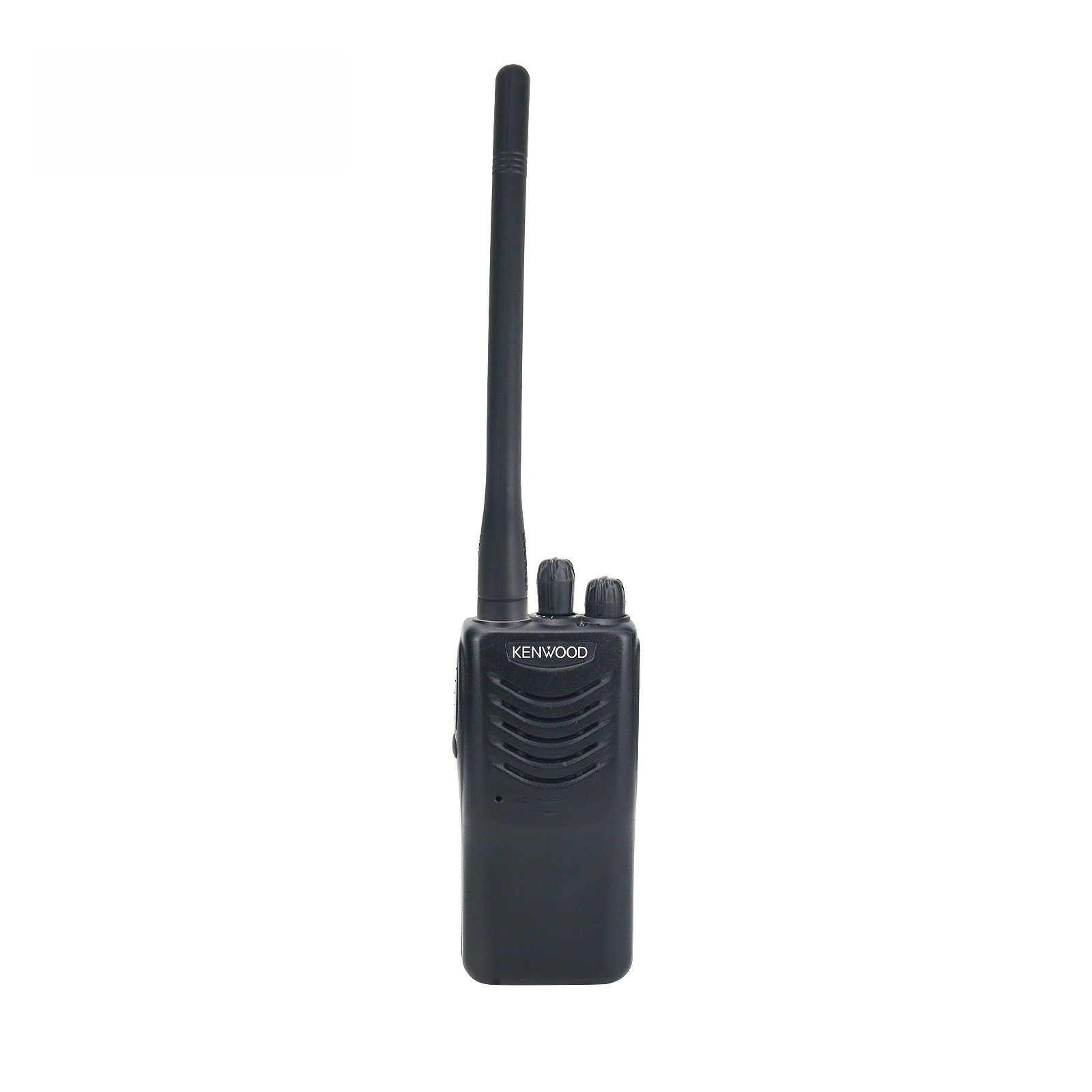

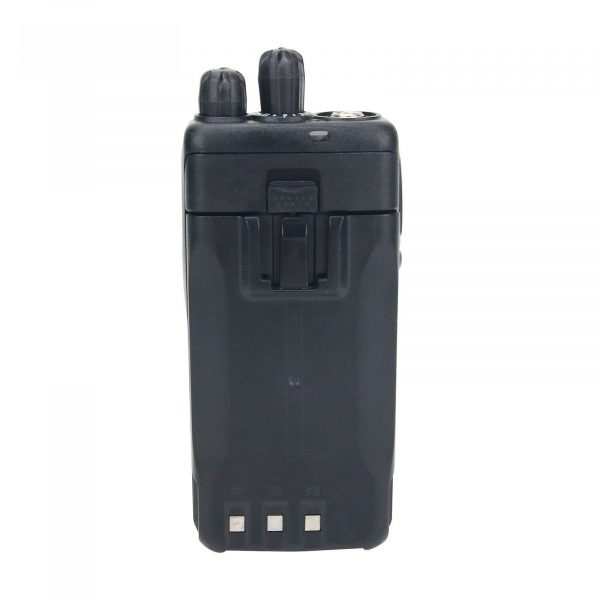

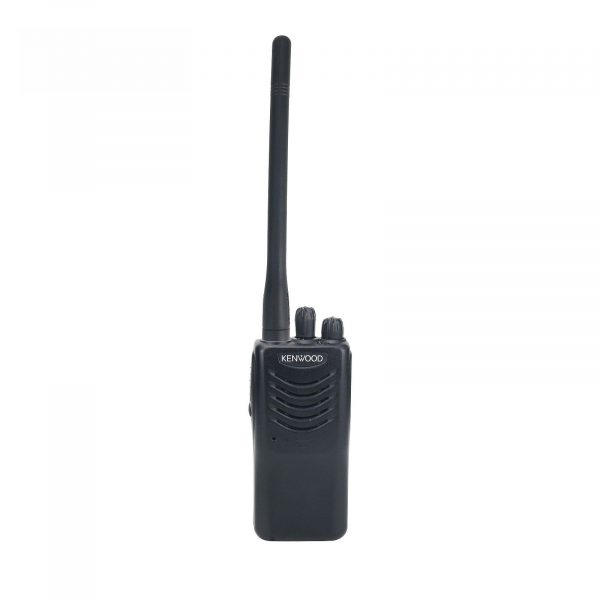

KENWOOD TK-U100 Radio VHF 144-174MHz UHF 440-480MHz 400-430MHz KENWOOD TKU100 Portable Transceiver

Sale!

 KENWOOD TK-U100 Radio VHF 144-174MHz UHF 440-480MHz 400-430MHz KENWOOD TKU100 Portable Transceiver

$63.90

& Free Shipping
Quantity Discount (%) Price
1 $63.90
2 - 4 2.74 % $62.15
5 - 9 5.87 % $60.15
10+ 12.52 % $55.90
Guaranteed Safe Checkout

Fashionable Mini KENWOOD TK-U100 Walkie Talkie VHF/ UHF Two way Radio

1.Water & Dust Proof

2.Computer programming

3.Double dumb notes

model TK-U100(V) TK-U100(U) TK-U100(U)
C C C2
Basic specifi
frequency range 144-174MHz 440-480MHz 400-430MHz
Channel number 16
channel spacing Broad band  25kHz/ narrow  band 12.5kHz
working voltage Dirrect current 7.5V±20%
Battery working time
(5-5-90working cycle & power saving swith)
About 10h(KNB-63L)
working temperature -20°C~ +60°C
frequency stability ±5ppm ±2.5ppm
antenna impedance 50Ω
Channel fazes frequency range 30MHz 40MHz 30MHz
size(w×h×d)
except for the projection
54×113×14mm(host)
54×113×24.9mm(with KNB-63L battery)
weight(net weight) About 130g(host)
about 203g(with KNB-63L battery)
receiver(according to EIA/TIA-603 standard test)
sensbility (12dB SINAD) broad band 0.25μV/ narrow band 0.28μV
option Broad band 70dB/ narrow band 60dB
intermodulation distortion broad band 65dB/ narrow band 60dB
audio distortion Less than 5%
audio output (7.5V,8Ω impedance) 500mW
transmitter(according to EIA/TIA-603 standard test)
Rf power output(high / low) 5W/1W 4W/1W
stay emission 65dB
FM noise broad band 45dB/ narrow band 40dB
modulation distortion Less than 5%
modulation mode broad band 16K0F3E, narrow band 11K0F3E

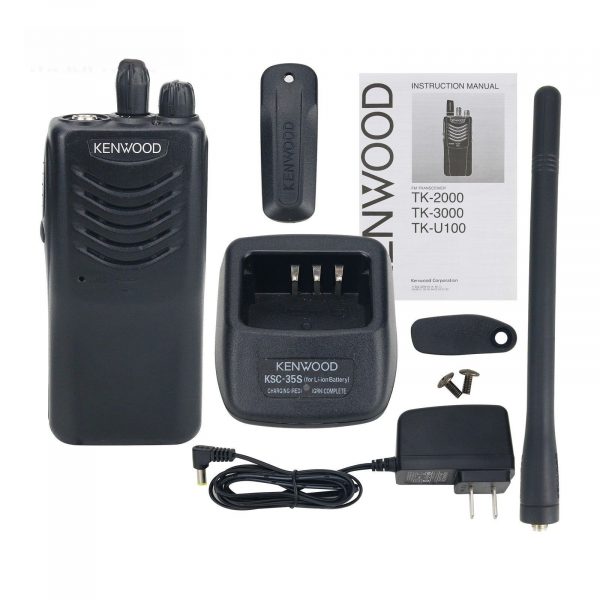

Each Set PACKAGE CONTAIN

1 x Kenwood TK-U100

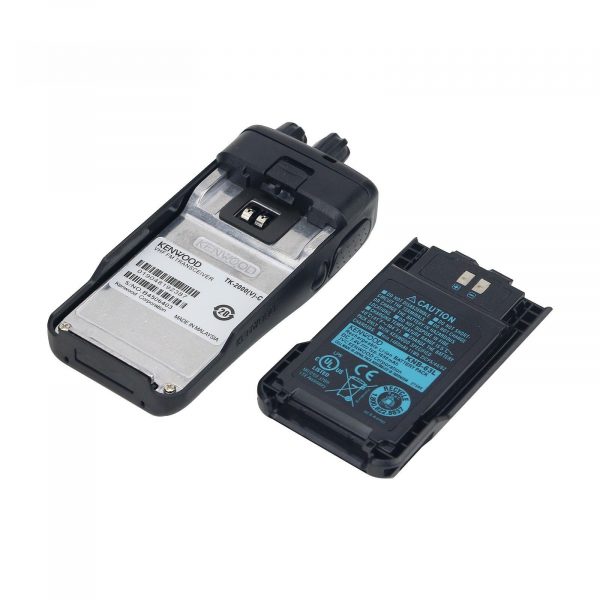

1 x 7.4V 1130mah Li-ion Battery Pack
1 x Antenna
1 x Belt Clip
1 x ENG Manual
1 x Desktop Charger ( 100V ~ 240V )+(2pin USA or 3pin UK or 2pin EURO or 2pin Australia)
1 x PTT headset for free

Weight 0.8 kg
Dimensions 300 × 250 × 100 cm
Frequency Range

144-174MHz, 440-480MHz, 400-430MHz
