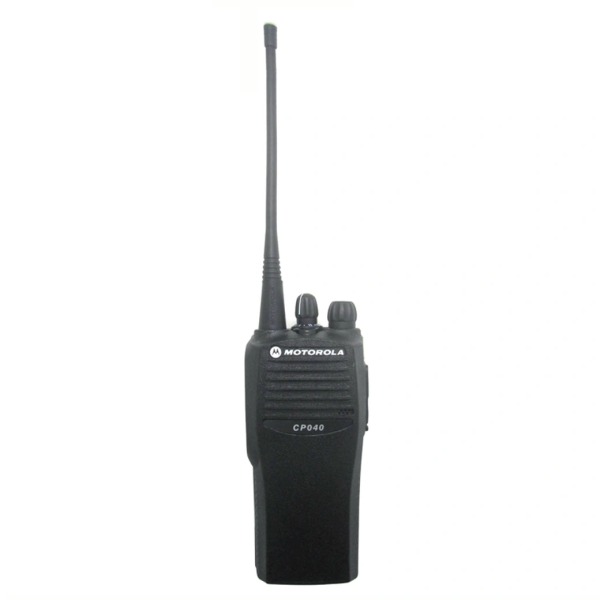

Motorola CP040 Professional UHF VHF Portable 2-ways Radios

Sale!

Motorola CP040 Professional UHF VHF Portable 2-ways Radios

$145.00

& Free Shipping
Guaranteed Safe Checkout

Motorola CP040 Professional Handheld Walkie Talkie UHF VHF 2-ways Radios



Function
Easy to use and set-up

  • Programmable buttons for easy access to frequently used features
  • Ruggedised design
  • PC programmable

Quality

  • MIL Spec 810F compliant
  • Meets IP54 environmental standards
  • Passed unique Motorola Accelerated Life Test which simulates five years hard use in the field
  • X-PandTM voice compression technology

Efficiency

  • Channel scanning
  • High/low power option for battery management
  • CTCSS signalling (PL)

Included as standard

  • Battery
  • Belt clip
  • Charger
  • Aerial

Accessory options
A wide range of accessories are available to customise your radio.

  • Audio accessories
  • Batteries and chargers
  • Carry options

Accessories

  • Antenna
  • Battery
  • Charger
  • Power adapter
  • Dust cover
  • Clip
  • Manual

Specifications

General VHF UHF1 UHF2 UHF3
Frequency 146 – 174 MHz 403 – 440 MHz 438 -470 MHz 465 -495 MHz
Channel Capacity 4 or 16 Channels
Power Supply 7.5 Volts ± 20%
Dimensions (H x W x D) 130 x 62 x 42mm (with Slim Li-Ion Battery)
Weight 376g with Slim Li-Ion Battery
Average Battery Life at Room
Temperature (5:5:90 duty cycle)
Standard Capacity NiMH Battery
Slim Li-Ion Battery
High Capacity Li-Ion Battery
1W
13 Hrs
17 Hrs
19 Hrs
5W
10 Hrs
12 Hrs
14 Hrs
1W
13 Hrs
17 Hrs
19 Hrs
4W
10 Hrs
12 Hrs
14 Hrs
Receiver VHF
12.5 KHZ 20/25 KHZ
UHF 1
12.5 KHZ 20/25 KHZ
UHF 2
12.5 KHZ 20/25 KHZ
UHF 3
12.5 KHZ 20/25 KHZ
Sensitivity (12 dB EIA SINAD) 0.25 µV (Typical)
Adjacent Channel Selectivity -60 dB -70 dB -60 dB -70 dB -60 dB -70 dB -60 dB -70 dB
Intermodulation -70 dB
Frequency Stability (-30°C to +60°C) 0.00025%
Spurious Rejection -70 dB
Audio Output @ < 5% Distortion 500 mW
Transmitter VHF UHF 1 UHF 2 UHF 3
Low    High Low              High
RF Output: NiMH @ 7.5V 1W     5W 1W               4W
Channel Spacing 12.5 / 20 / 25 kHz
Frequency Stability (-30°C to +60°C, ) 0.00025%
Spurs/Harmonics -36 dBm < 1 GHz -30 dBm > 1 GHz to 4 GHz
Audio Response (from 6 dB/oct. Pre-emphasis, 300 to 3000 Hz) +1, -3 dB
Audio Distortion @ 1000 Hz, 60% Rated Max. Dev. < 3%
FM Noise -40 dB (12.5 kHz) -45 dB (25 kHz)
Environmental
Operating Temperature -30 to +60 °C
Storage Temperature -40 to +85 °C
Thermal Shock -40 to +80 °C
Dust & Water Intrusion IP54

Product Information

Motorola CP040 is a commercial wireless walkie-talkie, which is widely used for teamwork, security and other tasks in various industries such as office buildings, factories, logistics distribution, and tourism. Its advantages are stable signal, clear sound quality, easy to use and so on.

stable signal
The most critical point of using a walkie-talkie is the stability of the signal, which is related to the smooth communication and the correct transmission of information. The Motorola CP040 walkie-talkie uses a professional UHF frequency band, which has strong anti-interference ability and can carry out stable communication in complex electromagnetic environments. In addition, the walkie-talkie also uses digital modulation technology, which can effectively reduce clutter interference and ensure the clarity of communication.

Clear sound quality
The sound quality of the Motorola CP040 walkie-talkie is very clear, and you can easily hear the information sent by the other party even in a noisy environment. This is due to the use of high-quality microphones and speakers, which can achieve high clarity whether it is voice or two-way dialogue. In addition, it also supports a variety of voice prompts, which can make your operation more convenient and quick.

easy to use
The Motorola CP040 walkie-talkie is very easy to use, and it can communicate directly without too many configurations and settings. It adopts easy-to-operate buttons and interface design, even beginners can get started quickly. In addition, its appearance design conforms to ergonomics, which is comfortable to hold and easy to carry. It also has the advantage of long battery life for long periods of continuous use, keeping you on task.

Weight 0.8 kg
Dimensions 300 × 400 × 150 cm
Frequency Range

VHF, UHF
