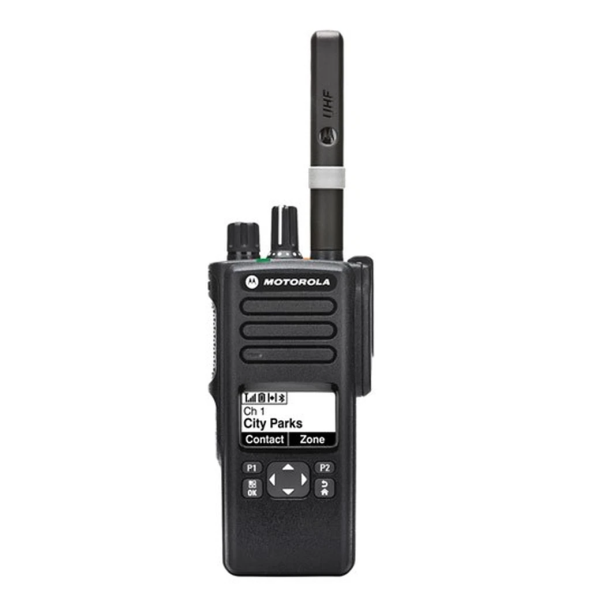

Motorola DP4600 Portable Digital DMR Radio

Sale!

Motorola DP4600 Portable Digital DMR Radio

$485.00

& Free Shipping
Guaranteed Safe Checkout

Motorola DP4600 Portable Digital DMR walkie-talkie VHF UHF 1000 CHS Keypads Screen



Product Information
Motorola DP4600 is a leading digital walkie-talkie with high performance, high definition, high security and other advantages, making it an indispensable communication device for modern enterprises. It is suitable for various workplaces, including production, logistics, transportation, public safety, security, prisons and other fields.
Motorola DP4600 walkie-talkie adopts DMR digital technology, which has high-definition voice transmission effect. Noisy noise and background noise can be heard in traditional analog walkie-talkies, but digital walkie-talkies can effectively eliminate these noises and ensure clearer call effects.
The Motorola DP4600 intercom features a high channel count. It supports up to 1000 channels, making it an ideal communication device. This allows it to meet different needs in different workplaces and help businesses improve work efficiency.
Motorola DP4600 walkie-talkie also supports multiple communication methods. Users can easily transmit and track location and information through SMS and GPS functions, ensuring easier and faster communication. In addition, it can also be paired with Bluetooth devices, such as earphones and speakers, enabling users to enjoy high-quality, high-security communication experience.
Motorola DP4600 walkie-talkie has the characteristics of high security. It adopts digital encryption technology to effectively protect the content of the call from being leaked and ensure that the use of the walkie-talkie is safer.

The Motorola DP4600 walkie-talkie is also IP57 rated for water, dust and drop resistance.

Accessories

  • Antenna
  • Battery
  • Charger
  • Power adapter
  • Dust cover
  • Clip
  • Manual

Specifications

General
VHF UHF
Channel Capacity 1000
Frequency 136-174 MHz 403-527 MHz
NiMH (1400mAh) battery (HxWxL) 130.3 x 55.2 x 38.7 mm
(5.13 x 2.17 x 1.52 inch)
Weight 426.5 g (15.04 oz)
IMPRES Li-ion Slim (1600mAh) battery (HxWxL) 130.3 x 55.2 x 35.8 mm
(5.13 x 2.17 x 1.41 inch)
Weight 336.5 g (11.87 oz)
IMPRES Hi-Cap Li-ion (2250 mAh) battery (HxWxL) 130.3 x 55.2 x 41.1 mm
(5.13 x 2.17 x 1.62 inch)
Weight 356.5 g (12.58 oz)
IMPRES Hi-Cap Li-ion FM (2350 mAh) battery (HxWxL) 130.3 x 55.2 x 41.1 mm
(5.13 x 2.17 x 1.62 inch)
Weight 366.5 g (12.93 oz)
Power Supply 7.5V (Nominal)
Operating Temperature -30°~ +60° C
Battery
Average Battery Life 5/5/90 duty cycle with carrier squelch and transmitter in high power
NiMH (1400mAh) battery Analog: 7 hrs/ Digital: 10.2 hrs
IMPRES Li-ion Slim (1600mAh) battery Analog: 8 hrs/ Digital: 11.8 hrs
IMPRES Hi-Cap Li-ion (2250 mAh) battery Analog: 11.5 hrs/ Digital: 17 hrs
IMPRES Hi-Cap Li-ion FM (2350 mAh) battery Analog: 12.3 hrs/ Digital: 18.1 hrs
Receiver
VHF UHF
Frequencies 136-174 MHz 403-527 MHz
Channel Spacing 12.5 / 20 / 25 kHz
Frequency Stability ± 0.5 ppm
Analog Sensitivity (12dB SINAD) 0.3uV , 0.22uV (typical)
Digital Sensitivity 0.25 uV (0.19 uV typical)
Intermodulation (TIA603D) 70 dB
Adjacent Channel Selectivity (TIA603A)-1T 60dB @ 12.5kHz / 70dB @ 20/25 kHz
Adjacent Channel Selectivity (TIA603D)-2T 45dB @ 12.5kHz / 70dB @ 20/25 kHz
Spurious Rejection (TIA603D) 70 dB
Rated Audio 0.5 W
Audio Distortion @ Rated Audio 5% (3% typical)
Hum and Noise -40 dB @ 12.5 kHz / -45 dB @ 20/25 kHz
Audio Response TIA603D
Conducted Spurious Emissions (TIA603D) -57 dBm
Transmitter
VHF UHF
Frequencies 136-174 MHz 403-527 MHz
Channel Spacing 12.5 / 20 / 25 kHz
Frequency Stability ± 0.5 ppm
Low Power Output 1 W 1 W
High Power Output 5W 4W
Modulation Limiting ± 2.5 kHz @ 12.5 kHz
±4.0kHz @ 20 kHz
± 5.0 kHz @ 25 kHz
FM Hum and Noise -40 dB @ 12.5 kHz
-45 dB@ 20/25 kHz
Conducted / Radiated Emission -36 dBm < 1 GHz
-30 dBm > 1 GHz
Adjacent Channel Power 60 dB @ 12.5 kHz
70 dB @ 20/25 kHz
Audio Response TIA603D
Audio Distortion 3%
4FSK Digital Modulation 12.5 kHz Data: 7K60F1D and 7K60FXD
12.5 kHz Voice: 7K60F1E and 7K60FXE
Combination of 12.5 kHz Voice and Data: 7K60F1W
Digital Vocoder Type AMBE +2™
Digital Protocol ETSI TS 102 361-1, -2, -3
Environmental Specifications
Operating Temperature -30℃ ~ +60℃
Storage Temperature -40℃ ~ +85℃
Thermal Shock Per MIL-STD
Humidity Per MIL-STD
ESD IEC 61000-4-2(level 3)
Dust & Water Intrusion IEC60529 – IP57
Weight 0.8 kg
Dimensions 300 × 400 × 150 cm
Frequency Range

VHF, UHF
