Motorola GP3188 VHF UHF Conventional Handheld two-way walkie talkie 16 channels

Sale!

Motorola GP3188 VHF UHF Conventional Handheld two-way walkie talkie 16 channels

$144.00

& Free Shipping
Guaranteed Safe Checkout

Professional Radio UHF VHF Motorola GP3188 Conventional handheld two-way walkie talkie 16 channels

Product Information
Motorola GP3188 conventional handheld two-way walkie talkie provides high sound quality, strong communication ability, long talk time, and can be operated with a single button, making it simpler and easier to use.
Motorola GP3188 has 16 channels, allowing users to group different work teams into different call groups to improve work efficiency. It adopts a novel ergonomic design, with excellent and realistic sound effects, vivid and emotional expression, and longer call time than before. The call time can reach up to 19 hours in low-power mode, and up to 14 hours in high-power mode; At the same time, the LED display screen can display the battery level status, allowing users to have a clear understanding of battery usage. In addition, GP3188 meets the strict military standard MIL-STD810 and is suitable for use in harsh working environments; It is also compatible with multiple existing Motorola original accessories and MagOne accessories, providing excellent protection for customers’ investments. The most attractive feature of GP3188 is that various functions can be operated with a single button, allowing users to easily control it.
Motorola GP3188 has a wide range of applications and is suitable for various fields. In the property and security industries, the GP3188, which is easy to use and can achieve single click operation, can assist users in responding quickly in emergency situations. In industries such as hotels and services, the compact and convenient GP3188 with hands-free function can help employees meet customer needs in a timely and convenient manner, winning customer praise. In industries such as manufacturing, construction, and forestry that require high quality and call time for walkie talkies, GP3188, with its solid and durable characteristics, can maintain clear call quality in harsh or noisy environments, and can adapt to various complex outdoor environments, helps customers excel in completing various tasks.

Function

Crystal Clear Audio
Exceptional audio design for that added communications edge.

Extended Talktime
19hr-talktime on low power and 14hr-talktime on high power for greater productivity.

Battery Latch Lock Feature
Keeps the power source firmly fastened to the radio and allows continuous communication.

Durable and Reliable
Compliant with demanding MIL-STD 810 standards, thus apt for harsh working environments.

Compatible Accessories
Compatible with existing original Motorola and MagOne accessories, thus protecting your investment.

Quick and Easy Programming
Faster programming with the user-friendly Microsoft Windows® based Customer Programming Software.

Accessories

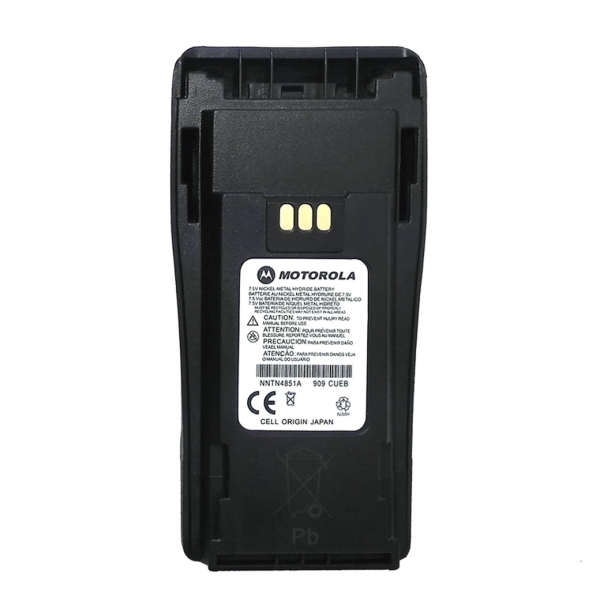

  • Battery
  • Charger
  • Power adapter
  • Dust cover
  • Clip
  • Manual

Specifications

General
VHF UHF
Frequency 136-162MHz,146-174MHz 403-440MHz, 438-470MHz, 465-495MHz
Channel Capacity 16 Channels
Power Supply 7.5V±20%
Dimensions (without belt clip and antenna)
With NiCd/extended LiIon
With standard NMH
With slim LiIon
126.5mm (H) x 61.5mm (W) x 45mm (D)
126.5mm (H) x 61.5mm (W) x 43mm (D)
126.5mm (H) x 61.5mm (W) x 42mm (D)
Weight (without belt clip and antenna)
With extended LiIon
With slim LiIon
With standard NMH
With NiCd
351g
350g
417g
406g
Average Battery Life@ 5-5-90 Duty Cycle
With extended LiIon
With slim LiIon
With standard NMH
With NiCd
Hi Power(5W) Low Power(1W)
14hrs                      19hrs
12hrs                    17hrs
10hrs                     13hrs
8hrs                      10hrs
Hi Power(4W) Low Power(1W)
14hrs                   19hrs
12hrs                   17hrs
10hrs                  13hrs
8hrs                   10hrs
Receiver
VHF 12.5 kHz VHF 20/25kHz UHF 12.5 kHz UHF 20/25kHz
Frequency 136-162MHz,146-174MHz 403-440MHz, 438-470MHz, 465-495MHz
Sensitivity 12dB EIA SINAD 0.25µV
Adjacent Channel Selectivity -65dB -70dB -60dB -70dB
Intermodulation -70dB
Frequency Stability (-30°C to +60°C) 0.00025%
Spurious Rejection -75 dB
Hum and Noise -45dB @ 12.5kHz, -50dB @ 25kHz
Image and 1/2 I-F Rejection -70dB
Audio Ouput @ < 5% Distortion 500mW
Transmitter
VHF 12.5 kHz VHF 20/25kHz UHF 12.5 kHz UHF 20/25kHz
Frequency 136-162MHz,146-174MHz 403-440MHz, 438-470MHz, 465-495MHz
Channel spacing 12.5 / 20 / 25kHz
Frequency Stability (-30°C to +60°C) 0.00025%
Spurs/Harmonics -36 dBm < 1GHz
-30 dBm >1GHz
Audio Response (from 6 dB/octave pre-emphasis300-3000Hz) +1 to -3dB
Audi Distortion @1000Hz, 60% Rated Max. Dev. <3%
FM Noise -40dB(12.5Khz)
-45dB(25Khz)
FCC Modulation 20/25 kHz 16K0F3E & 11K0F3E
Weight 0.8 kg
Dimensions 300 × 400 × 150 cm
Frequency Range

VHF, UHF
