Hotsale Motorola GP338 Professional Two Way Radio

Sale!

Hotsale Motorola GP338 Professional Two Way Radio

$165.00

& Free Shipping
Quantity Discount (%) Price
1 $165.00
2 - 4 1.82 % $162.00
5 - 9 4.24 % $158.00
10+ 7.88 % $152.00
Guaranteed Safe Checkout

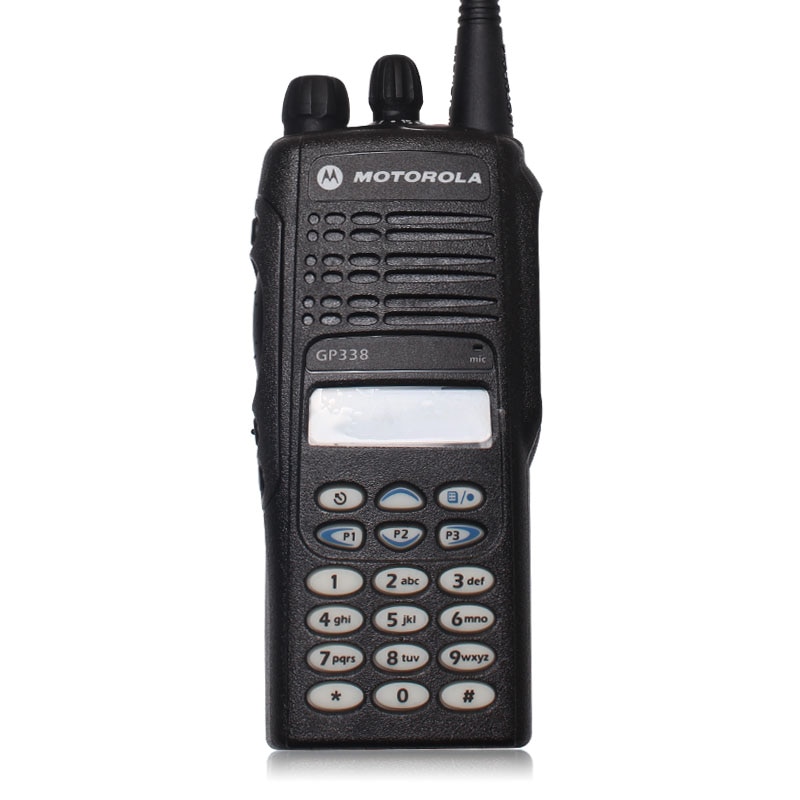

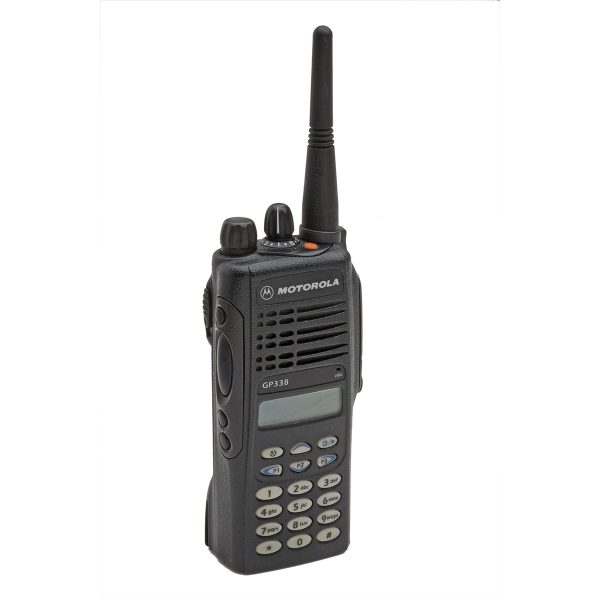

Motorola GP338 UHF/VHF Handheld Walkie Talkie 128CH 5 Watts Professional Two Way Radio

Motorola GP338 radio interphone GP328 explosion-proof handheld HT750 portable UHF and VHF bands are applicable to oil depot

The Motorola GP338, one of the market-leading radios in Motorola’s Professional Series, is a simple and affordable communication solution for portable users requiring a high-quality radio. It is easy to use with essential functionality and is the ideal entry solution.

With option board capability and a wide range of accessories available within the Professional Series; it’s easy to build a tailored communications solution to meet your needs.

Description Of  Walkie Talkie

Signalling
The radio software encompasses Private Line™ and MDC selective signalling.

Channel Scan
Allows activity on different communications channels to be monitored and answered.

X-Pand™ Voice Compression and Low Level Expansion
Crisp, clear and strong audio quality in virtually any noisy environment. Low level expansion allows further improvements in audio quality by reducing noise usually heard during pauses in conversation.

Voice Operated Transmit (VOX)
Hands free operation when used with VOX headset accessory.

Adjustable Power Levels
The radio output power has two settings – low power extends battery life and high power allows the radio to transmit over a greater distance.

Escalert Call Features
Escalating alert tone to alert user of incoming call. Starts at a very low level and increases until call answered.

Option Board Expandability
You can expand the existing capabilities by adding one of the following option boards:

  • Encryption for message security.
  • SmarTrunk II for low cost trunking.
  • Voice Storage option board provides voice recorder features allowing you to store and retrieve messages.

Talkaround
Freedom to communicate utilising a system or dispatcher for wide area coverage, or bypass and talk directly to another unit for easy local unit-to-unit communications.

Caller Tone Tagging
Allows different alert tones to be assigned to different caller identities.

Programmable Channel Spacing (12.5/20/25 KHz)
Flexible and easy migration of channel spacing requirements in any situation.

PERFORMANCE CHARACTERISTICS

Frequency band                                                        VHF,                       UHF

Frequency range                                                  136-174 (VHF),     403-470 MHz (UHF) 450-520MHZ(UHF2) Battery life (based on a 05/05/90 duty cycle) Up to 14 hours Dimensions H x W x D (with standard battery)          137 x 57.5 x 37.5 mm

Weight (with standard battery)                                      420 g Channel spacing       12.5, 25, 20

Number of channels                                                       128

Signalling                                                                        Private Line, Conventional/MDC

Scan types                                                                     Normal

It ,with Adjustable power levels,,Encryptio,Available option board,,Call forward,Call tones,,Channel scan,

Programmable buttons,Time out timer,,Voice operated transmit (VOX),X-pand voice compression and low level expansion

USER ENVIRONMENT

IP Standards                IP54

Intrinsically safe          Yes

Mil spec                       810 C, 810 D, 810 E

FEATURES

  1. Frequency Range: VHF136-174, UHF 430-470,450-527MHz.
  2. Output power:  VHF 1W/5W, UHF 1W/4W
  3. Channel: 128
  4. Channel step: 12.5/20/25KHz
  5. VOX function
  6. CTCSS/ DCS
  7. Emergency call
  8. Time-Out Timer(TOT)
  9. Battery Save
  10. MIL-STD 810D/E/F
  11. Signaling-Quick Call II, DTMF, part of the MDC1200
  12. LCD display
  13. P.C programming
  14. Talk Range:5-8 km
  15. Dimension:13.7cm*57.55cm*37.5cm
  16. Weight:428g(include battery)

General

VHF UHF
Frequency coverage
(Varies according to version)
136–174 MHz 330 – 400 MHz ,

403 – 470 MHz ,

450 – 527 MHz

Number of channels 16 channels
Channel spacing
(Varies according to version)
12.5/20/25 kHz 12.5/20/25 kHz
FM HUM & Noice

Conducted/Radiated Emission

-40dB

-66dBw

Dimensions
(projections not included; W×H×D)
137 mm x 57.5 mm x 37.5 mm

( With Standard NiMH battery)

Weight (approx.) 428gms (with standard NiMH battery)

TRANSMITTER

VHF UHF
RF output power 1W/5W 1W/4W
Spurious emissions 80dB (typ.) 70dB (typ.)
Frequency stability ±2.0ppm
Audio harmonic distortion 3% typical
40% deviation
FM Hum and Noise 46dB typ. (W)
40dB typ. (N)

RECEIVER

VHF UHF
Sensitivity at 12dB SINAD 0.25μV (typ.)
Adjacent channel selectivity (W/N) 60dB @12.5KMz /70dB @ 25KMz(typ.)
Spurious response rejection 70dB
Intermodulation rejection 70dB (typ.)
Rated Audio 500mW (typ.)

Complete Unit including accessories:

1 * Motorola GP338 Portable radio

1 * Antenna

1 * Battery pack

1 * Charger

1 * Belt clip

1 * The sling

1 * User’s manual

Weight 1 kg
Dimensions 300 × 400 × 100 cm
Frequency Range:

VHF 146 -174 MHz, UHF 403-470 MHz
