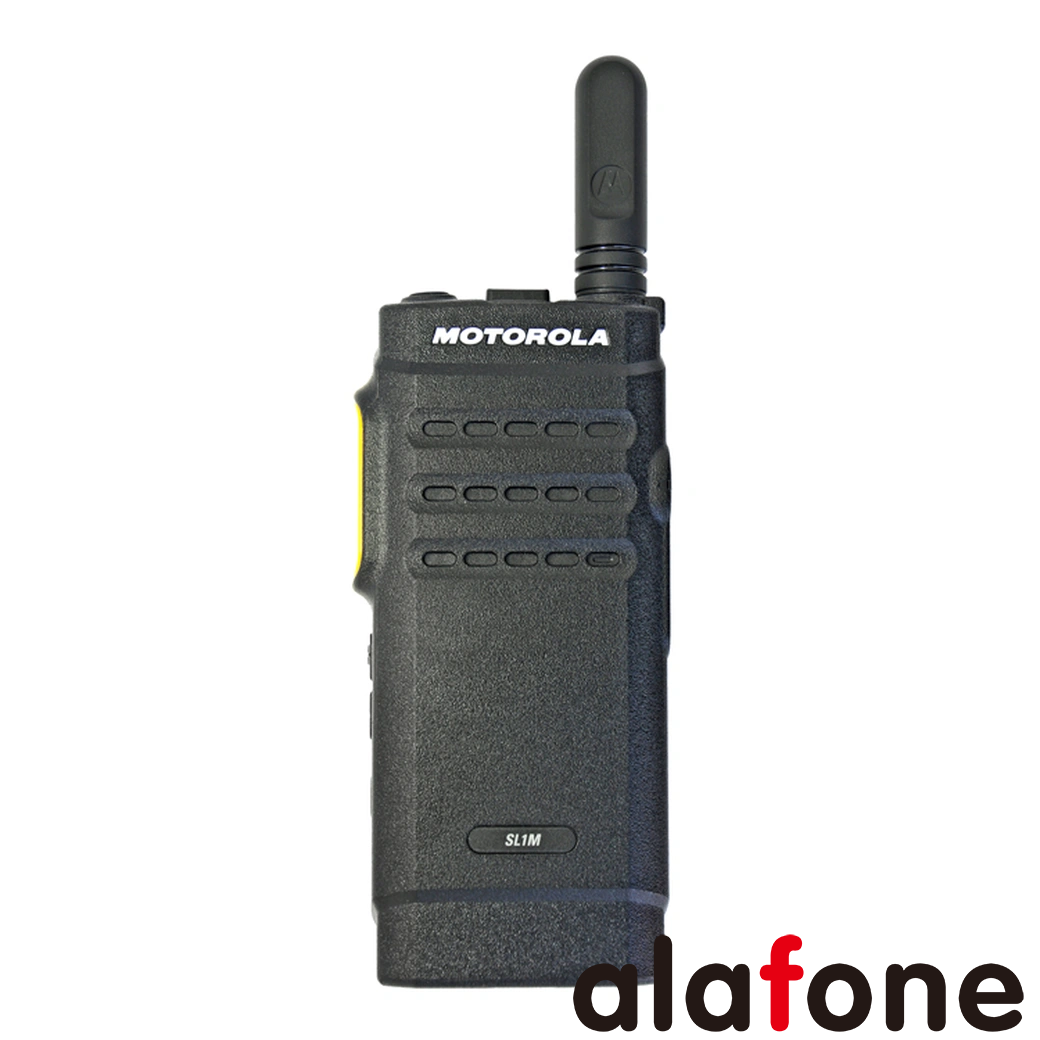

Motorola SL1600 Slim Light Small Walkie Talkie UHF VHF Professional Portable Radio


Motorola SL1600 Slim Light Small Walkie Talkie UHF VHF Professional Portable Radio


& Free Shipping
Guaranteed Safe Checkout

Motorola SL1600 Slim Light Handheld Walkie Talkie UHF VHF Professional MINI Portable Radio

Product Information
Motorola SL1600 walkie talkie is an excellent product in the current market. Its lightweight, portable, sturdy interior, high sound quality and easy operation, LED display, etc. make it the best communication choice for modern enterprises, government industries, and business groups. This type of walkie talkie has great advantages in installation, use, and maintenance, and can be applied to various occasions. Especially in factories, large logistics centers, shopping malls, and other environments, it has demonstrated its powerful role.
Firstly, the appearance of the walkie talkie is particularly beautiful, with a thickness of only about 22 millimeters, and the body technology has been optimized to make the durability and appearance design of the body more perfect. Compared to the unique thin design of traditional walkie talkies, it has a lighter and thinner feel, and can be conveniently placed in a backpack or pocket, which can be carried at any time without burden to users.
The design of the SL1600 walkie talkie is not only about appearance, but also adopts a new hidden display design, which can provide a clearer and more intuitive display method, informing you of important information such as battery level, signal strength, volume, etc., making it more convenient to use. In addition, it can customize user scenarios to enhance a user-friendly and intelligent user experience.

Secondly, the DMR digital radio technology used in this walkie talkie provides excellent voice effects, allowing for clearer and faster communication, making operation more convenient. For many enterprises and organizations, communication is crucial no matter when and where, so choosing a stable and high-quality walkie talkie is the primary consideration. The digital technology of the Motorola SL1600 walkie talkie helps to reduce noise in the sound, making voice communication clearer and faster.


Measuring under an inch thick, the SL1600 is ultra-portable. A stubby antenna, curved edges and rugged frame make the SL1600 the perfect work partner. It can be easily carried in pockets and purses without snagging or bulging.

TheSL1600 is outfitted with the latest technology for performance and ease of use. The shatterproof Active View display uses a matrix of LEDs behind the radio housing to communicate radio information and shuts off when not in use to conserve battery life. The SL1600 features Range Max technology: an advanced radio design and patented antenna which delivers enhanced range while maintaining a slim profile and long battery life.

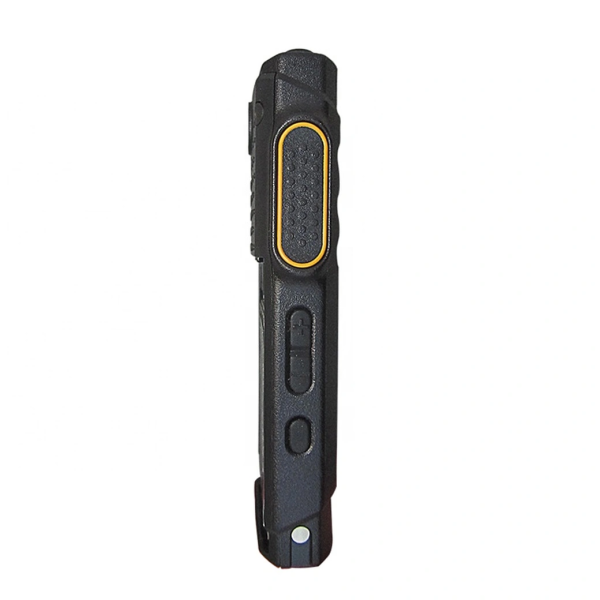

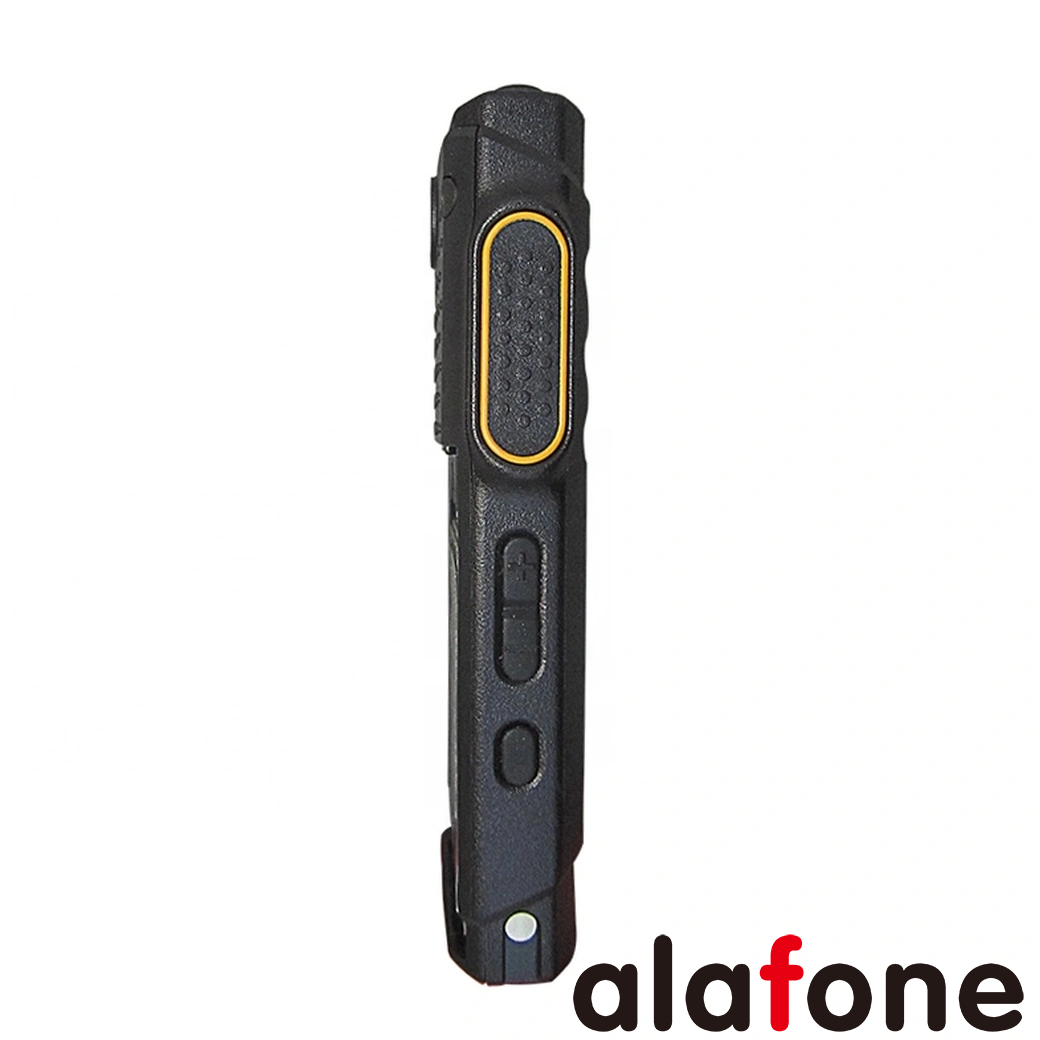

TheSL1600 has been designed for easy, intuitive use. The side volume control, dedicated power button, prominent push-to-talk button, and top toggle channel switch have all been designed for quick one-hand access. Channel “fast toggle” allows users to scroll through 10 channels at a time.
TheSL1600 is built to last. IP54 rated for dust and water resistance, it can be used even in harsh environments. This radio can survive many drops and tumbles. It has also been proven tough in Motorola’s grueling Accelerated Life Test, where the radio is tested against a simulated 5 years of hard service before it is accepted.

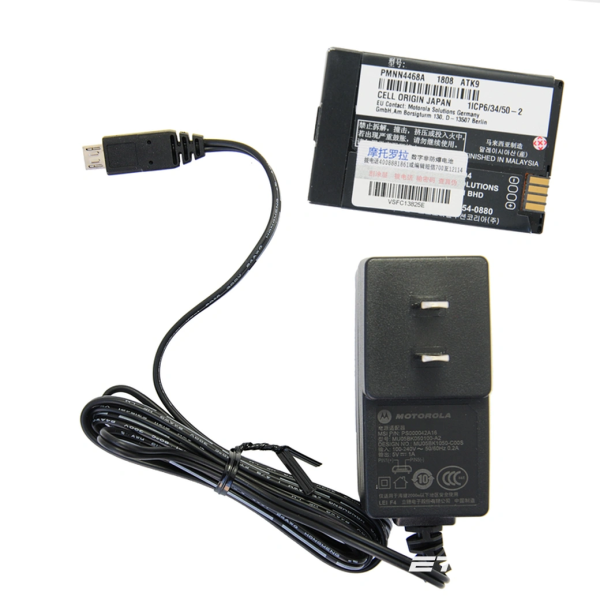

  • Charger
  • Clip
  • Manual
  • Earpiece
  • Strap


Channel Capacity 99
Typical RF Output
Low Power Output           Analog
High Power Output           Digital
2W       with Range Max technology
Frequency 136-174 MHz 403-470 MHz
Dimensions (H x W x L) 126 X 55 X 22 mm (4.95 X 2.17 x 0.87 in)
Weight with Battery 169g (5.96 oz) 166g (5.84 oz)
Power Supply (Nominal) 3.7 V
Battery Life [Li-Ion (2300mAh) Battery]
Analog (hours)
Digital (hours)
FCC Description AZ489FT3835 AZ489FT4922
IC Description 109U-89FT3835 109U-89FT4922
Frequency 136-174 MHz 403-470 MHz
Channel Spacing 12.5/ 20 / 25 kHz
Frequency Stability (-30°C, +60°C, +25°C Ref) ±1.5 ppm
Analog Sensitivity (12dB SINAD) 0.3 uV 0.22 uV (typical)
Digital Sensitivity (5% BER) 0.25 uV 0.19 uV (typical)
Intermodulation (TIA603D) 65 dB
Adjacent Channel Selectivity (TIA603D) 60 dB @ 12.5 kHz
70 dB @ 20/25 kHz
Spurious Rejection (TIA603D) 70 dB
Rated Audio 0.5 W (Internal)
Audio Distortion @ Rated Audio 5% (3% typical)
Hum and Noise -40 dB @ 12.5 kHz
-45 dB @ 20/25 kHz
Audio Response TIA603D
Conducted Spurious Emissions (TIA603D) -57 dBm
Frequency 136-174 MHz 403-470 MHz
Channel Spacing 12.5/ 20 / 25 kHz
Frequency Stability (-30°C, +60°C, +25°C Ref) ±1.5 ppm
Low Power Output
High Power Output              Analog
Modulation Limiting ± 2.5 kHz @ 12.5 kHz
±4.0kHz @ 20 kHz
± 5.0 kHz @ 25 kHz
FM Hum and Noise -40 dB @ 12.5 kHz
-45 dB @ 20/25 kHz
Conducted / Radiated
-36 dBm < 1 GHz
-30 dBm > 1 GHz
Adjacent Channel Power 60 dB @ 12.5 kHz
70 dB @ 20/25 kHz
Audio Response TIA603D
Audio Distortion 3% (typical)
4FSK Digital Modulation 12.5 kHz Data: 7K60F1D and 7K60FXD
12.5 kHz Voice: 7K60F1E and 7K60FXE
Combination of 12.5 kHz Voice and Data: 7K60F1W
Digital Vocoder Type AMBE +2™
Digital Protocol ETSI TS 102 361-1, -2, -3
Environmental Specifications
Operating Temperature -30℃ ~ +60℃
Storage Temperature -40℃ ~ +85 ℃
Thermal Shock Per MIL-STD
Humidity Per MIL-STD
ESD IEC 61000-4-2 Level 3
Dust & Water Intrusion IEC 60529 – IP54
Packaging Test MIL-STD 810D and E
