Motorola MTP3250 Portable 350-470MHz 800MHz Two Way Radio with full colour display and key pad UHF VHF motorola walkie talkie

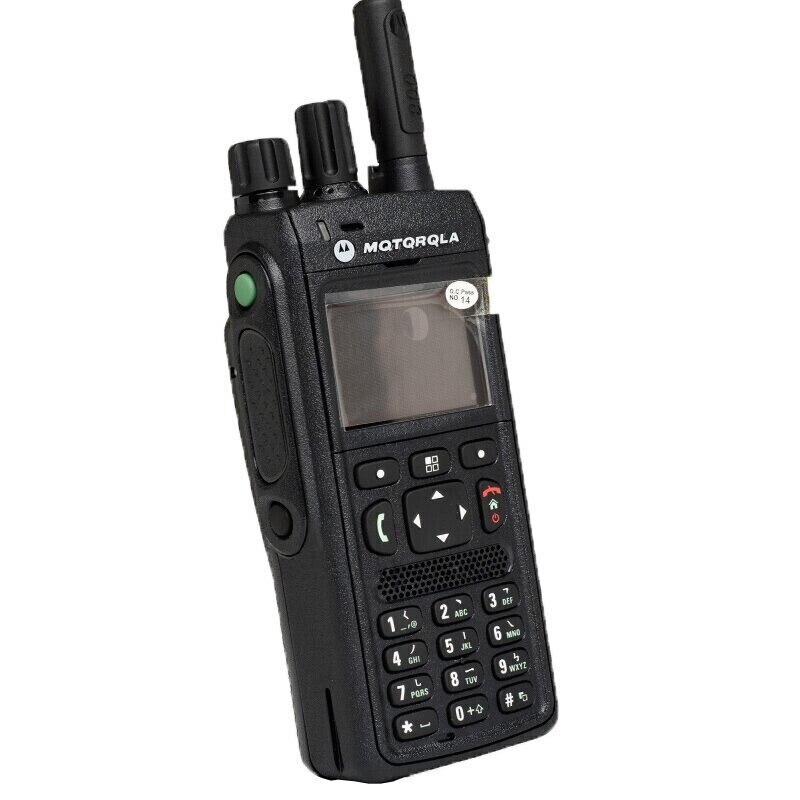

Motorola MTP3250
The Motorola MTP3250 is a TETRA radio from Motorola. This is an entry level TETRA radio that allows users to easily migrate between analogue and digital systems, the Motorola MTP3250 has a full colour display alongside a partial key pad to make navigating menus easier. Built to IP67 rating, the Motorola MTP3250 has a full Ingres against dust intrusion whilst also being safeguarded against submersion in water for up to 30 minutes, this meaning that although having an ergonomic design the MTP3250 is rugged and reliable.
The radio comes as standard with a 1650mAh Li-Ion battery allowing for up to 16 hours of usage time, this based on a duty usage cycle of 05 05 90. Weighing just 273g with the battery and antenna connected, the Motorola MTP3250 is relatively light in weight meaning that it is easy to carry whilst working. The radio has Bluetooth connectivity as standard, this allows for various wireless devices to be connected to the radio, these including items such as earpieces to make the operation of the radio as easy as possible.
Product Parameter
|
||
Product Name
|
motorola mtp3250
|
|
Dimension
|
124 x 53 x 33.5mm
|
|
Operation Voltage
|
DC7.5V
|
|
Frequency range
|
350-400MHz, 800 MHz
|
|
Battery capacity
|
1400mAh Li-ion battery
|
|
Antenna Impedance
|
50Ω
|
|
Operation Temperature
|
-20℃ ~ +50℃
|
|
Output power
|
2/5W
|
|
Standby time
|
≈12-24 hours
|
|
Order service
|
Retail/Wholesale/OEM/ODM
|
|
Weight |
273g
|
|
Dimensions H x W x D
|
124 x 53 x 33.5mm
|
-
Frequency bands
450-470 MH, 800 MHz
-
RF power control
3 steps of 5dB
-
Power output
3L (1.8W) & Class 4 (1W)
-
Channel spacing
25
-
Battery life (based on a 05 05 90 duty cycle)
16 Hours
-
Battery life (based on a 5 35 60 duty cycle)
12 Hours
-
Battery capacity
12 Hours – 1650mAh (Standard)
,
16 Hours – 2150mAh (High Capacity)
Radio Features
-
RF power level accuracy
+/- 2 dB
-
Scan types
Talkgroup
-
Receiver class
A&B
-
Receiver static sensitivity
-114 dBm minimum;
-116 dBm typical -
Receiver dynamic sensitivity
-105 dBm minimum;
-107 dBm typical -
Switching bandwidth
80 MHz
User Environment
-
-
IP Standards
IP65, IP67
-
IP66
-
Shock, drop and vibration
ETS 300-019 1-7 class 5M3
-
Dust and water
IP65, IP66 and IP67 per IEC 60529
-
Humidity
ETS 300 019-1-7 class 7.3E
-
Storage temperature
-40°C to +85°C
-
Operating temperature
-30°C to +60°C
Voice Services
-
Transmit inhibit
Yes
-
Ambience listening
Yes
-
Scan lists
40 lists, 20 talkgroups / lists
-
Phone book
1000 entries
-
Talkgroups
2048 (TMO) & 1024 (DMO)
TMO Services
-
DGNA
Up to 2048 groups
-
Telephony
Full duplex
DMO Services
-
Compatiblity with
Gateway or repeater
-
Private call
Half / full duplex
-
Group call
Late entry
Emergency Voice Services
-
Alarm
Emergency status
-
Emergency target address
Individual or group
-
Location
Send on emergency
-
Hot mic
Configurable timers
-
Smart emergency
DMO / TMO / DMO to TMO
Data Services
-
Status messaging
400 alias messages
-
PEI
AT commands
-
Short data service (SDS)
Inbox: minimum 1000 messages
Outbox: minimum 1000 messages
Drafts: minimum 250 messages -
Status messaging
100 alias messages
GPS Specifications
-
Tracking Sensitivity
-160dBm
-
Location protocols
ETSI LIP, Motorola LRRP
-
GPS accuracy
2 meter (50% probable) @ -130dBm
-
GPS antenna
Integrated in TETRA antenna
-
Mode of operation
Autonomous (A-GPS)
-
Simultaneous satellites
12
