DIY New MIX MX72 Duplexer Antenna VHF100W 144-148MHz UHF 60W 400-470MHz Dual Band DIY Ham Mobile Radio Antenna Combiner

Special Instructions:

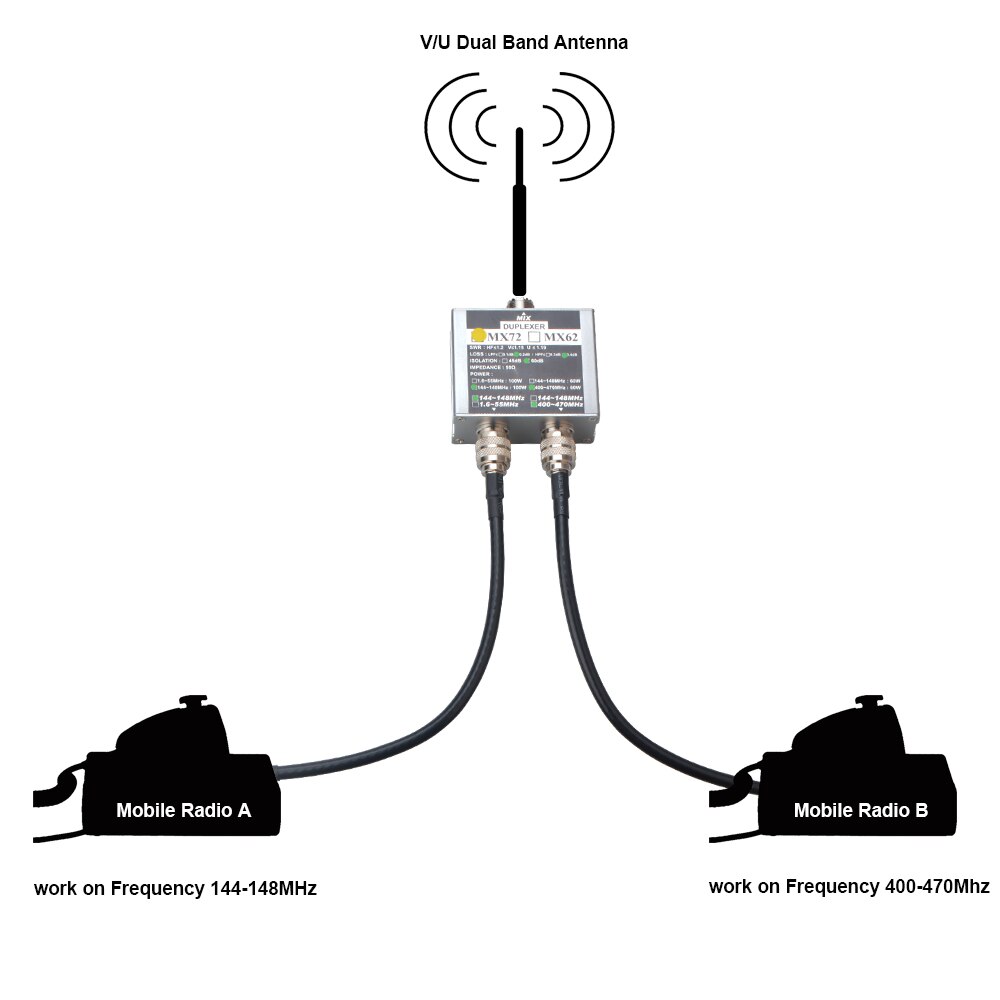

– 2 pieces mobile radios (one works onVHF 144-148MHz, another one works on UHF 400-470MHz ) work together with 1piece dual band VHF/UHF Antenna.

– The working frequencies of antenna and transceivers must match to the frequency bands of the MX62 Antenna combiner.

– The 2 pieces mobile radios could transmit simultaneously, also could transmit independently.

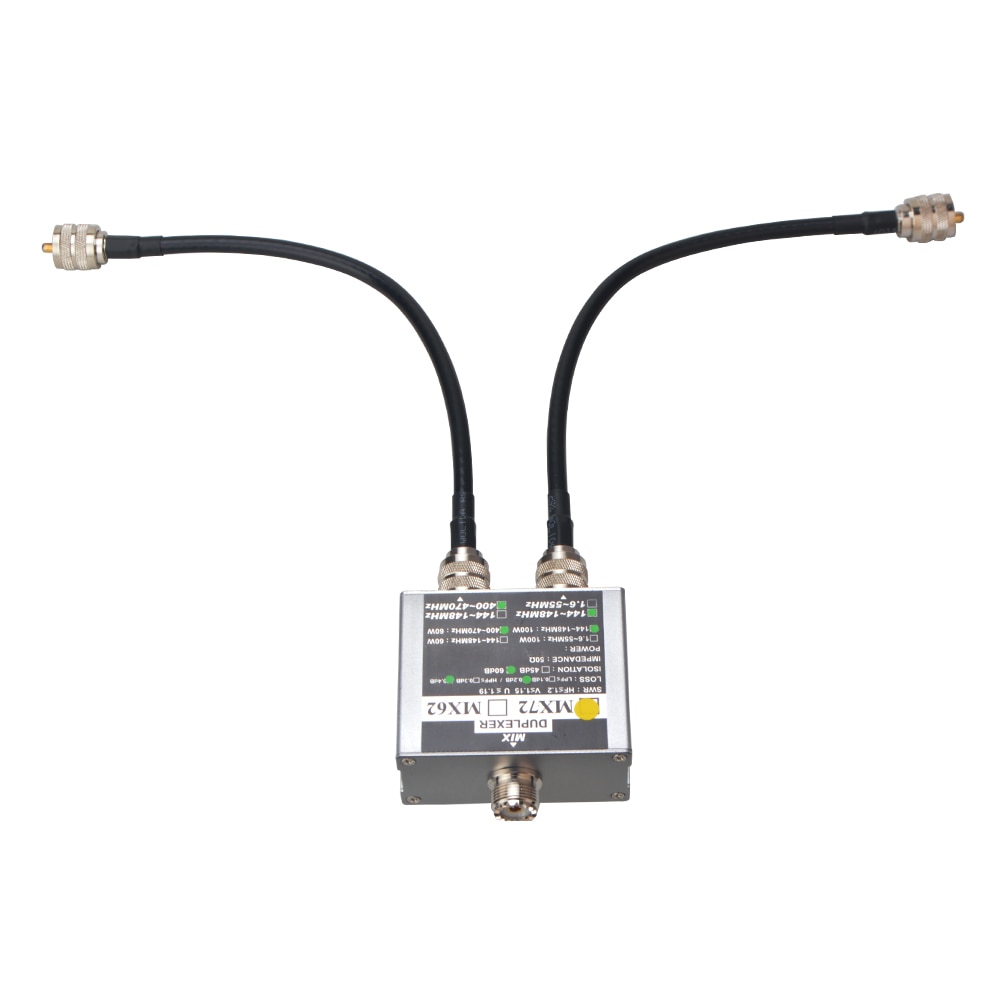

– Comes with 2 pieces Coaxial Cable (30cm Cable Length) for connecting to the antenna port of mobile transceiver.

Specifications:

-Working Frequency Range of the Antenna Combiner: VHF 144-148MHz and UHF 400-470MHz

-SWR: VHF≤1.5,UHF≤1.19

-LOSS: LPF:0.2dB, HPF:0.4dB

-ISOLATION: 60dB

-Impedance: 50 ohm

-Power:144-148MHz:100W,400-470MHz: 60W

-Interface: SO239

-Size:90*77*35mm

-Weight:275g

Package Contents:

1× MIX MX72 Duplexer Antenna Combiner

2×Coaxial Cable (30cm length)

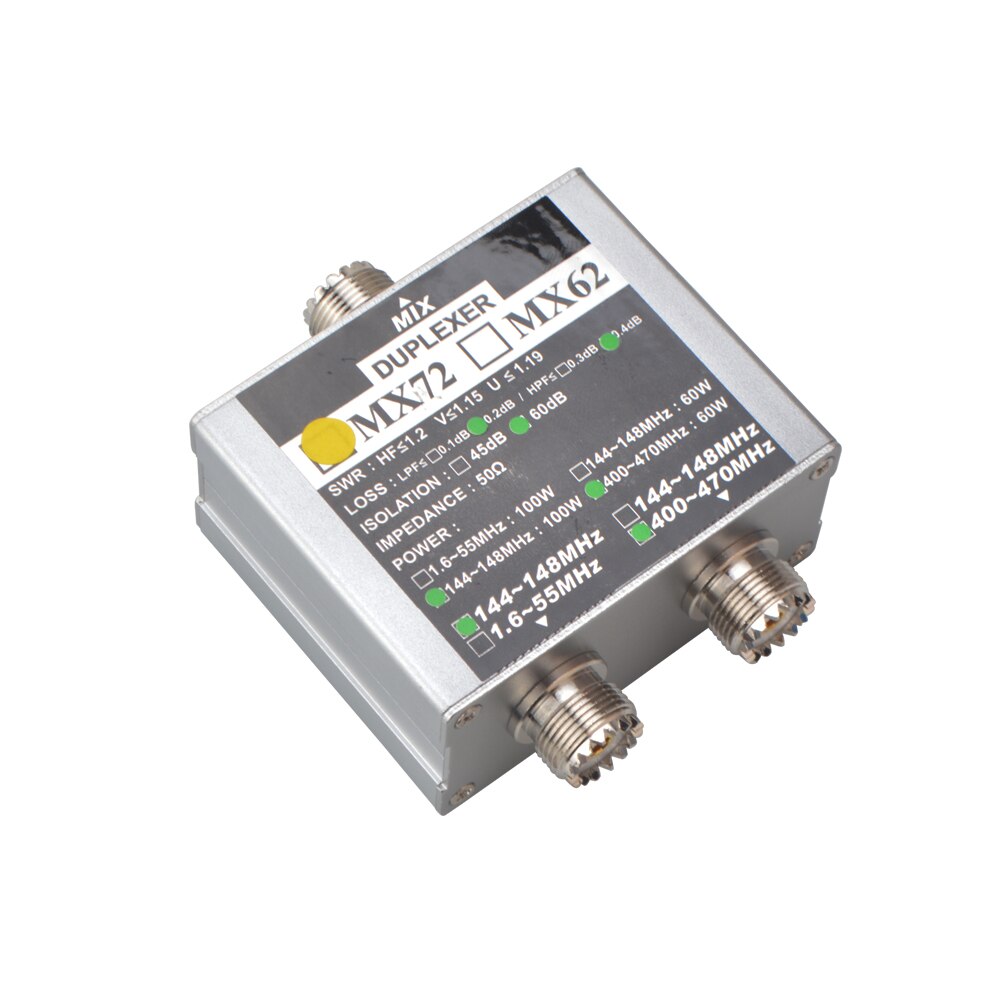

Photos:
