Compatible with all handheld CB radios from many brand with a BNC connector, improve quality and range to CB radio reception. The antenna design is soft, flexible and durable, works on all channel within CB radio frequency range of 26MHz to 27 MHz.

With its compact size it can be easily installed into almost any mounting location in your vehicle.

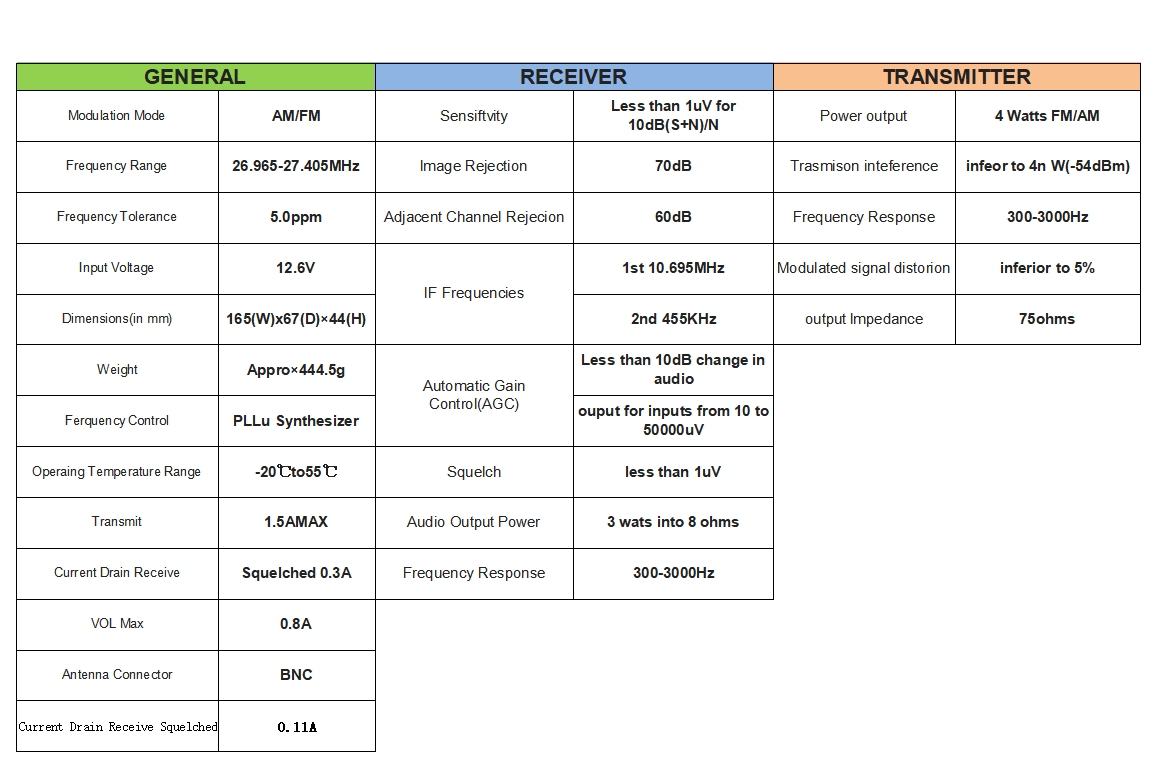

SPECIFICATIONS

GENERAL
Modulation Mode：AM/FM
Frequency Range：26.965-27.405MHz
Frequency Tolerance：5.0ppm
Input Voltage：12.6V

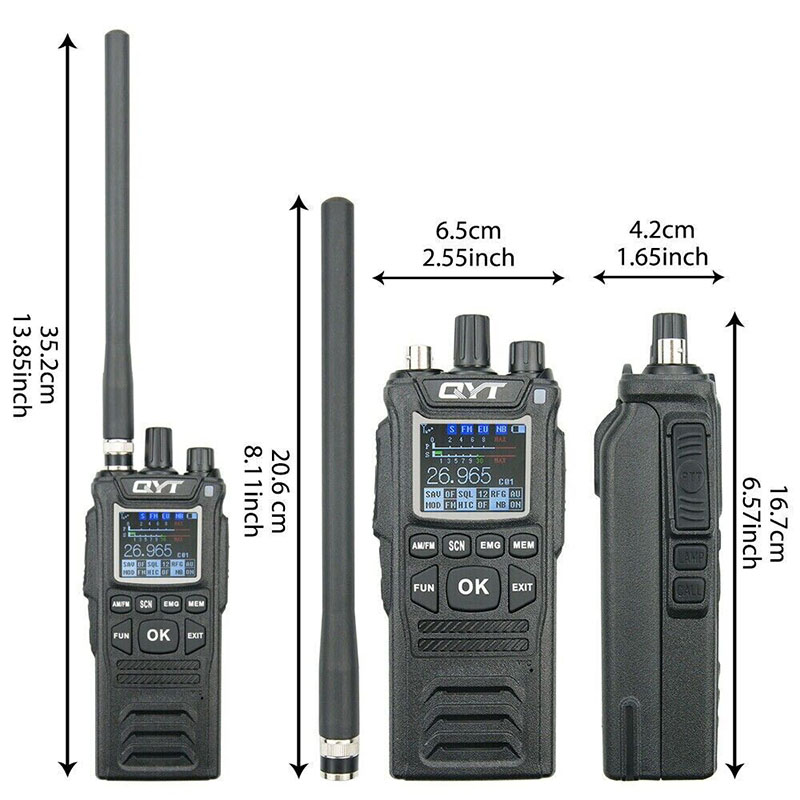

Dimensions(inmm)：165(W)x67(D)×44(H)
Weight Approx：444.5g
Frequency Control：PLLSynthesizer
Operating Temperature Range：-20℃to55℃
Transmit：1.5AMAX
Current Drain Receive：Squelched 0.11A
Antenna Connector：BNC

TRANSMITTER

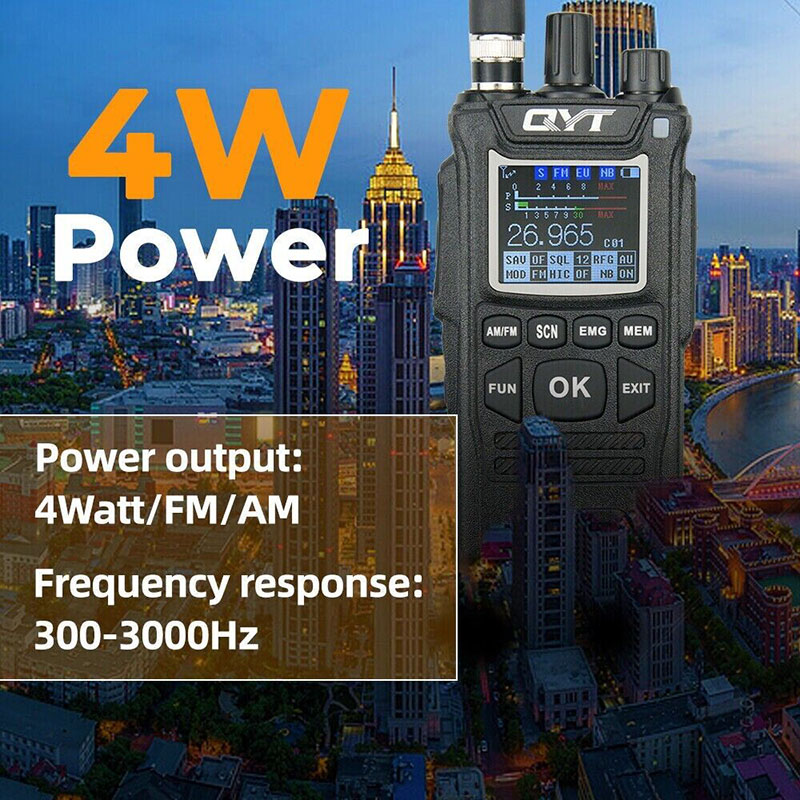

Power output：4WattsFM/AM
Transmission interferenceinferiorto：4nW(-54dBm)
Frequency Response：300-3000Hz
Modulated signal distortion：inferiorto5%
output impedance：75ohms
RECEIVER
Sensitivity：Lessthan1uVfor10dB(S+N)/N
Image Rejection：70dB
Adjacent Channel Rejection：60dB
IF Frequencies：
1st 10.695MHz
2nd 455KHz

AutomaticGainContol(AGC)：
Less than 10dB change in audio
output for inputs from 10 to 50000uV
Squelch ：less than 1uV
Audio Output Power：0.5 watts into 8 ohms

Main Feature:

▲40 Channel Multiband CB
(Incorporates 40UK/40EU channels plus other European and North American frequency bands)
▲TFT LCD Display
▲8 Optional Channels
▲CTCSS/DCS
▲DTMF
▲TOT

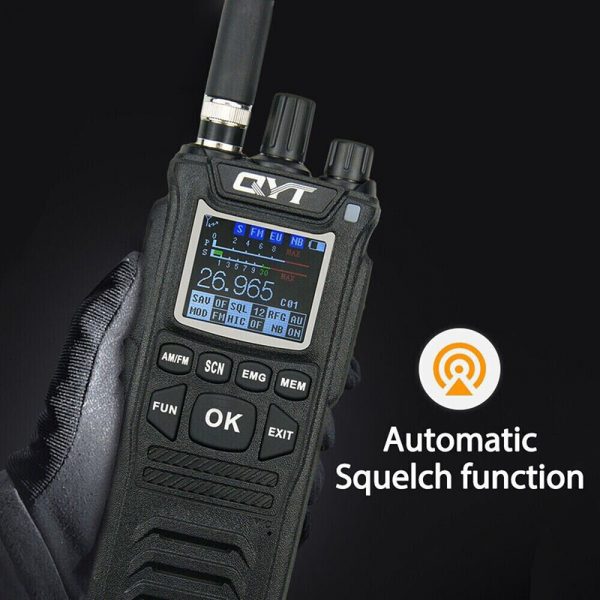

▲Automatic Squelch function
▲Squelch level adjustable
▲Receive gain control adjustment
▲Editable channel scan
▲Shortcut channel 9/19
▲NB/ANL wave filter
▲Audio high frequency cancellation
▲Keyboard Lock

Note: this cb radio CB-58 can’t to program.
