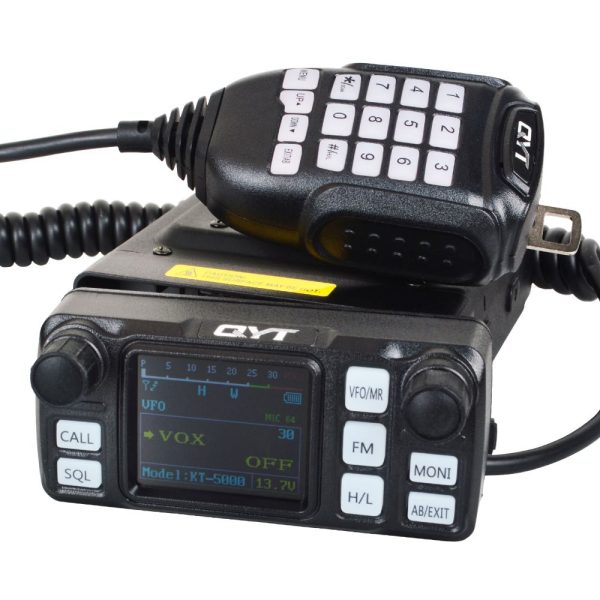

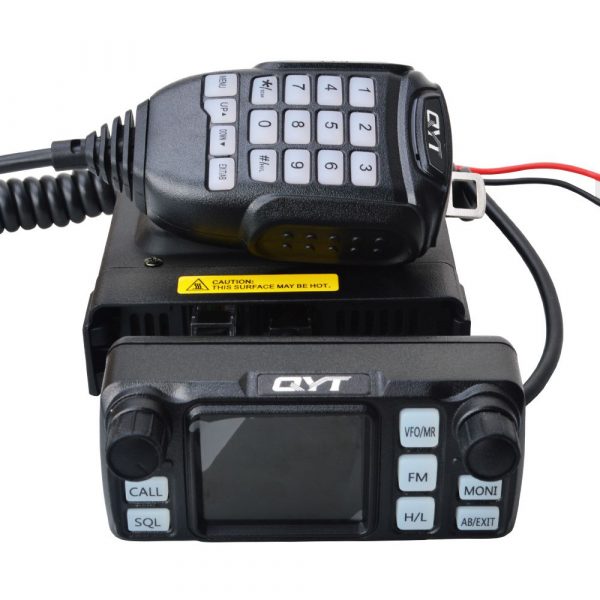

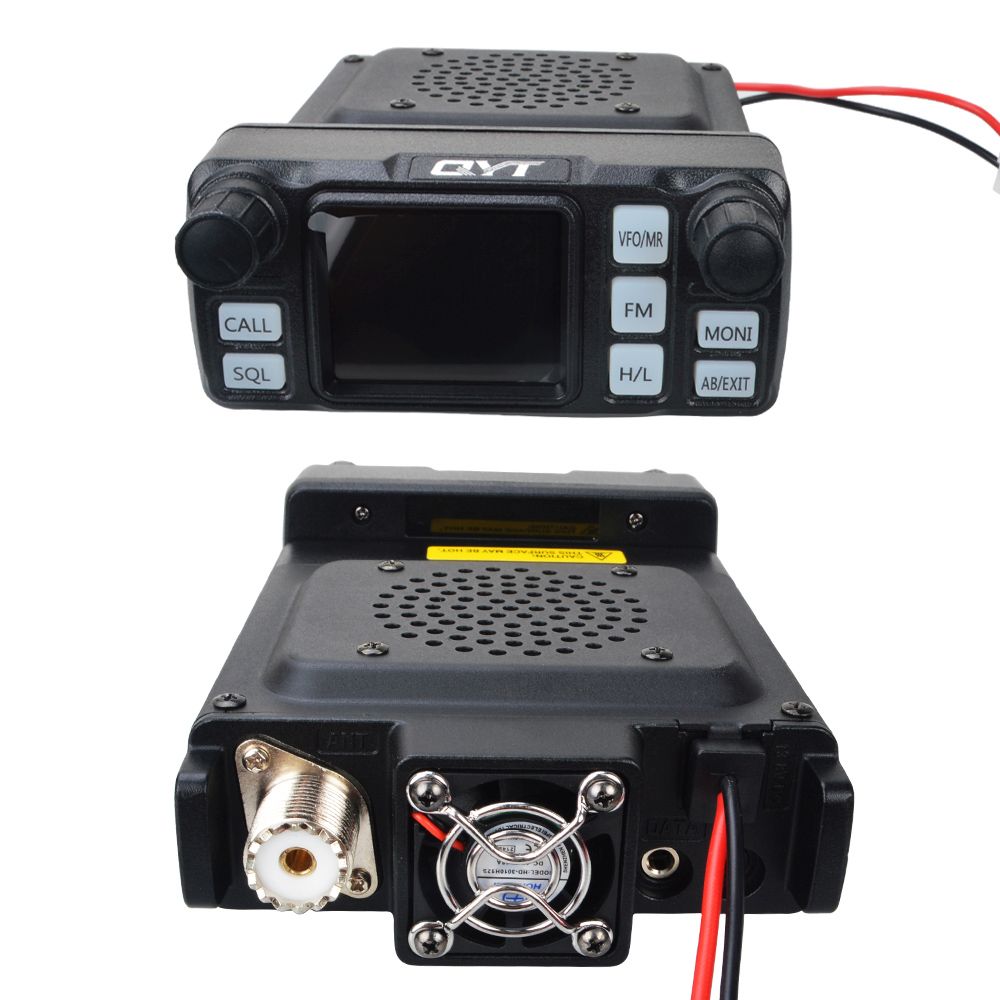

QYT KT-5000 VHF UHF Dual Band Detachable Front Panel VOX Scrambler FM Mobile Radio

Walkie Talkie QYT KT-5000 25W 200 Channel VHF UHF Dual Band VOX Mini Color Screen Detachable Front Panel Scrambler FM Mobile Radio

Features:

– Power by 12V car cigarette lighter

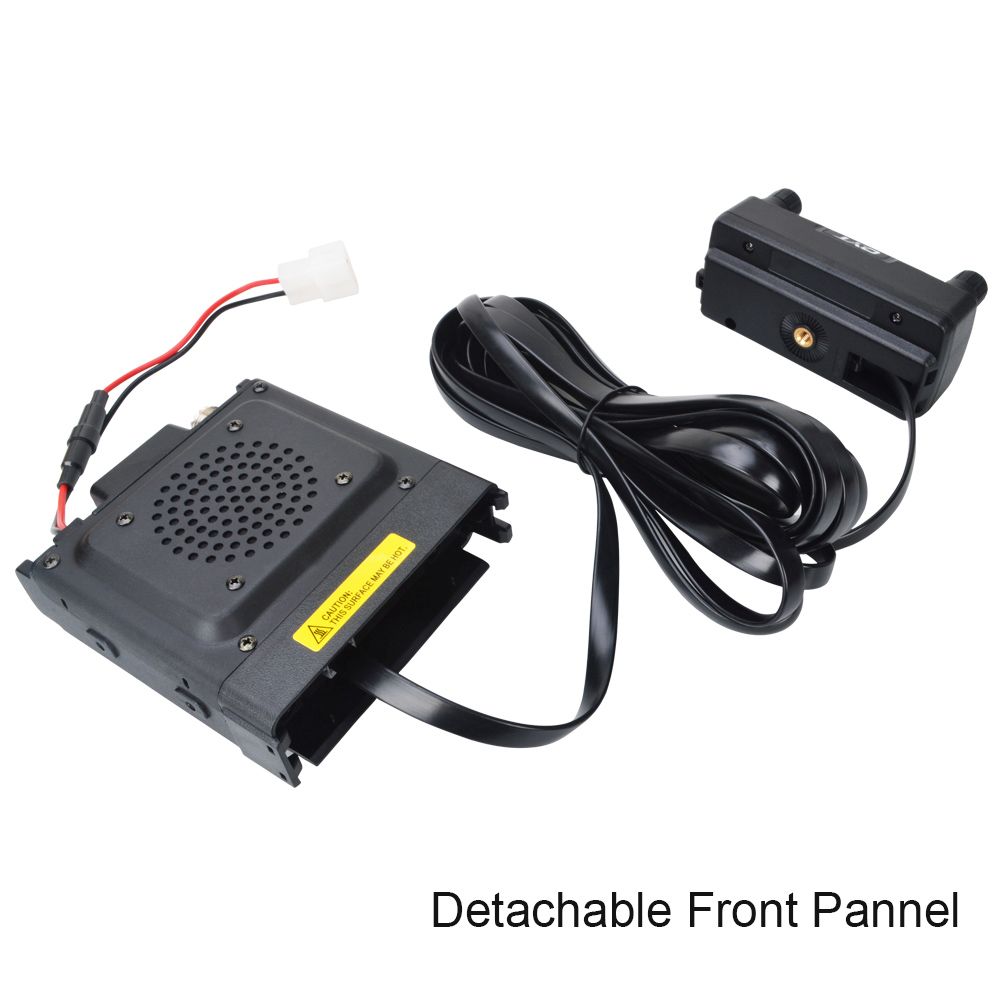

– Detachable front panel can be mounted at the most desirable operating position by a supplied 5 meter extendable connect cable

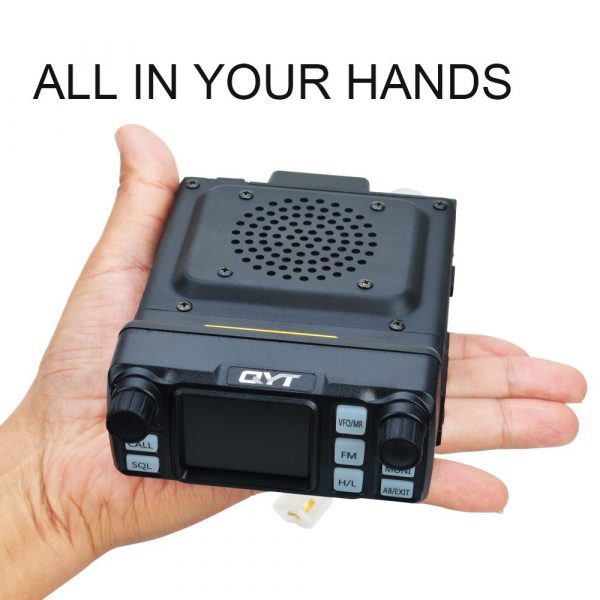

-Mini Size design, small as your palm

-Color Screen

-VOX function (Voice Operation Exchanged), Free your hands for a safety driving

-2.50/5.00/6.25/10.00/12.50/25.00KHz frequency space

-Scrambler

-Dual Band Standby working Mode (TMR)

-Carrier/CTCSS/DCS/DTMF/2TONE/5TONE

-200 Memory Channels

-VHF: 136-174MHz & UHF: 400-480MHz

-76-108.9MHz FM commercial Radio (Receiving only)

Specifications:

Item number	KT-5000
General
Frequency Range	DUAL Band: VHF:136-174MHz, UHF: 400-480MHz
Number of Channel	200
Channel Spacing	25KHz(Wide Band) 20KHz(Mid-Band) 12.5KHz(Narrow Band)
Phase lock step	5KHz, 6.25 KHz, 10 KHz ,12.5 KHz, 25 KHz
Working Voltage	13.8V DC±10%
Squelch way	Carrier/CTCSS/DCS/5Tone/2Tone/DTMF
Frequency Stability	±2.5ppm
Operating Temperature	-20℃~+60℃
Dimension(W x H x D)	95(W) x 43(H) x 155(D)mm
Weight	500g

Receiver
	Broadband	Narrow band
Sensitivity	≤ 0.25μV	≤ 0.35μV
Channel choice	≥70dB	≥60dB
Intermodulation	≥65dB	≥60dB
Spurious Rejection	≥70dB	≥70dB
Audio response	+1~ -3dB(0.3~3KHz)	+1~ -3dB(0.3~2.55KHz)
Signal to noise ratio	≥45dB	≥40dB
Audio distortion	≤5%
Audio output power	≥2W±10%

Transmitter
	Broadband	Narrow band
Output power	25W/20W(VHF/UHF)
Modulation Mode	16KΦF3E	11KΦF3E
Channel Power	≥70dB	≥60B
Signal to noise ratio	≥40dB	≥36dB
Parasitic harmonic	≥60dB	≥60dB
Audio response	+1~ -3dB(0.3~3KHz)	+1~ -3dB(0.3~2.55KHz)
Audio distortion	≤5%

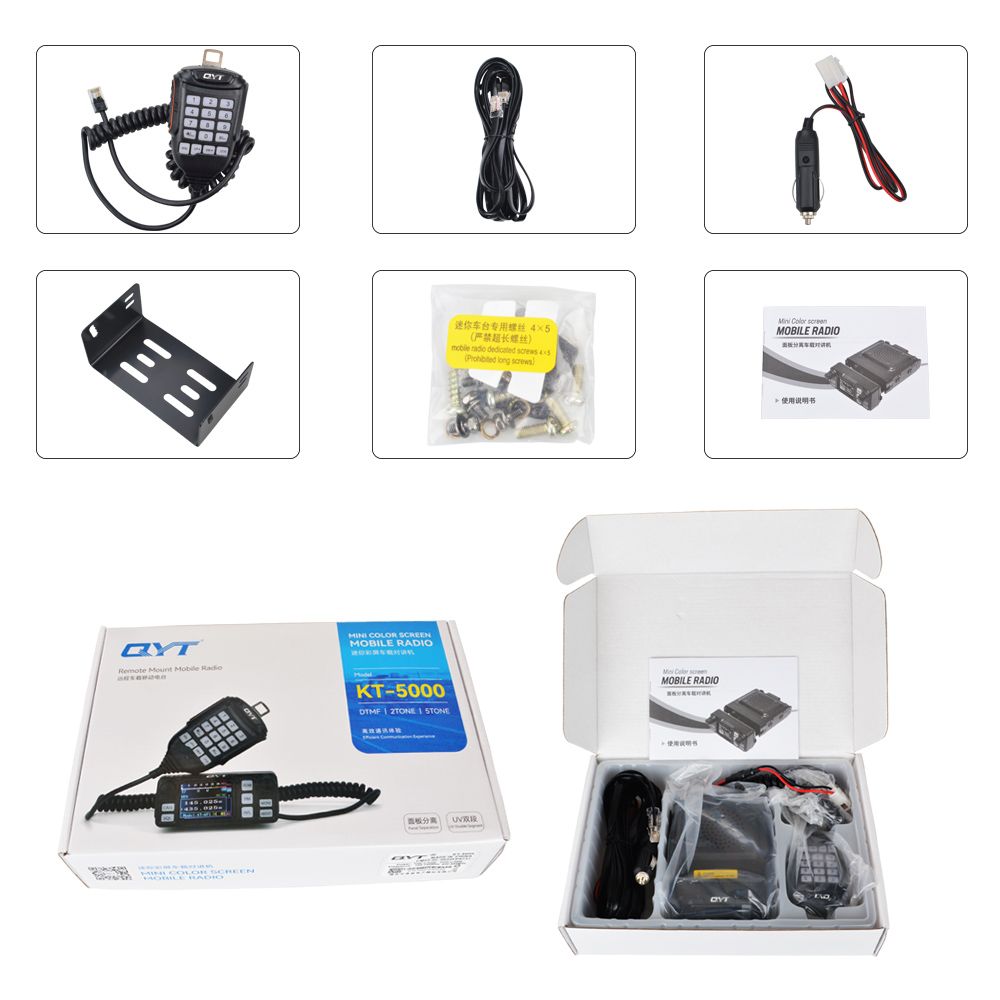

Each Set Package Contain:

1× QTY KT-5000 Mini Mobile Radio

1× Microphone

1× Car Power Cable

1× 5 Meter Extendable Connect Cable

1× Mounting Bracket

1× Screw Sets

1 × User Manual
