Senhaix N60 Network Radio 4G LTE PoC WiFi Bluetooth Android Smart Intercom GPS GSM Antenna Zello Wireless Communication

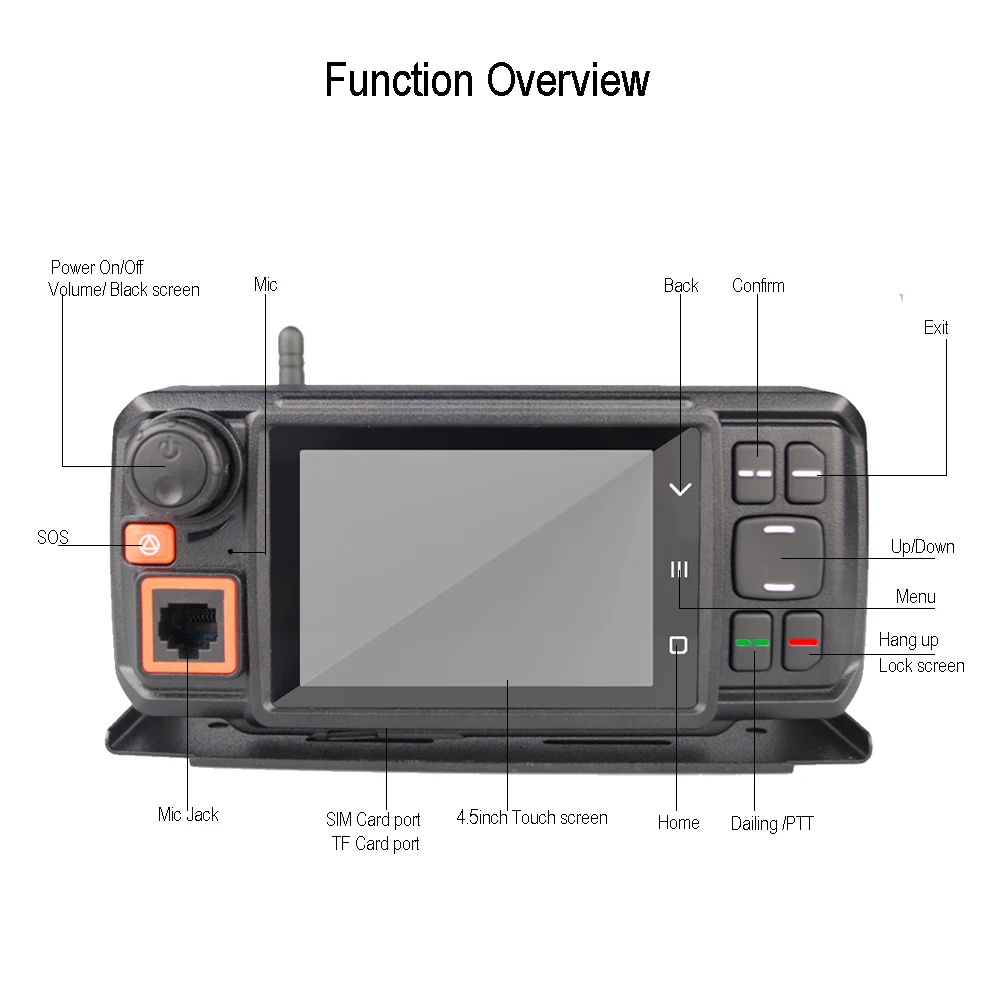

Product Features
1. OS-Android
2. Screen – 4.5 Touch LCD display
3. GPS Funtion(Logitute&Latitute Location)
4. WIFI
5. Bluetooth
6. Online Upgrade
7. Play Store
8. Phone Function
9. SOS Function
10. Zello APP
11. All Call, Group Call & Individual Call

Technical Specifications

• Model No.SPTT-N60
• Dimension170x80x85mm
• Weight380g
• Screen Size4.5 inches Touch LCD
• Working VoltageDC 10-24V
• Working Temperature-30℃ to +75℃
• Platform ManagementREAL PTT
• Talk RangeUnlimited
• RF Parameter
• Frequency RangeGSM 850/1900MHz 900/1800MHz
• WCDMA 850/1900MHz 900/2100MHz
• Maximum Output PowerWCDMA 2100/1900/900/850MHz:
• Power class 3 (+24dBm +2.5/-1.5dBm)
• GSM/GPRS 850MHz/900MHz:
• Power class 4 (+33dBm +2.5/-0.5dBm)
• GSM/GPRS 1800MHz/1900MHz:
• Power class 1 (+30dBm +2.5/-0.5dBm)
• Receiving SensitivityWCDMA 2100: ≤-108dBm
• WCDMA1900: ≤-109dBm
• WCDMA900: ≤-109dBm
• WCDMA850: ≤-109dBm
• GSM850/900/1800/1900: ≤-107dBm
• GPS
• GPS Positioning, Support A-GPS function, 1.57542GHz;
• SensitivityCatch -144dBm, Track -159dBm
• Technical Sensitivity
• Data Speed RateGSM CS: UL 9.6kpbs/ DL 9.6kpbs
• GPRS: Multi-slot Class 10
• EDGE: Multi-slot Class 12
• WCDMA CS: UL 64kpbs/ DL 64kpbs
• WCDMA PS: UL 384kpbs/ DL 394kpbs
• ProtocolHSDPA/WCDMA/EDGE/GPRS/GSM

• WIFIIEEE 802.11 b/g/n , 2.4G;
• Maximum RF power≤20dBm
• Receiving SensitivityIEEE 802.11 g: ≤-65dBm;

• BT Support V4.0,V3.0,V2.1
• Maximum RF powerClass 1 ≤10dBm;
• Receiving SensitivityGFSK: ≤-95dBm,DQPSK: ≤-94dBm , DPSK: ≤-88dBm;

We are professional manufacturer of two way communications and PoC Mobile Radio.
