Hotselling Walkie Talkie Duplexers SGQ-150D 50W VHF136-174MHz customizable frequency Portable Duplexer

Original price was: $176.48.Current price is: $108.95.

& Free Shipping

Availability: 999 in stock

Quantity Discount (%) Price
1 — $108.95
2 - 4 0.92 % $107.95
5 - 9 3.67 % $104.95
10+ 9.18 % $98.95
Guaranteed Safe Checkout
modname=ckeditor

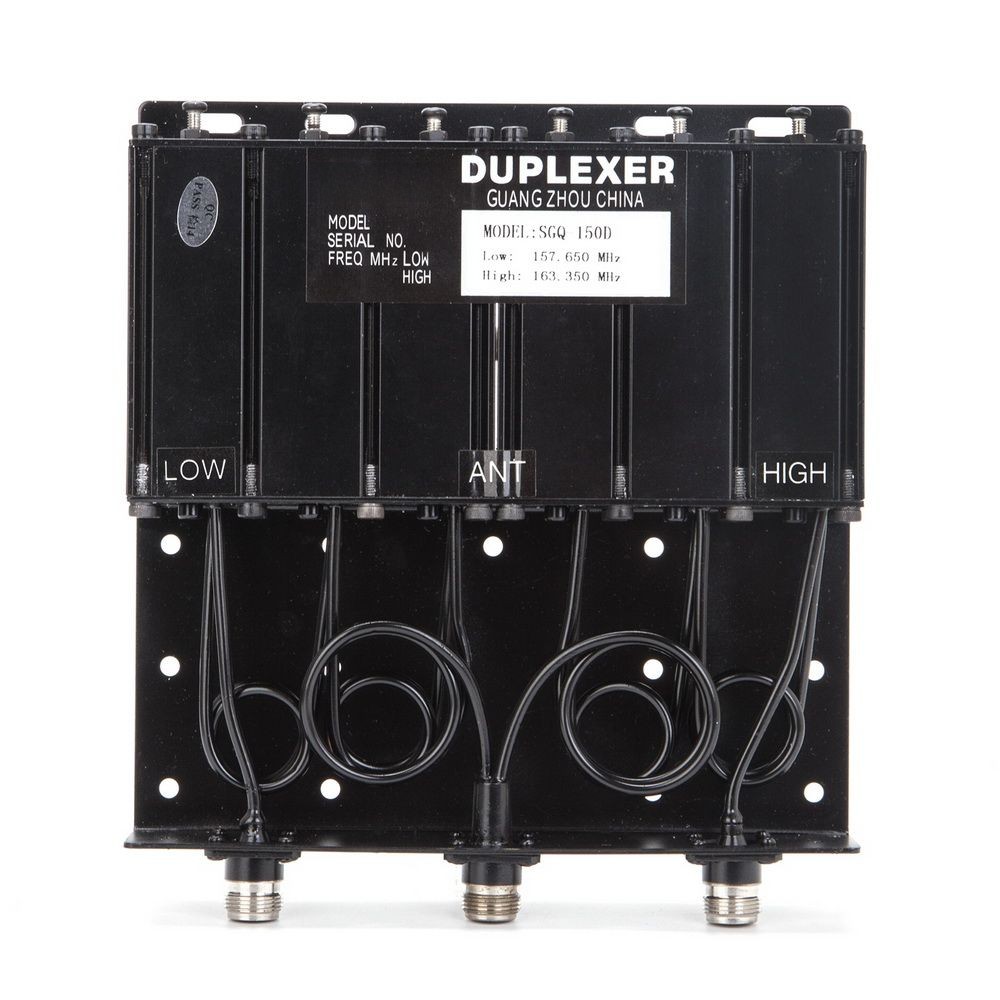

SGQ-150D 50W VHF136-174MHz customizable frequency Portable Duplexer

Note：
Be sure to note the required frequency point, otherwise the default TX：157.650/RX：163.350MHZ

Specification:
Product Number：SGQ-150D
Frequency Range：VHF 136-174MHz
Bandwidth：±150KHz
Frequency Spacing：5.7MHz
Isolation Loss：≤1.0dB
V.S.W.R：≤1.3
Isolation：≥80dB
Suppression：≥80dB
Impedance：50Ω
Max.power Input：40-80W(50W）
Standard Termination：N-Female
Operating temperature：-25℃-+55℃
Operating Humidity：5-95%
Dimensions：225×154×40mm
Weight：1.5kg

Package Including:
1* SGQ-150D Portable Duplexer



Weight 1 kg
Dimensions 300 × 400 × 100 cm
