SGQ-150K 100W VHF Duplexer Customizable frequency Portable Duplexer For Radio Repeater

Leave a Comment / By /
Sale!

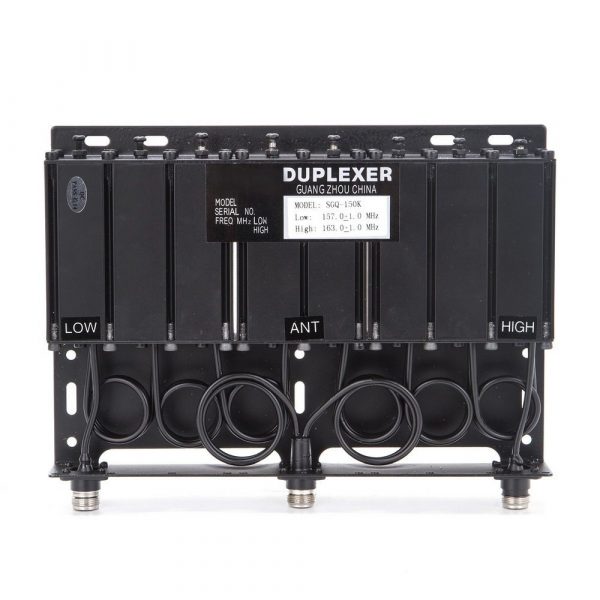

SGQ-150K 100W VHF Duplexer Customizable frequency Portable Duplexer For Radio Repeater

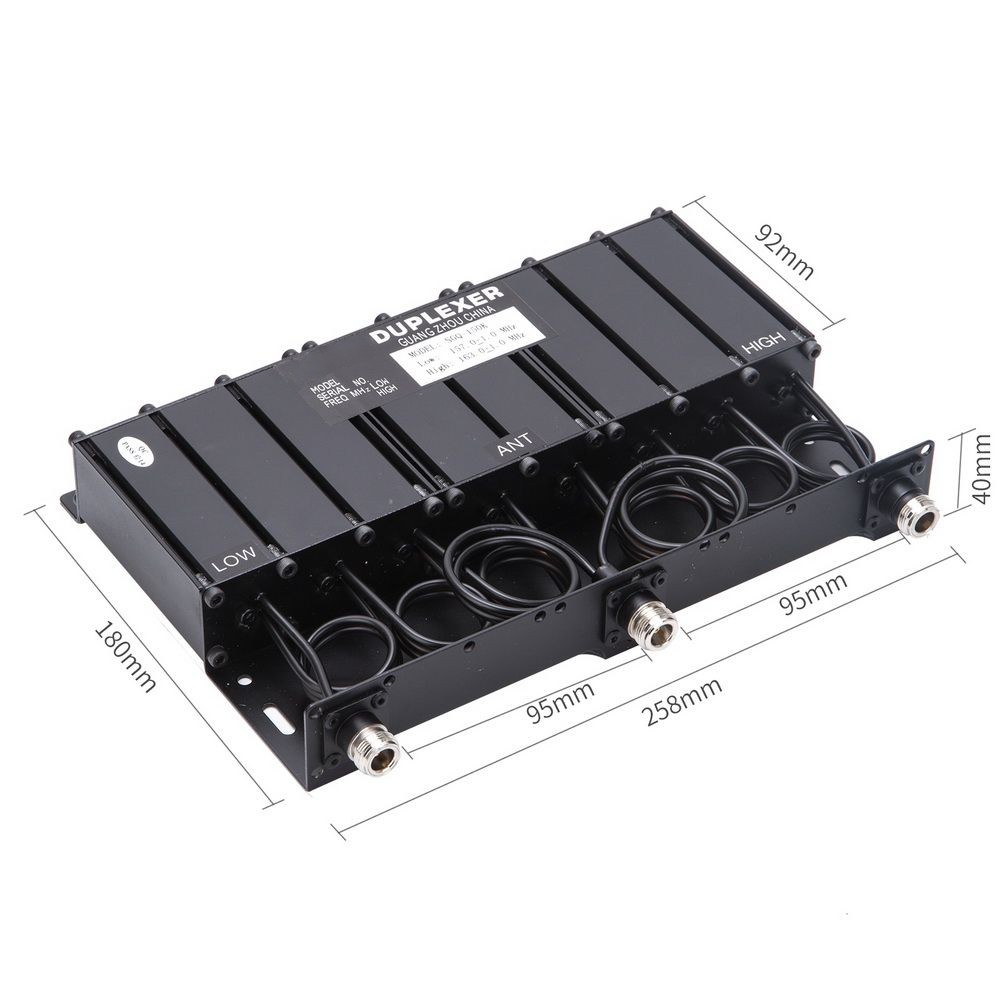

SGQ-150K 100W VHF Duplexer Customizable frequency Portable Duplexer For Radio Repeater - Image 2

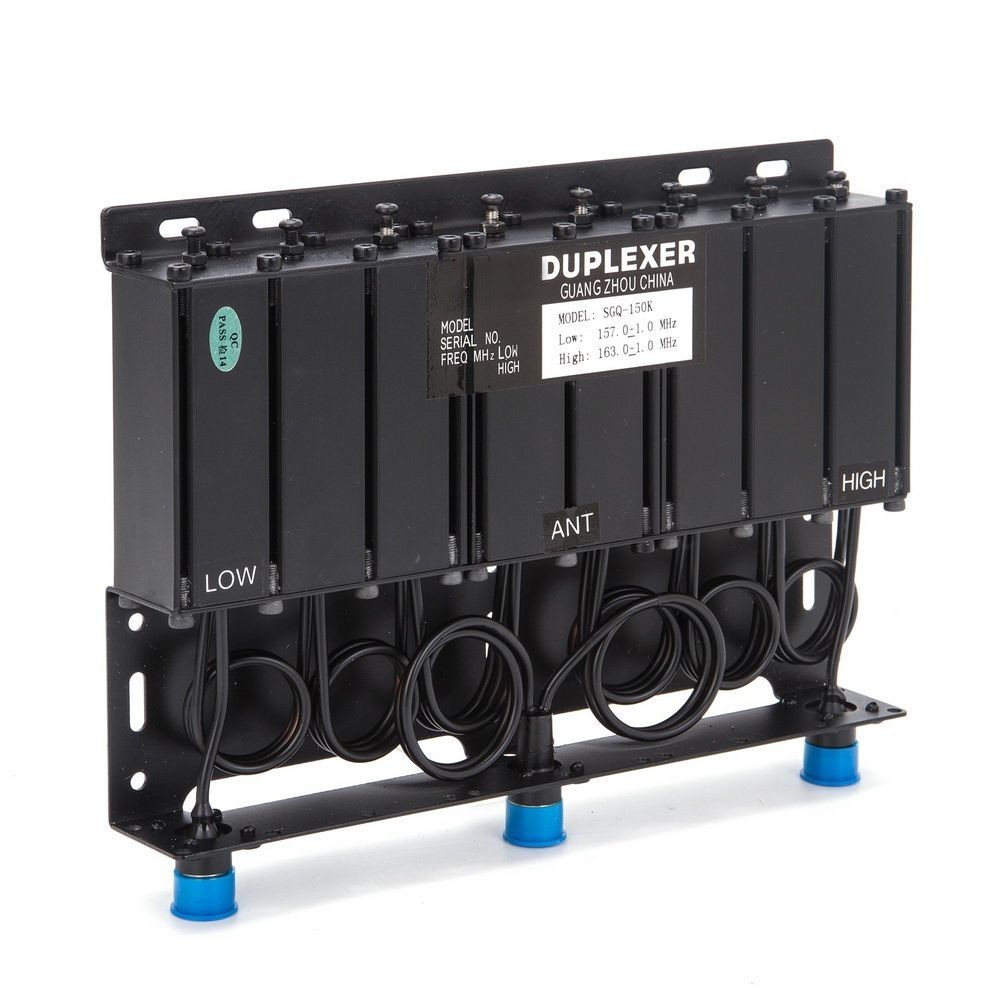

SGQ-150K 100W VHF Duplexer Customizable frequency Portable Duplexer For Radio Repeater - Image 3

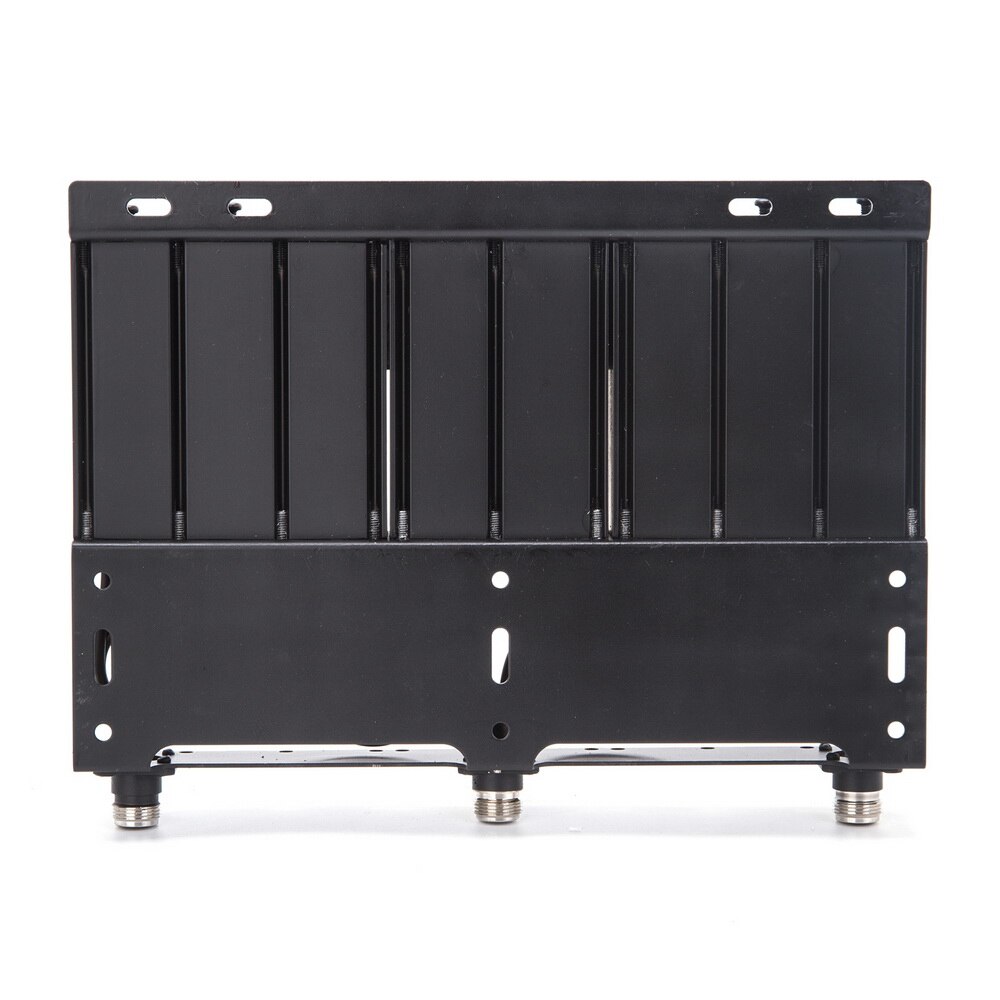

SGQ-150K 100W VHF Duplexer Customizable frequency Portable Duplexer For Radio Repeater - Image 4

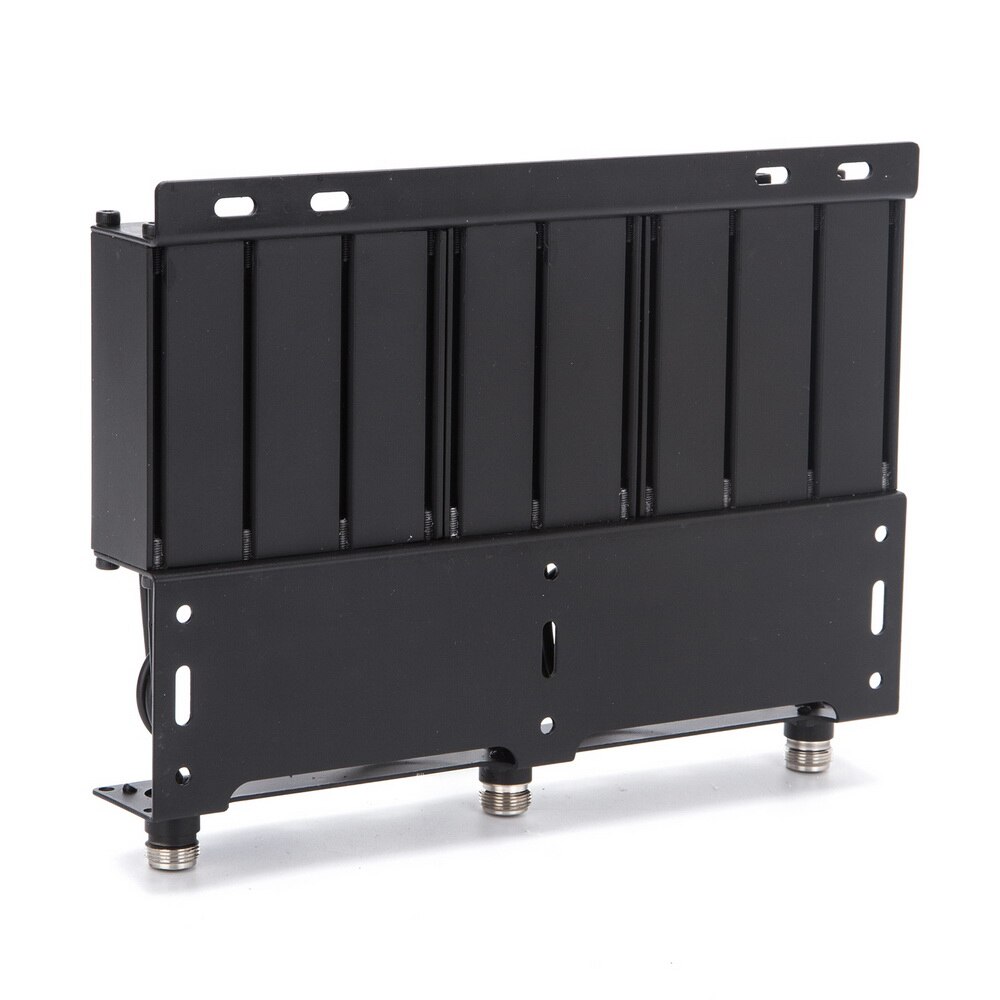

SGQ-150K 100W VHF Duplexer Customizable frequency Portable Duplexer For Radio Repeater - Image 5

SGQ-150K 100W VHF Duplexer Customizable frequency Portable Duplexer For Radio Repeater

Original price was: $300.11.Current price is: $184.26.

& Free Shipping

Availability: 999 in stock

Quantity Discount (%) Price
1 — $184.26
2 - 4 0.54 % $183.26
5 - 9 2.17 % $180.26
10+ 5.57 % $174.00
Guaranteed Safe Checkout
modname=ckeditor

Walkie Talkie Duplexers SGQ-150K 100W VHF136-174MHz customizable frequency Portable Duplexer

Note：
Be sure to note the required frequency point, otherwise the default TX：157.0±1.0MHz/RX：163.0±1.0MHz

Specification:
Product Number：SGQ-150K
Frequency Range：VHF136-174MHz
Bandwidth：±1.0MHz
Frequency Spacing：6.0MHz
Isolation Loss：≤1.0dB
V.S.W.R：≤1.5
Isolation：≥80dB
Suppression：≥80dB
Impedance：50Ω
Max.power Input：80-150W(100W）
Standard Termination：N-Female
Operating temperature：-25℃-+55℃
Operating Humidity：5-95%
Dimensions：225×154×40mm
Weight：2.1kg

Package Including:
1* SGQ-150K Portable Duplexer

Weight 1 kg
Dimensions 300 × 500 × 100 cm
