10w walkie talkie TYT TH-UV8200 IP67 Waterproof DUAL BAND GPS DTMF Portable FM two way radio analog VOX 256CH color diplay radio
Features:
- IP67 waterproof analog two way radio
- Dual Band,dual display,Duan wait and dual standby
- 256 groups of memory channels
- Wide/Narrow bandwidth selection (25kHz/12.5kHz)
- Handsfree VOX function
- English/Chinese Voice prompt
- CTCSS/DCS encoding and decoding
- Non-standard CTCSS/DCS input
- Auto Scan
- ANI function
- FM radio receiver and 25 memory radio stations
- PC program
- 1750 Tone
- DTMF decoding and encoding
- Remote stun,kill and activated
- Man down
- 1.77 inch color Display
- Emergency alarm
- Roger beep
- Tail tone elimination
- GPS position
- Step: 0.50/2.50/5.00/6.25/10.0/12.5/25.0/37.5/50.0/100KHz
Specifications
| General | |
| Frequency Range | 136-174MHz & 400-520MHz |
| Frequency Stability | ±2.5ppm |
| Channel Capacity | 256 channels |
| Operating Voltage | DC 7.2V |
| Antenna | SMA-Male Dual band High gain antenna |
| Antenna Impedance | 50 ohm |
| Mode of operation | Same or different frequency simplex |
| Dimension (H*W*D) | 120*55*33mm |
| Transmitter | |
| RF POWER | High≤ 10W
Low ≥5W |
| Modulation Type (Wide/Narrow band) | 16K Ø F3E/11K Ø F3E |
| Max. Fr. Deviation (Wide/Narrow band) | ≤ 5KHz/≤ 2.5KHz |
| Adjacent Ch. Power(Wide/Narrow band) | ≤-65dB/≤ -60dB |
| Spurious Power | ≤7µW |
| Pre-emphasis character | 6dB/Each frequency doubling the increment |
| Modulated noise | <-40dB |
| Current | ≤2.8A(10W) ≤1.8A(5W) |
| DCS/CTCSS Frequency deviation | 0.6KHz ±0.15KHz,0.4KHz± 0.1KHz |
| Intermediation sensitivity | 8~12mV |
| Modulation distortion | <5% |
| Receiver | |
| Reference Sensitivity | <-122dBm (12Db SINAD) |
| Audio power | 1W |
| Audio Distortion | <5% |
| Blocking | ≥85 |
| Inter-modulation (wide/Narrow band) | ≥60dB ≥55dB |
| Adjacent Ch. Selection | ≥65dB ≥60dB |
Note: Specifications will be revised without notice due to technical improvement. Thank you.

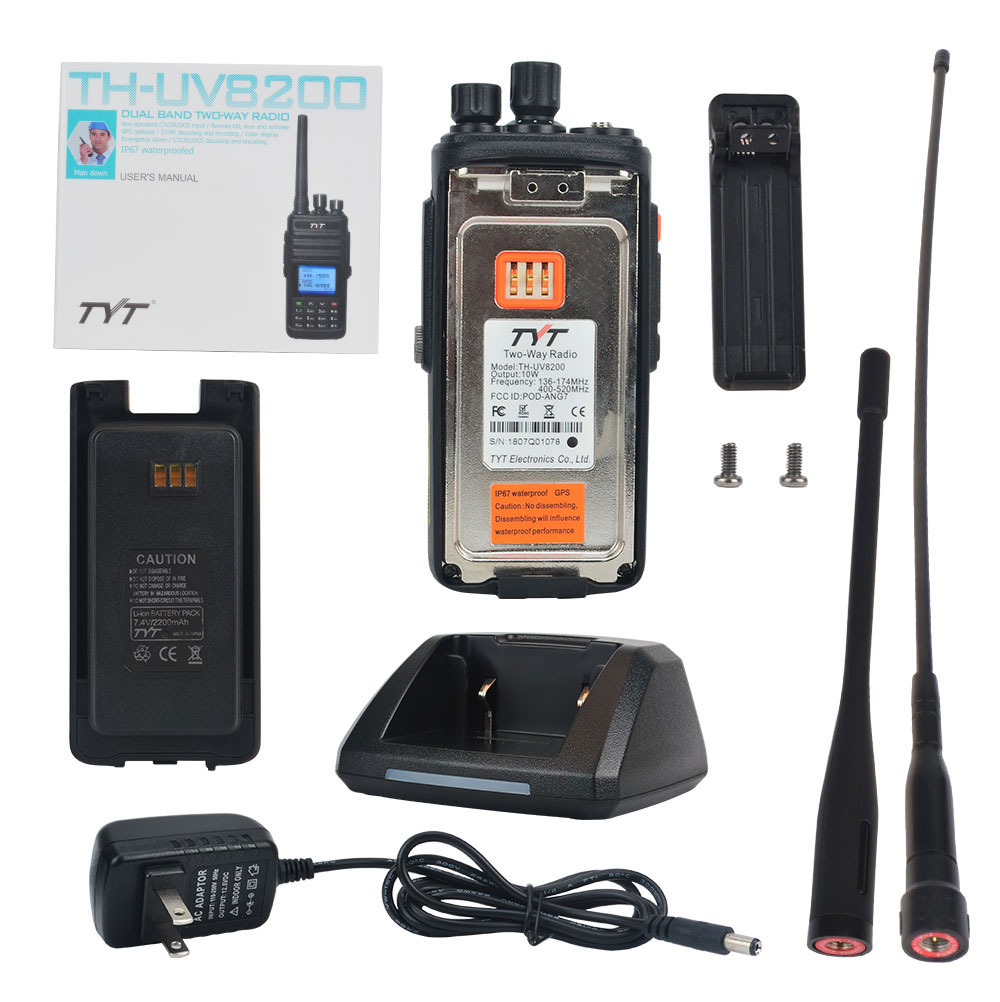

Package Contains:
1 x TH-UV8200 Dual Band GPS radio
1 x DC7.4V 2200mAh Li-ion battery Pack
1 x 16.5cm SMA-MALE standard antenna
1 x 37.5cm SMA-Male high gain antenna
1 x Belt clip
1 x Desktop charger
1 x 110-250V AC Adapter
1 x English Users’ manual

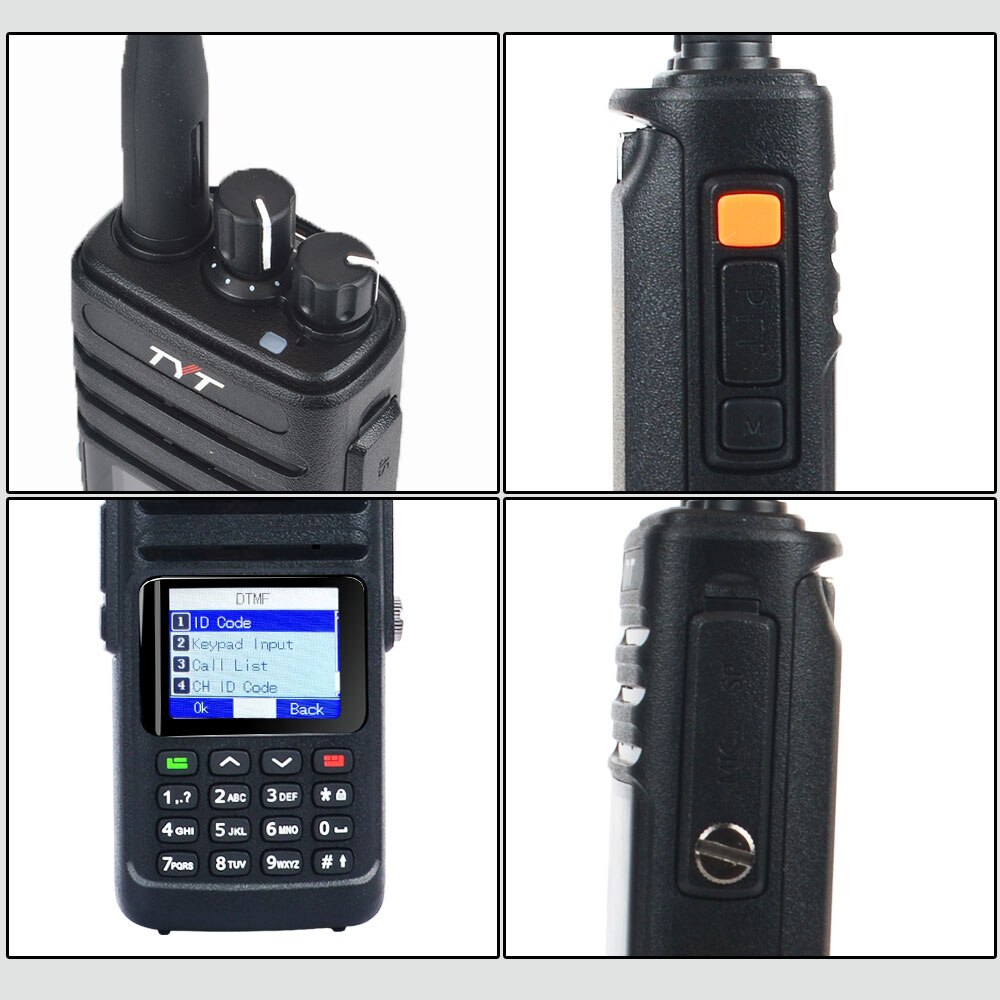

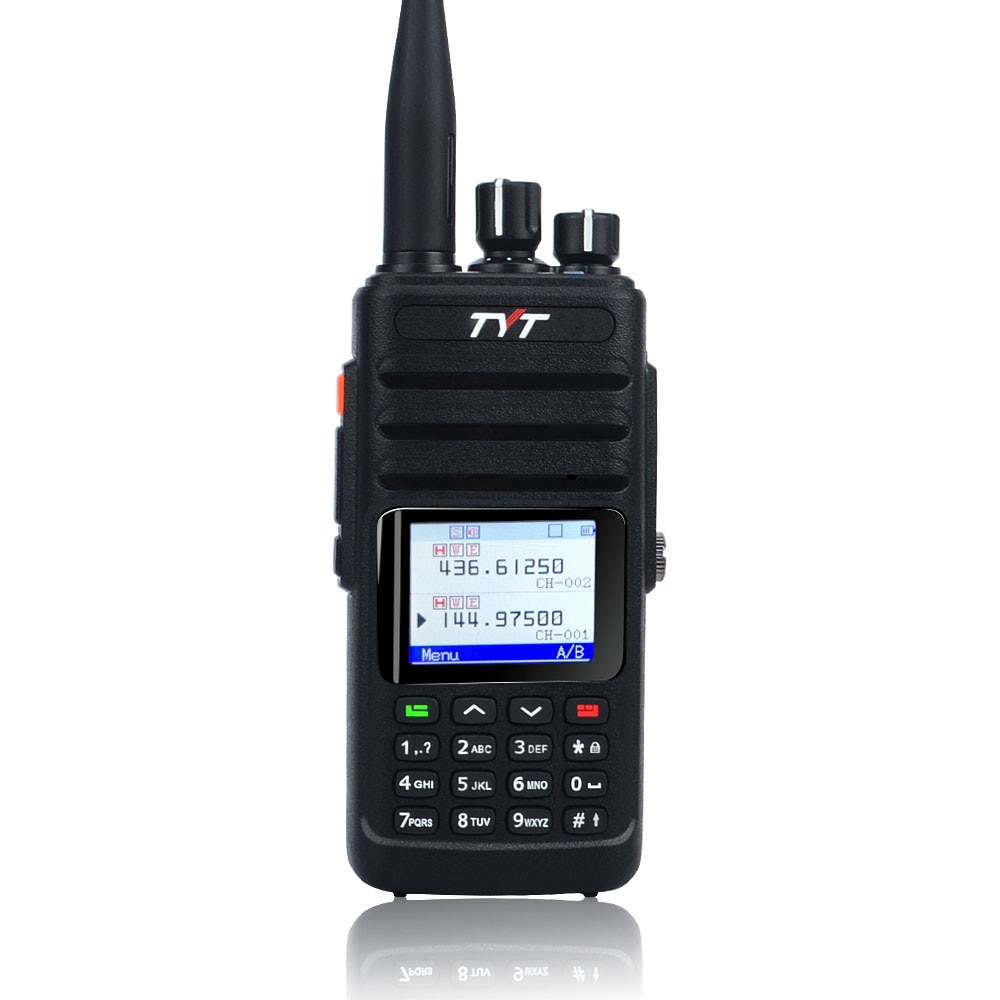

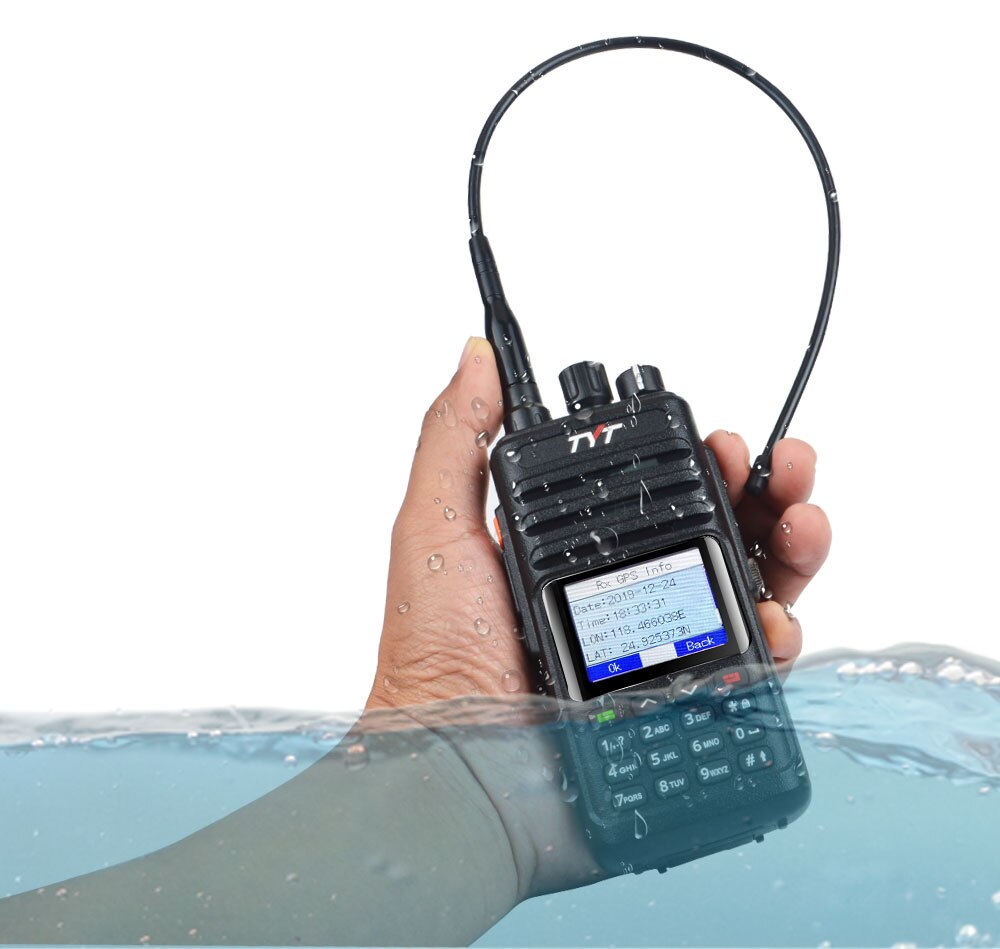

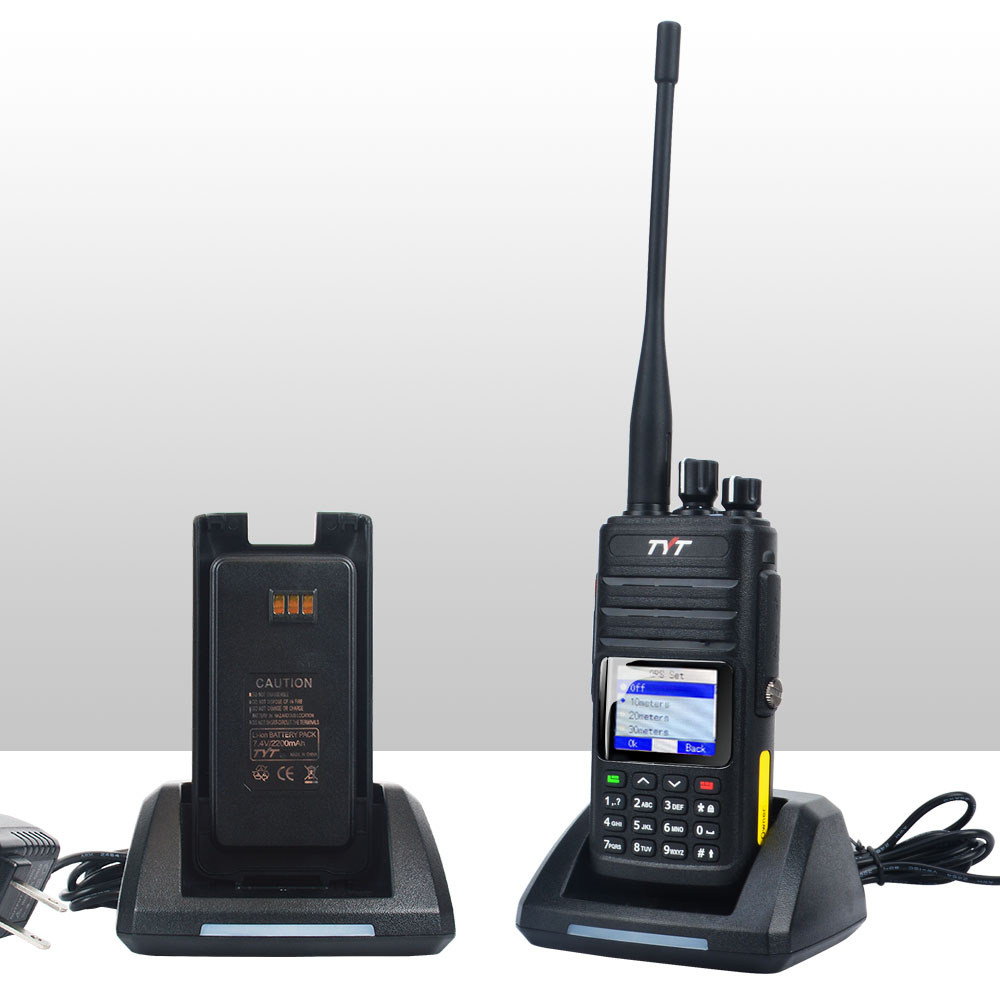

Photos:
