TYT TH7800 Car Radio Walkie talkie Dual Band VHF UHF Mobile Transceiver

Sale!

TYT TH7800 Car Radio Walkie talkie Dual Band VHF UHF Mobile Transceiver

$217.00

& Free Shipping

Availability: 999998 in stock

Quantity Discount (%) Price
1 $217.00
2 - 4 0.92 % $215.00
5 - 9 3.69 % $209.00
10+ 6.45 % $203.00
Guaranteed Safe Checkout

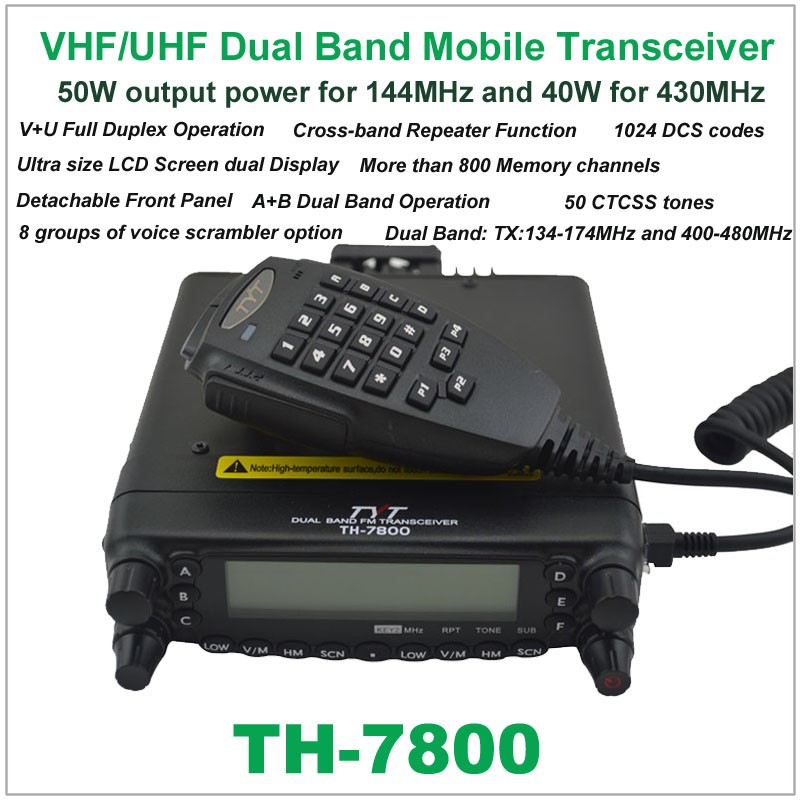

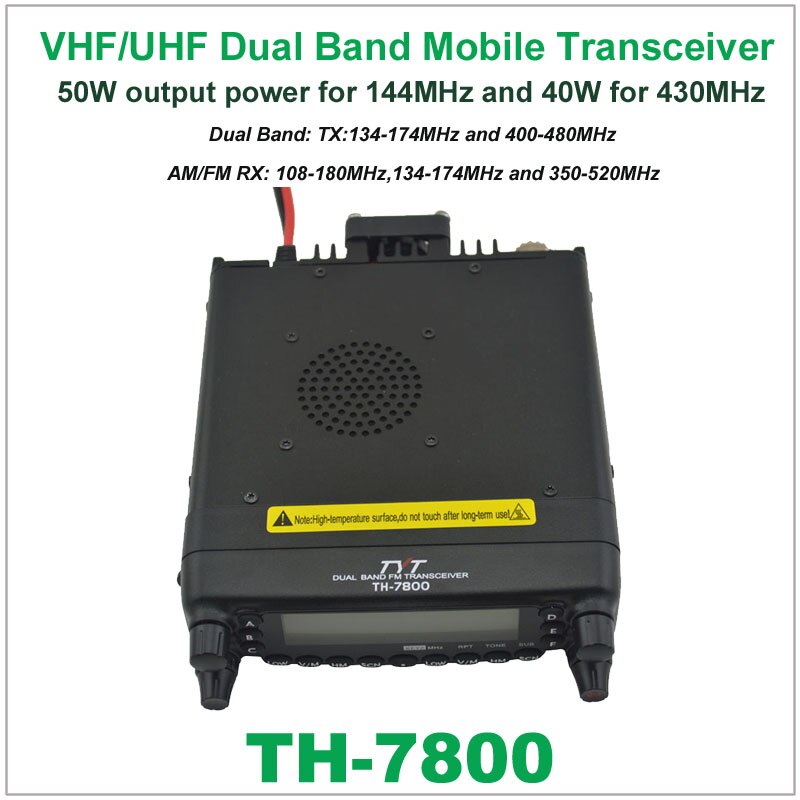

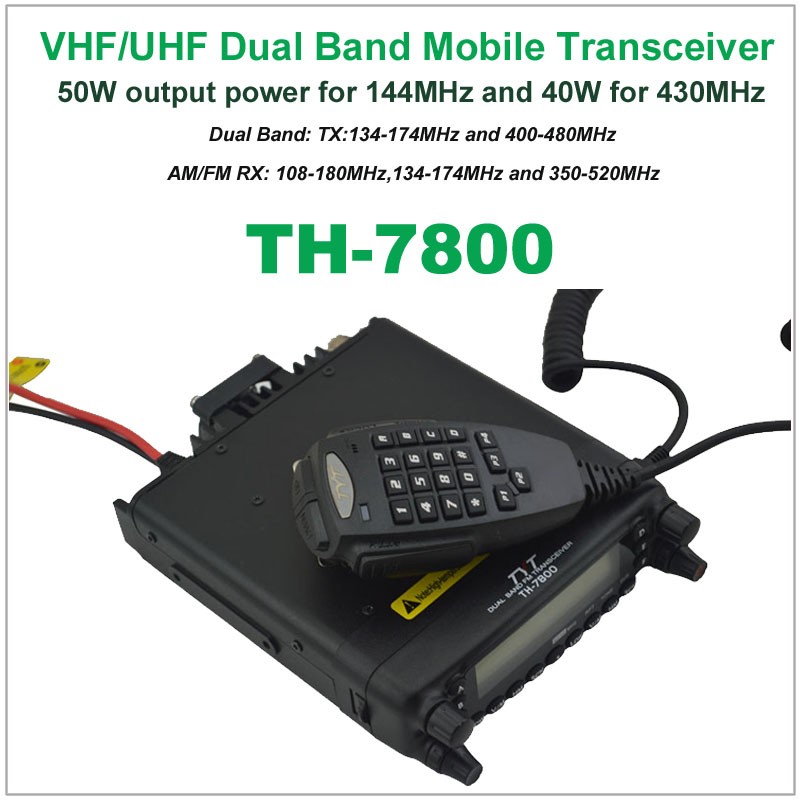

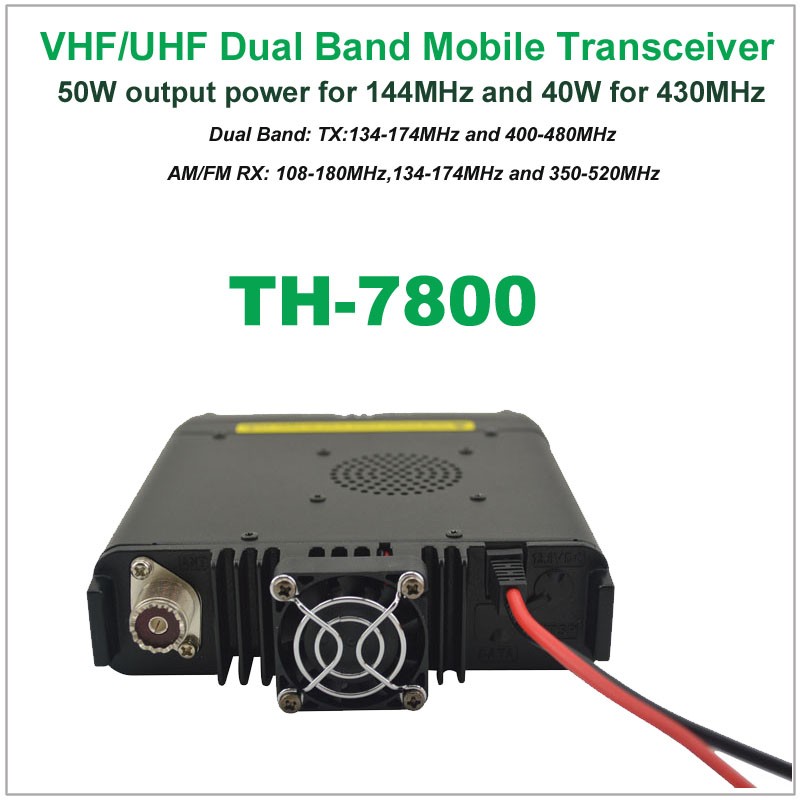

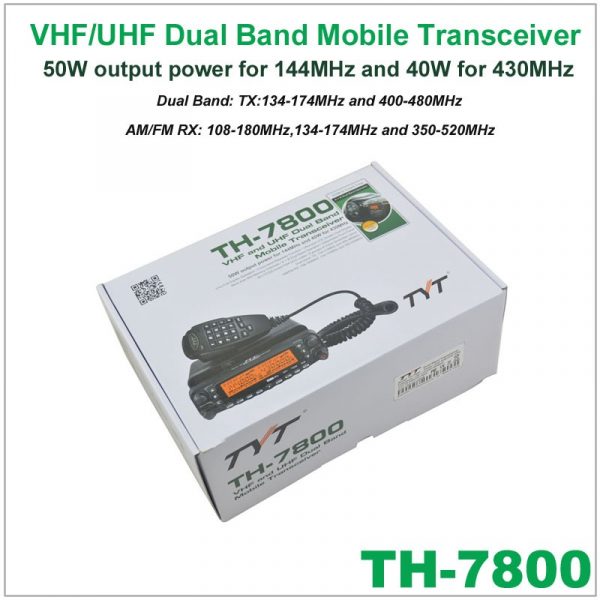

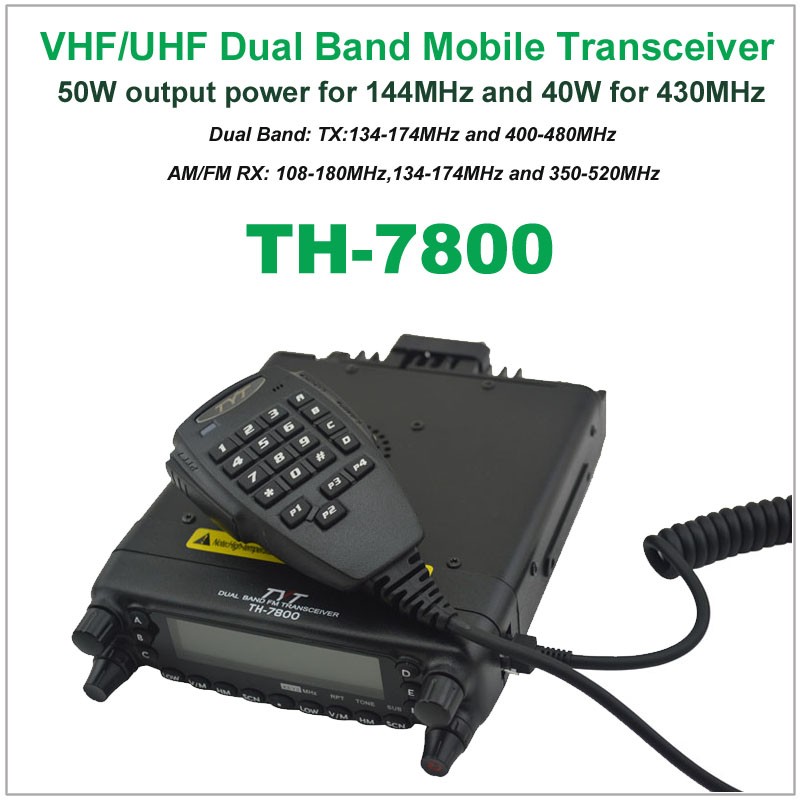

TYT TH-7800 TH7800 Car Radio Walkie talkie Dual Band 136-174/400-480MHz 50W VHF/40W UHF Mobile Transceiver Two way radio

Main Features:

1.Cover 144/430MHz four transmitting bands

2.Wide band AM receiving and FM receiving for 108-180MHz,134-174MHz,350-520MHz

3.Independent controls for each left and right band

4.V+U simultaneous receive capability

5.Built-in V+U cross-band repeater and full duplex capability

6.800 memory channels and independent setting per channel

7.50W of high power output for VHF band and 40W for UHF band

8.Standard 50 groups of CTCSS tone and 104 groups of DCS code

9.User-defined CTCSS tone & DCS code capability

10.DTMF/2-Tone/5-Tone for selective calling

11.Voice compander and encryption scramble

12.Automatic Repeater Shift(ARS)

13.Detachable front controller and remote mounting capability

14.Ultra-size LCD dual display screen

15.User-programmable microphone keys

Specifications:

                                                  General
Frequency Range Dual Band TX:134-174MHz and 400-480MHz

AM/FM RX: 108-180MHz,134-174MHz and 350-520MHz

Channel Capacity 809 channels
Channel Steps 2.5/5/6.25/10/12.5/15/20/25/50KHz
Mode of Emission F3
Antenna Impedance 50 ohm,unbalanced(Antenna Duplexer built-in)
Frequency Stability ±5ppm
Operating Temperature Range -20°c~+60°c
Supply Voltage 13.8V
Current Consumption  RX:0.5A(Squelched)

TX:8.0(50/430MHz),8.5A(29/144MHz)

Dimensions(W×H×D) 140×41.5×168mm
Weight 1000g
                                               Transmitter
Output Power 50/20/10/5W(144MHz)

40/20/10/5w(430MHz)

Modulation Type Variable Reactance
Maximum Deviation Better than -60dB(29MHz: Better than -50dB)
Modulation Distortion Less than 3%
Microphone Impedance 2KΩ
                                                 Receiver
Circuit Type Double-conversion super-heterodyne
Intermediate Frequencies 49.95MHz/45KHz(Left band)

38.85MHz/450KHz(Right band)

Sensitivity (for 12dB SINAD) Better than 0.2 µV
Squelch Sensitivity Better than 0.16 µV
Selectivity 12KHz/30KHz
Maximum AF Output 2W 8µ for 5% THD
AF Output Impedance 4-6µ

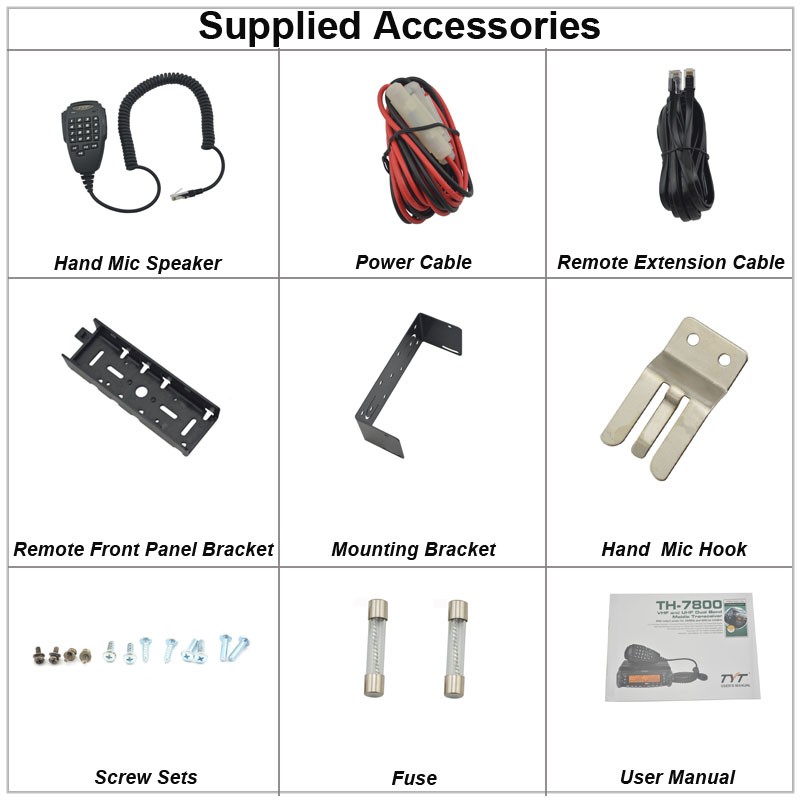

Each Set Package Contain:

  • 1 x TH-7800 Mobile Transceiver
  • 1 x Microphone
  • 1 x Mobile Mounting Bracket
  •  1 x DC Power Cord with Fuse
  • 2 x Spare Fuse 15 A
  • 1 χ Microphone Clip
  • 1× Screw Sets
  • 1× Remote Front Panel Bracket
  • 1 x English Operating Manual
  • 1 x Extension Cable

Pictures:

Weight 1.2 kg
Dimensions 400 × 500 × 100 cm
