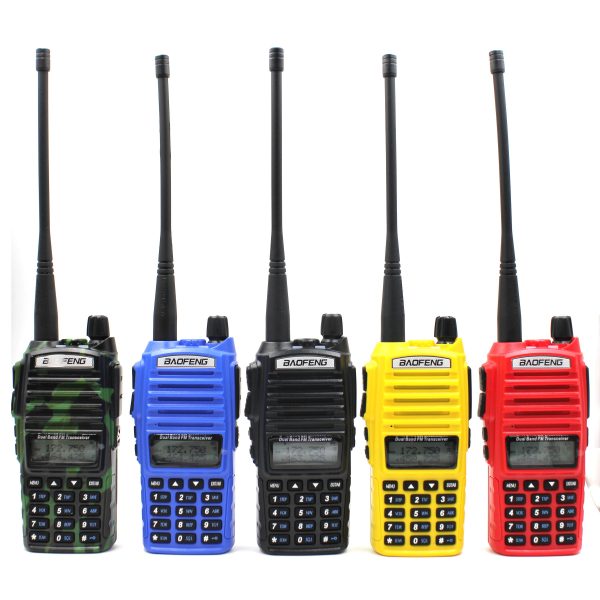

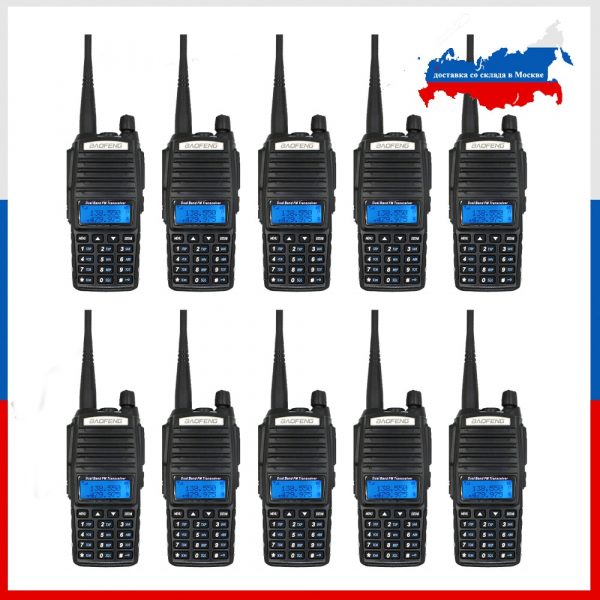

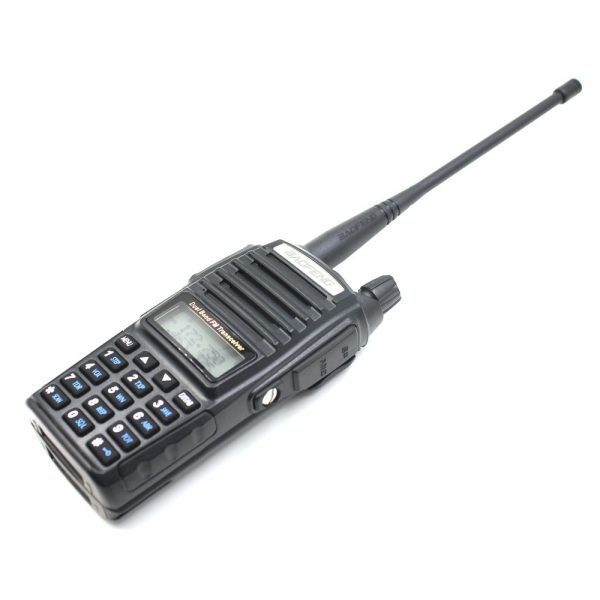

Wholesale 10pcs Baofeng UV-82 5W Walkie Talkie VHF UHF Dual Band 136-174&400-520MHz Baofeng UV82 Two Way Radio
Features:
65-108MHz FM Radio
Wide band TX &RX 136-174MHz 400-520MHz
Strong flashlight
Dual band dual display dual standby
40 shortcut menu
English prompts guide
2.5/5/6.25/10/12.5/20/25 50KHz channel step
High Middle Low power switchable
0-4 level battery save mode
0-10 level VOX function
Wide narrow band optional
0-10 level display illumination
Dual standby Dual Reception ON OFF
Keypad Beep ON OFF
TOT 15-600s setting
PTT ID & ANI ID
DTMF
Multi scan function
Busy channel lock out
Keypad lock
Tail tone eliminate
Off blue orange purple 4 color optional backlight
1000 1450 1750 2100Hz Brust Tone
Emergency alarm & flashlight
Restore to default setting
| General | |||
| Frequency Range | VHF: 136-174MHz
UHF: 400-520MHz |
||
| Channel Capacity | 128*2group | ||
| Channel Spacing | 2.5/5/6.25/10/12.5/20/25 50 KHz | ||
| Operating Temperature | -25~ +60 | ||
| Operating Voltage | 7.4V DC ±20% | ||
| Battery | 2800mAH Li-ion | ||
| Frequency Stability | ±2.5 ppm | ||
| Dimension (with battery and antenna) | 110mm x58mmx32mm | ||
| Weight (with battery and antenna) | 250g | ||
| Transmitter | |||
| RF Power Output | 5W/ 1W | ||
| Frequency Modulation | Wide 16KφF3E /Narrow 11KφF3E | ||
| Antenna Impedance | 50Ω | ||
| Maximum deviation | <5kHz(Wide) / <2.5kHz(Narrow) | ||
| Spurious Radiation | <7.5μW | ||
| Adjacent Ch. power | ≤-65dB(Wide) / ≤-60dB(Narrow) | ||
| Pre-emphasis characteristics | 6dB | ||
| Current | ≤1.5A(6W) | ||
| QT/DQT deviation | 0.7±0.1kHz(Wide) / 0.4±0.1kHz(Narrow) | ||
| Intermediation sensitivity | 8-12mv | ||
| Receiver | |||
| Sensitivity (12dB SINAD) | ≤ 0.25 uV | ||
| Selectivity | 55dB/50dB | ||
| Intermodulation | 60dB | ||
| Adjacent Channel Selectivity | ≥ 65dB / ≥ 60dB | ||
| Spurious Response | ≥ 65dB / ≥ 60dB | ||
| FM Noise | 45dB/40dB | ||
| Audio Power Output | 1W | ||
| Audio Distortion | ≤ 5% | ||
Package contain:
UV-82 Two-way radio*10
High Gain Antenna*10
7.4V 2800mAh Battery*10
Belt Clip*10
Desktop Charger*10
100-240V Power Adapter*10
Hand Strap*10
Manual in English*10
Dual PTT earpiece*10
Due to the lack of raw material chips, there is no FM radio function of the radio since 2021, it do not effect walkie talkie use, sorry for the inconvenient.
