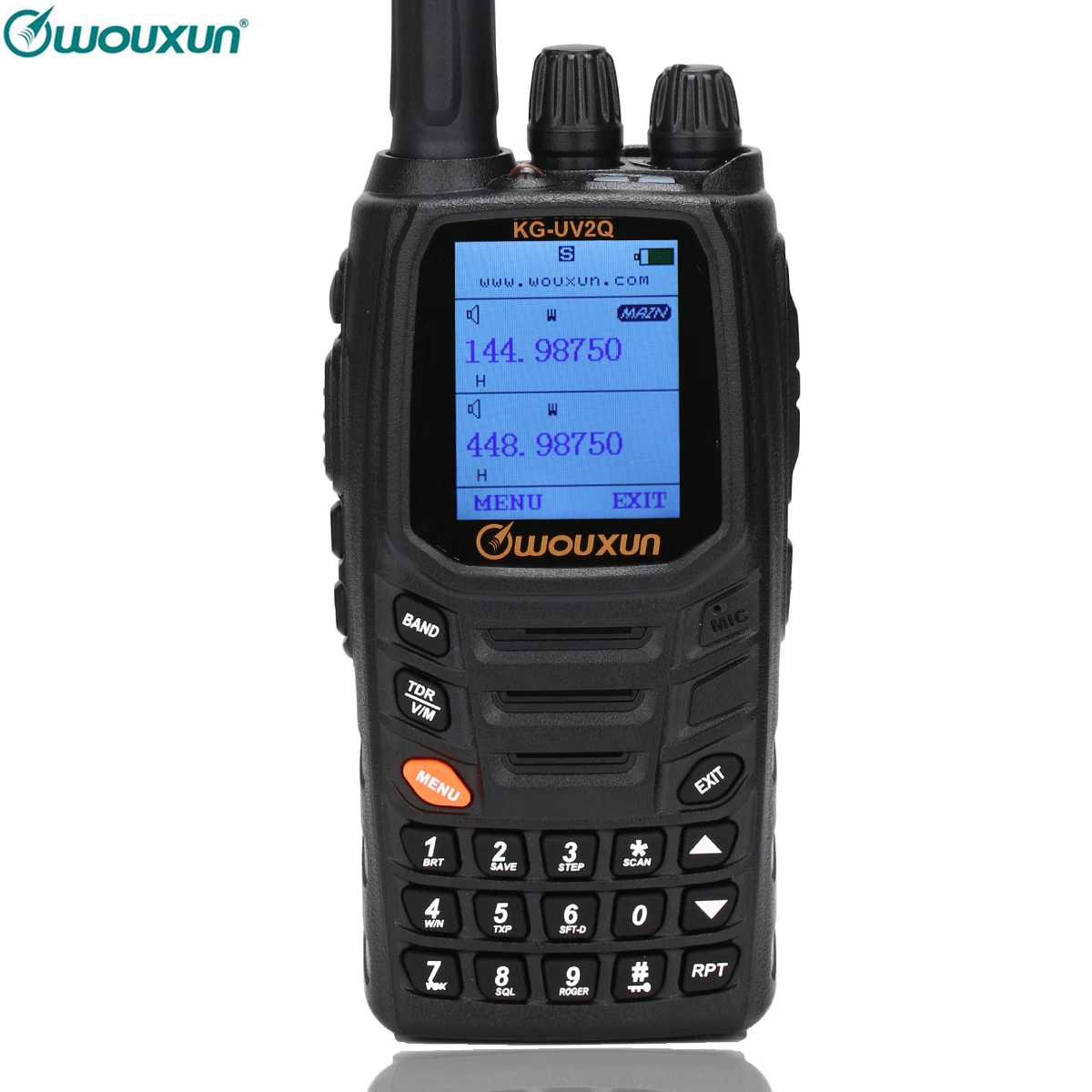

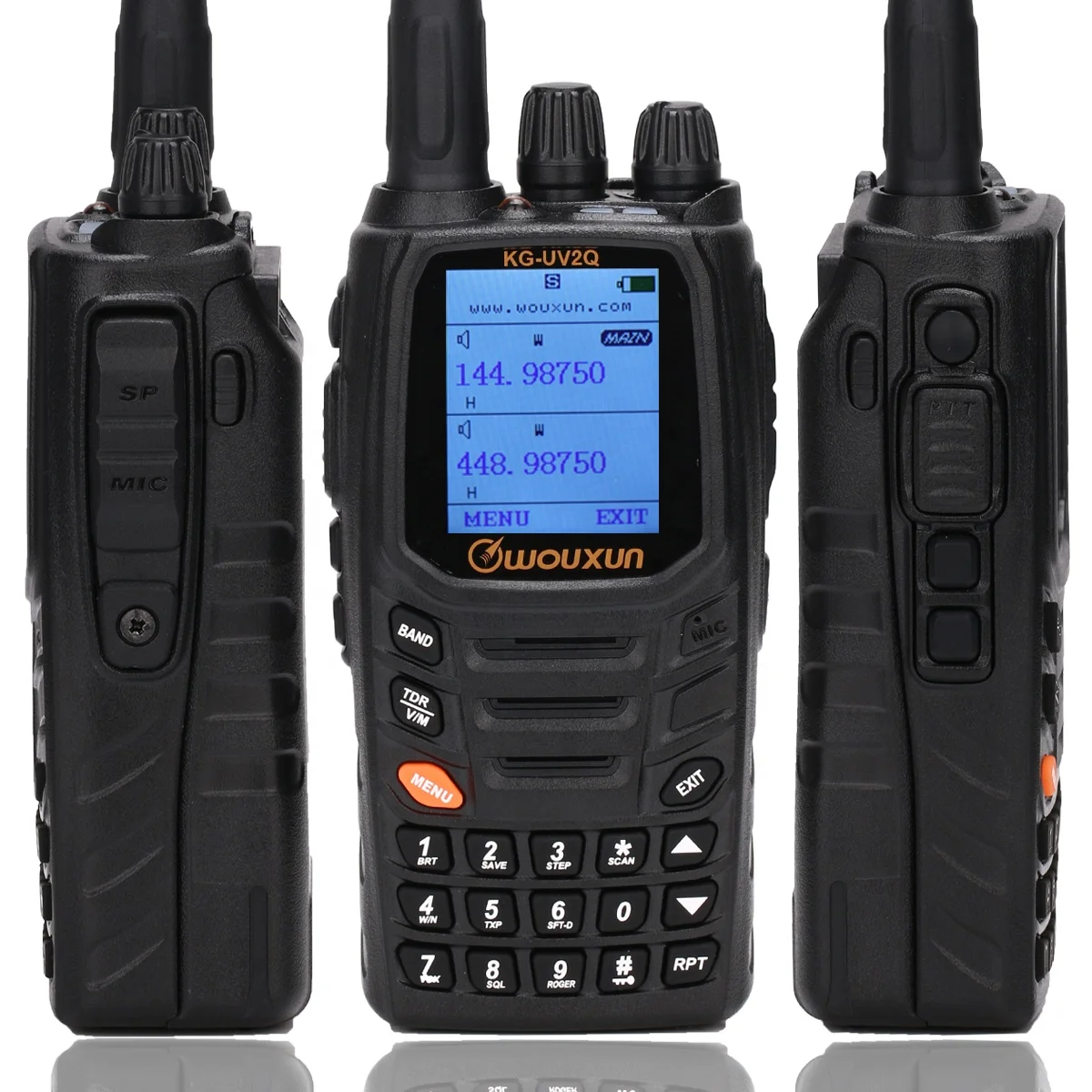

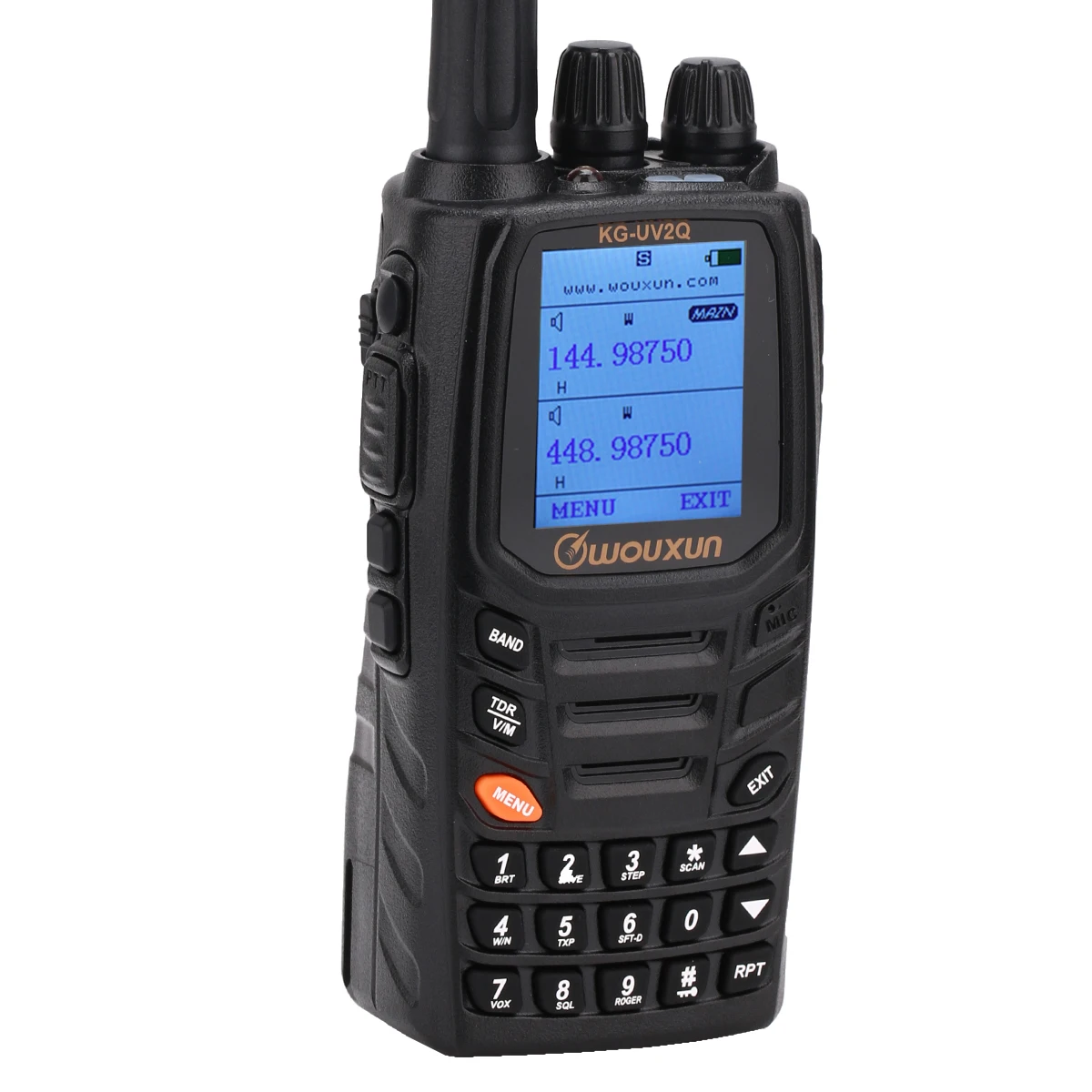

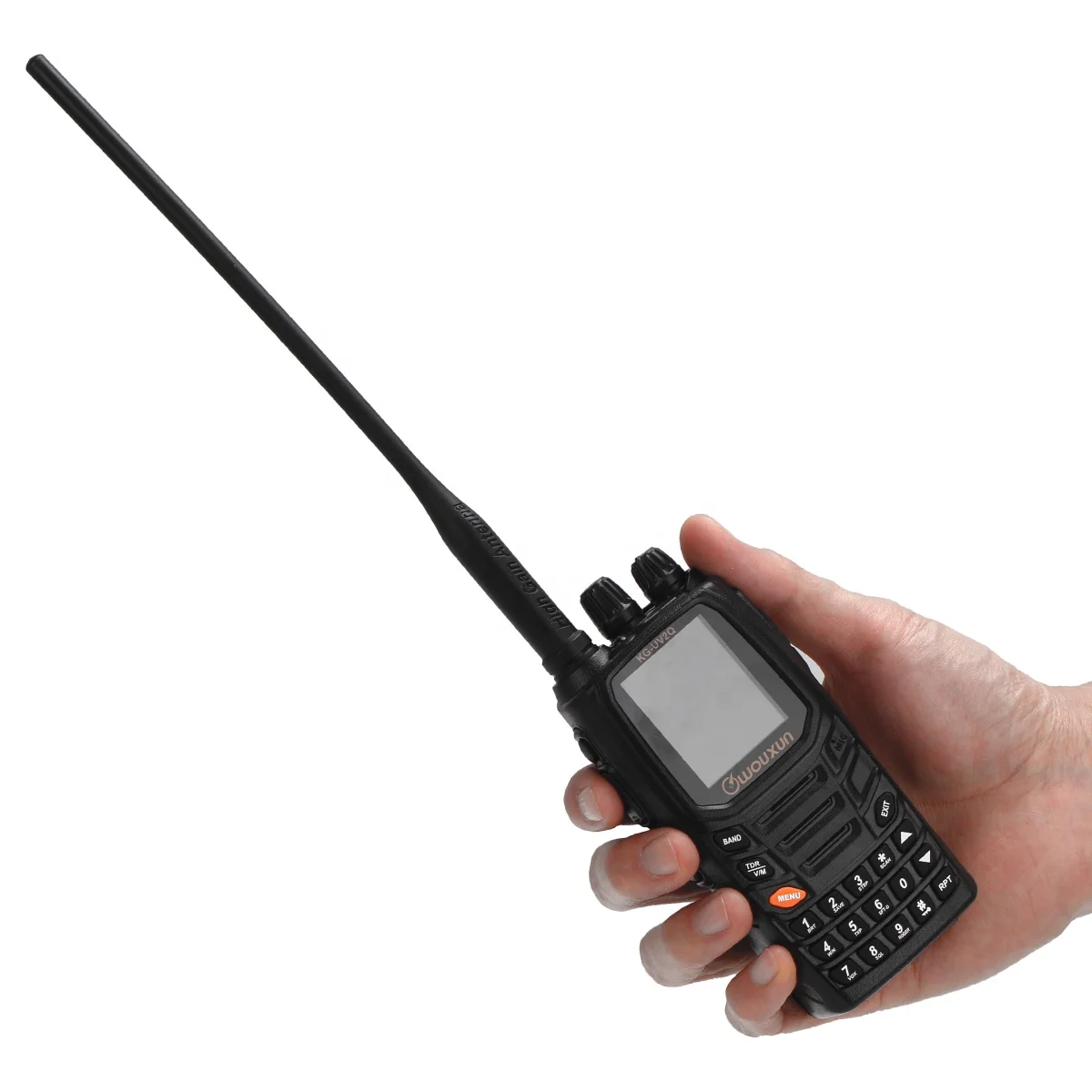

Wouxun KG-UV2Q 10W two way radio UV Dual Band Cross Band Repeater Seven Band RX FM Analogue Walkie talkie UHF VHF

Sale!

Wouxun KG-UV2Q 10W two way radio UV Dual Band Cross Band Repeater Seven Band RX FM Analogue Walkie talkie UHF VHF

$165.00

& Free Shipping

Availability: 1000 in stock

Guaranteed Safe Checkout

Wouxun KG-UV2Q 10W High Power 7 bands Including Air Band Cross band Repeater Walkie Talkie Upgrade KG-UV9D Plus Ham Radio

10W Powerful Dual Bands Transmission , Seven Bands Reception , Two Way Radio KG-UV2Q

1.10WPowerful,3200mAh Li-ion Battery
High / Med / Low Power Settings (10W, 4W, 1W), 3200mAh High Capacity battery

2.Dual Band , Cross Band Repeater , Large Color Screen

With two independent receivers for both UHF and VHF, you can listen to either the same or different bands simultaneously , large color screen can display more information

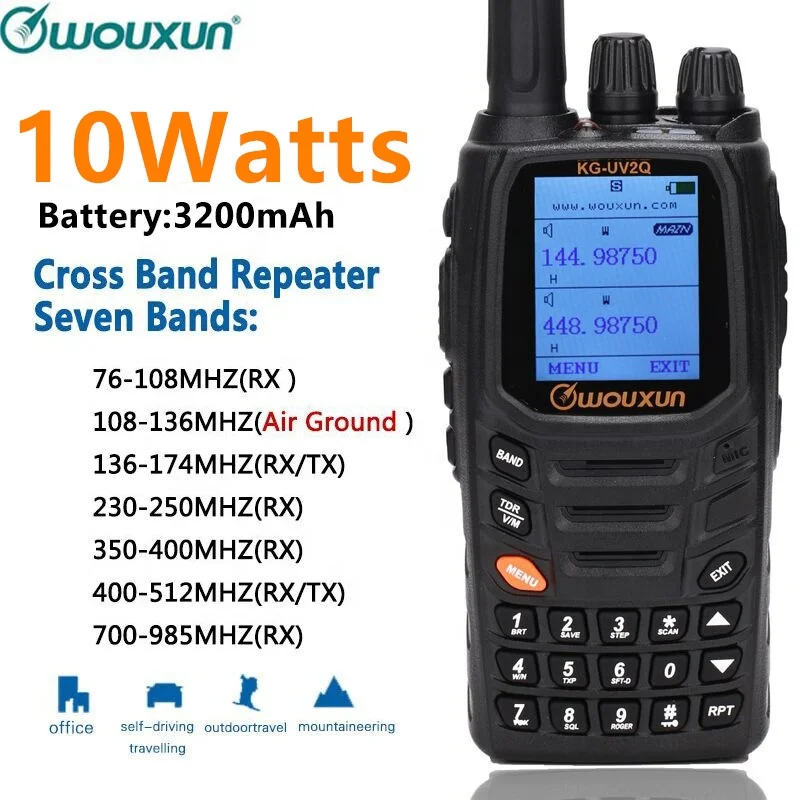

3.Seven Bands Reception and Dual Bands Transmission

Wider frequency ranges meet different demands. The frequency range is from 76MHz to 965MHz, including FM radio and air band

4.Classic Circuit , Excellent Performance

Mature circuit design and high quality electronic components, after years of use can still maintain stable performance

5.Using High Quality Plastic and Rubber Material

High quality plastic can make the shell more robust and durable good rubber material can make the button has a good touch feel

Features:

-Frequency Range

TX:136-174MHz(FM) 400-512MHz(FM)

RX:108-136MHz (AM Band Receiving)

136-180MHz(FM)

230-250MHz(FM)

350-400MHz(FM)

400-512MHz(FM)

700-985MHz(FM)

-Twin Band Simultaneous Receiving (U-U,U-V,V-U,V-V)

-Separate Bands Duplex (U-V,V-U)

-DTMF Encoding/Decoding

-All Calls,Group Calls and Selective Calls

-Stun,Kill,Monitor and Inspection

-CTCSS/DCS Scan

-Programmable Non-Standard CTCSS/DCS

-Multi Scan Modes: Programmable Scanned Frequency Range (only available in Frequency Mode),Channel Groups Scan (only available in Channel Mode)

-Multi Functions Programmable for Side Keys, Programmable Transmission Function on Sub-Frequency(Side Key Function Programmable)

-English Voice Guide

-Priority Scan, Priority Channel Setting

-Twin Band Simultaneous Scan

-Multi Power Save Modes

-Auto Power-OFF Timer (APO)

-Three Output Power Levels:

High / Med / Low Power Settings (10W, 4W, 1W)

-Multi Single-Tone Pulse (1750Hz,2100Hz,1000Hz,1450Hz)

-Multi Keypad Lock Modes

-PTT ID

-Wide/Narrow Bandwidth Selection

-Backlight Brightness Selection

-Wide/Narrow Bandwidth Selection

-Backlight Brightness Selection

Specifications:

Intergration

Frequency Range

TX:136-174MHz(FM) 400-512MHz(FM)

RX:108-136MHz (AM Band Receiving)

   136-180MHz(FM)

   230-250MHz(FM)

   350-400MHz(FM)

   400-512MHz(FM)

   700-985MHz(FM)

Step

2.5/5/6.25/10/12.5/25/30/50/100KHz

Channel Number

999

Work Mode

F2D/F3E

Operating Temperature

-20°c to 60°c

Antenna Resistance

50Ω

Voltage

7.4VDC

Weight

490g

Size

124.5×61.49×33.88(mm)

Transmitter

Wide Bandwidth

Narrow Bandwidth

Type of Modulation

16K F3E

11K F3E

Adjacent Channel Power

≥70dB

≥60dB

Spurious

≥60db

≥60dB

Audio Response

+1~3dB(0.3~3KHz)

+1~3dB(0.3~2.55KHz)

Max Frequency Deviation

±5KHz

±2.5KHz

Frequency Stability

±2.5ppm

Audio Distortion

≤5%

Ouput Power

H:10W,M:4W,L:1W

 Receiving

Wide Bandwidth

Narrow Bandwidth

Adjacent Channel Selectivity

≤70dB

≤60dB

Inter Modulation

≤65dB

≤60dB

Spurious Response

≤70dB

≤70dB

Audio Response

+1~3dB(0.3~3KHz)

+1~3dB(0.3~2.55KHz)

Signal to Noise Ratio

≥45dB

≥40dB

Audio Distortion

≤5%

Audio Power

Transceiver≤500mW

Sensitivity

108-136MHz (AM)-106dBM SINAD 13db

   136-180MHz(AM)-119dBM SINAD 13db

   230-250MHz(AM)-116dBM SINAD 13db

   350-400MHz(AM)-119dBM SINAD 12db

   400-512MHz(AM)-119dBM SINAD 13db

   700-985MHz(AM)-96dBM SINAD 13db

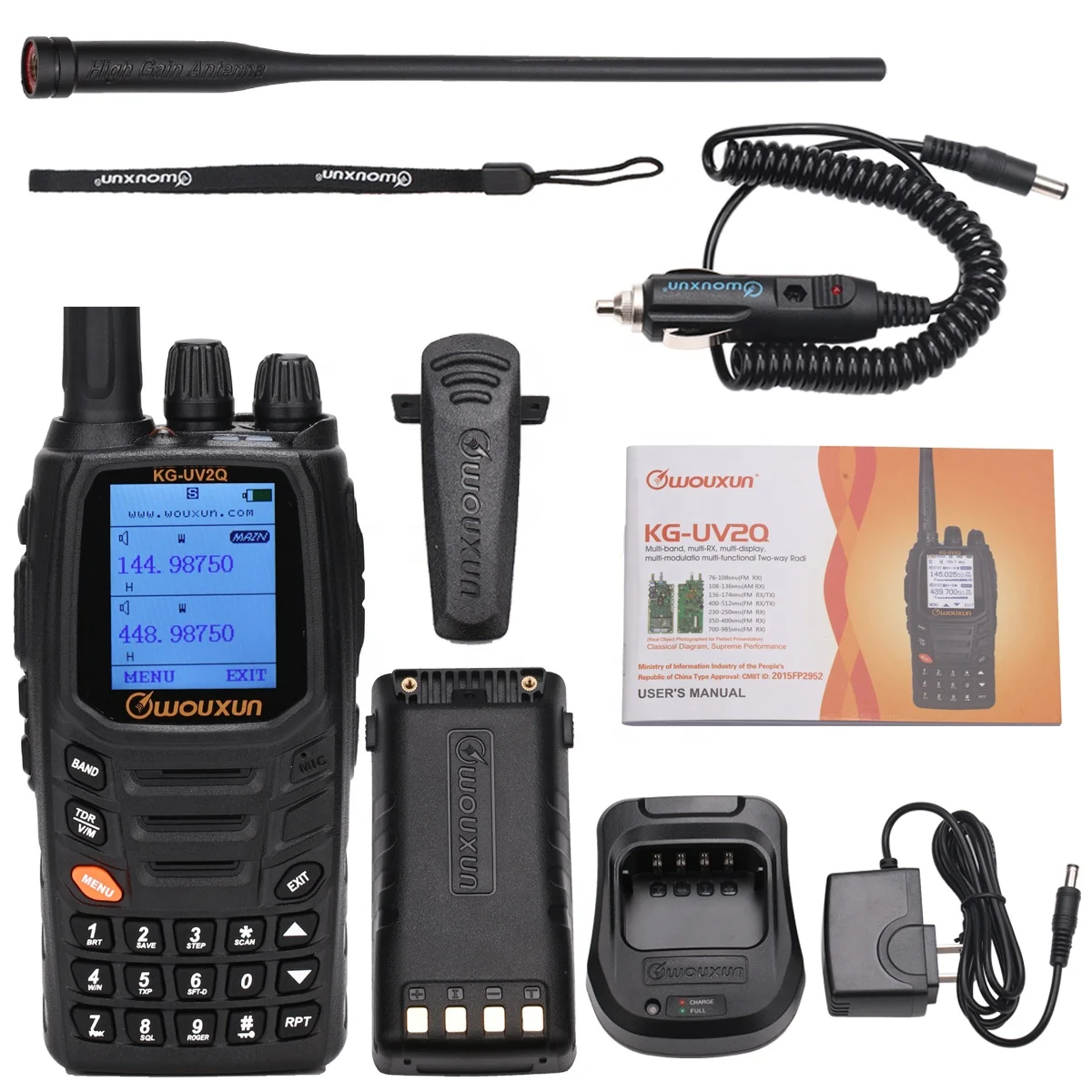

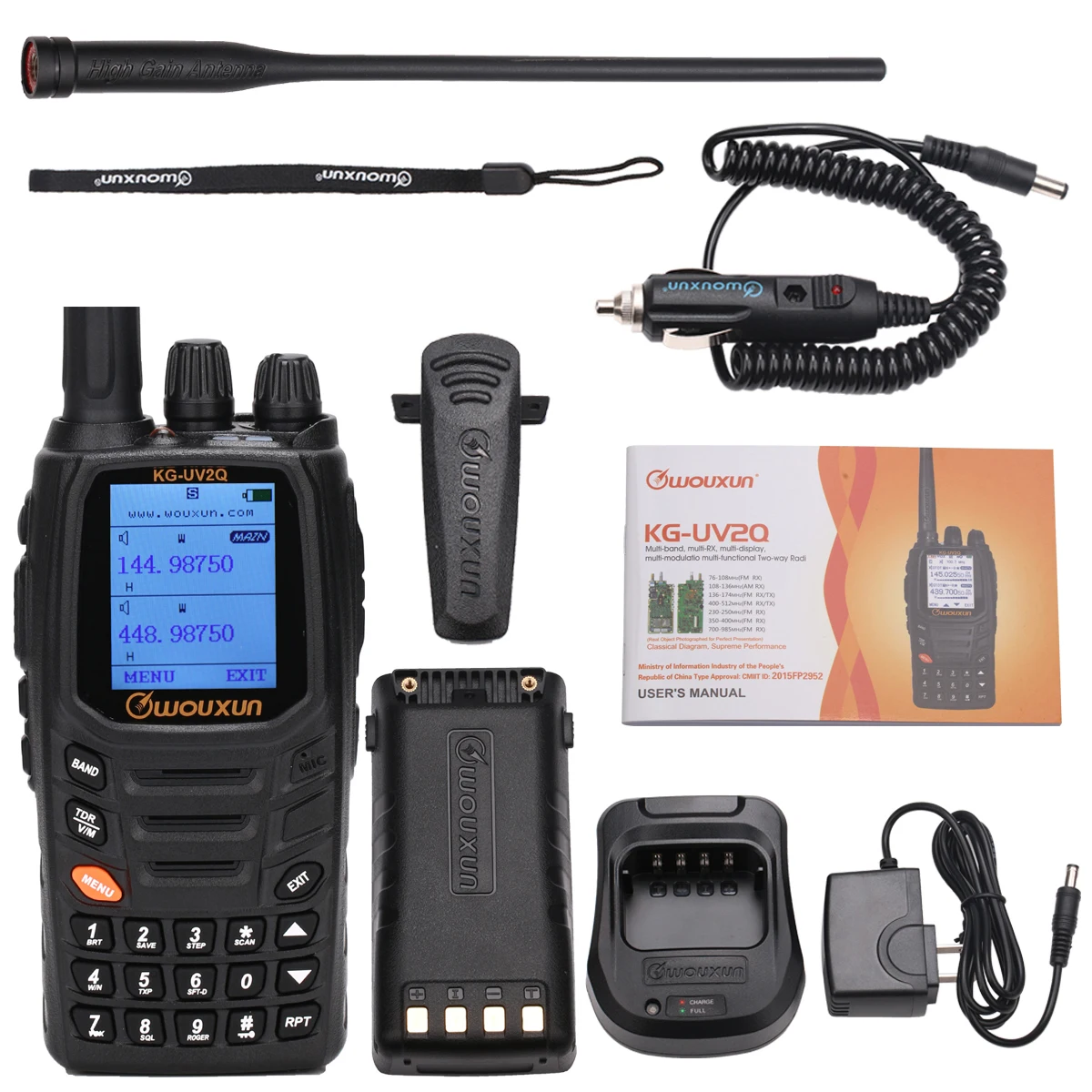

Package Contents:

1 KG-UV2Q Radio Body

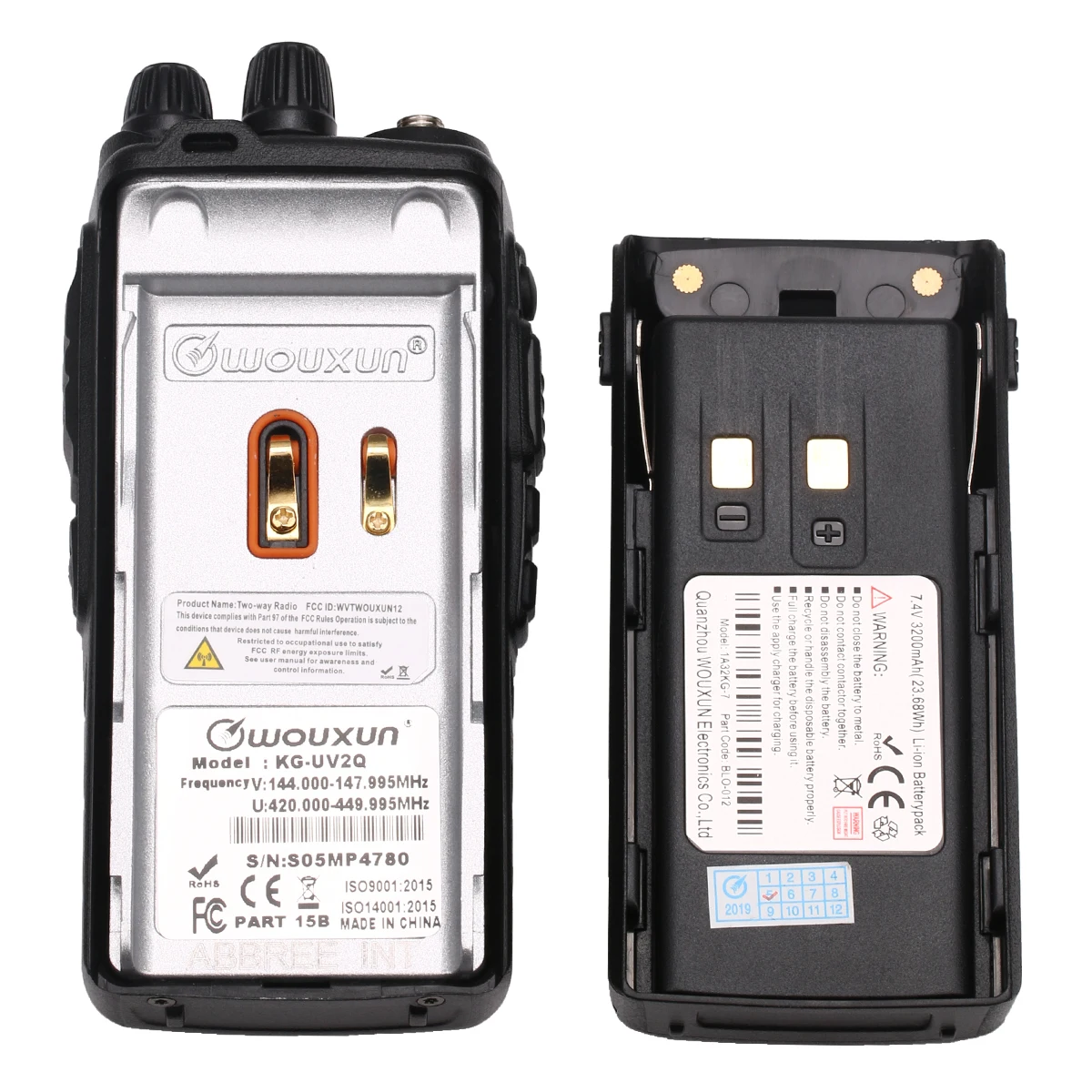

1 3200mAh Li-ion Battery

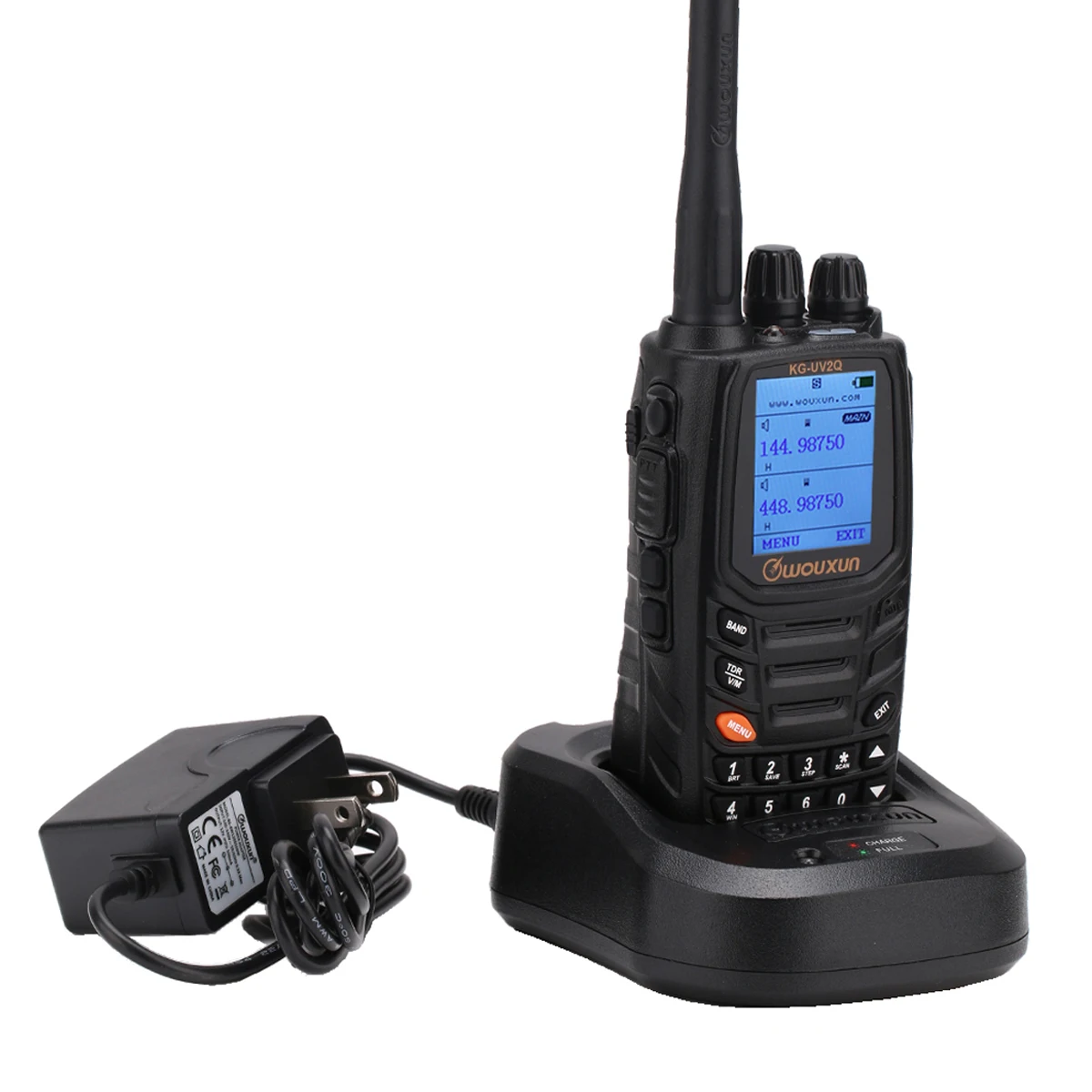

1 Intelligent Charger

1 Belt Clip

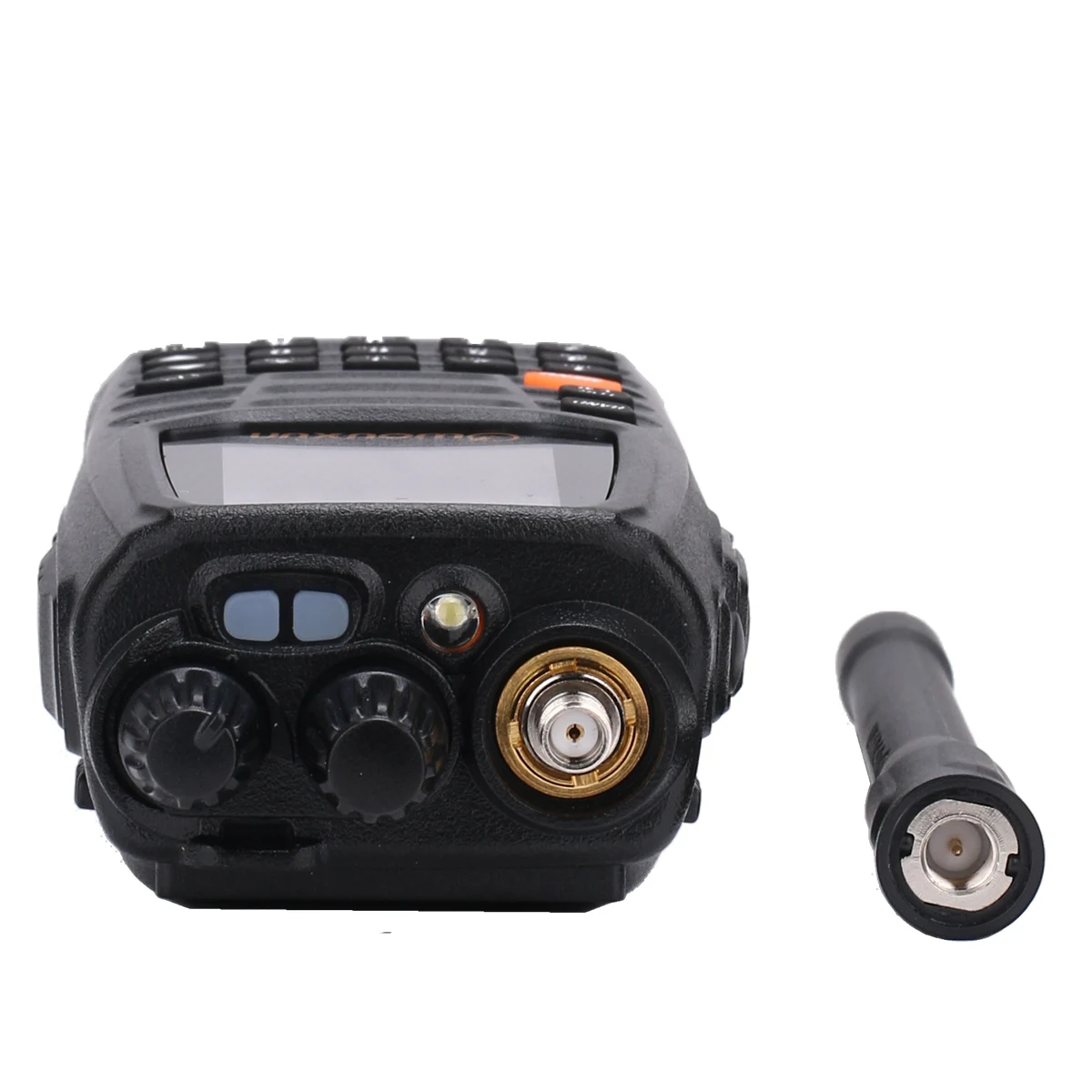

1 SMA-Male Antenna

1 Handstrap

1 User’s Manual

Weight 0.8 kg
Dimensions 300 × 400 × 150 cm
