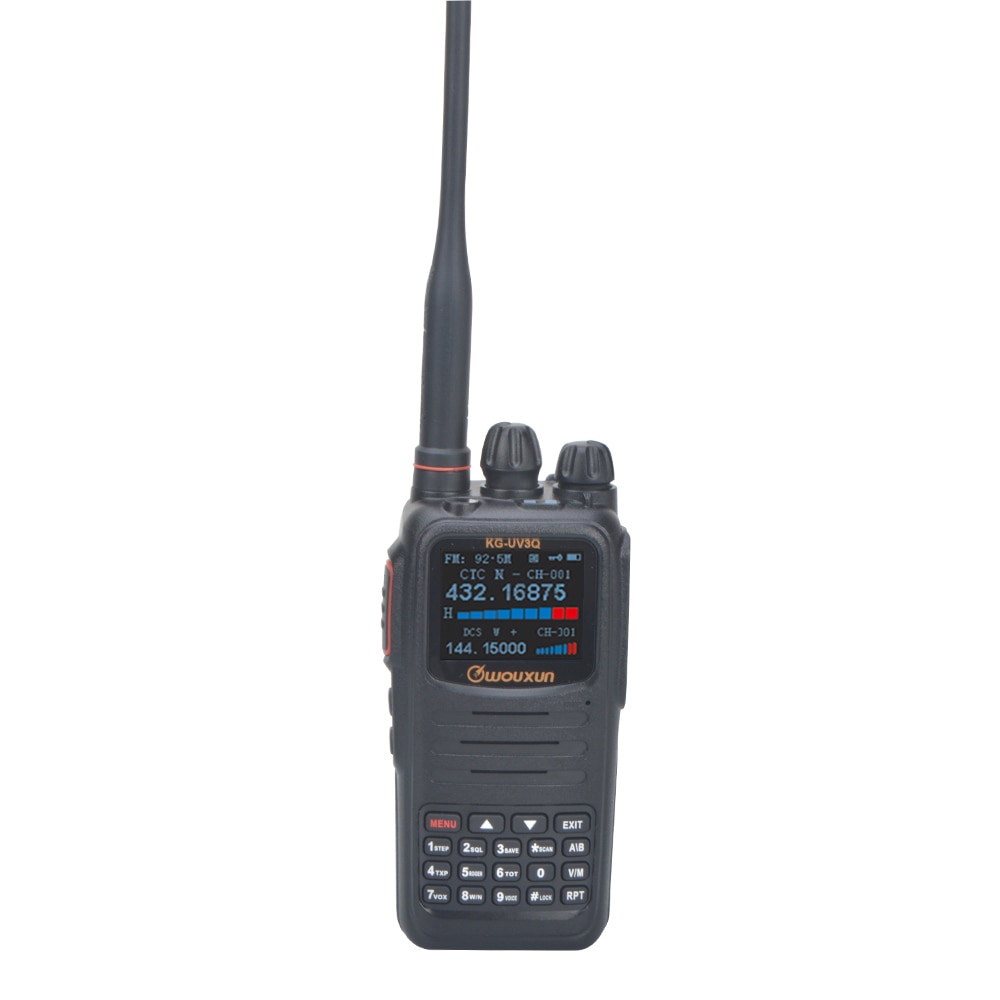

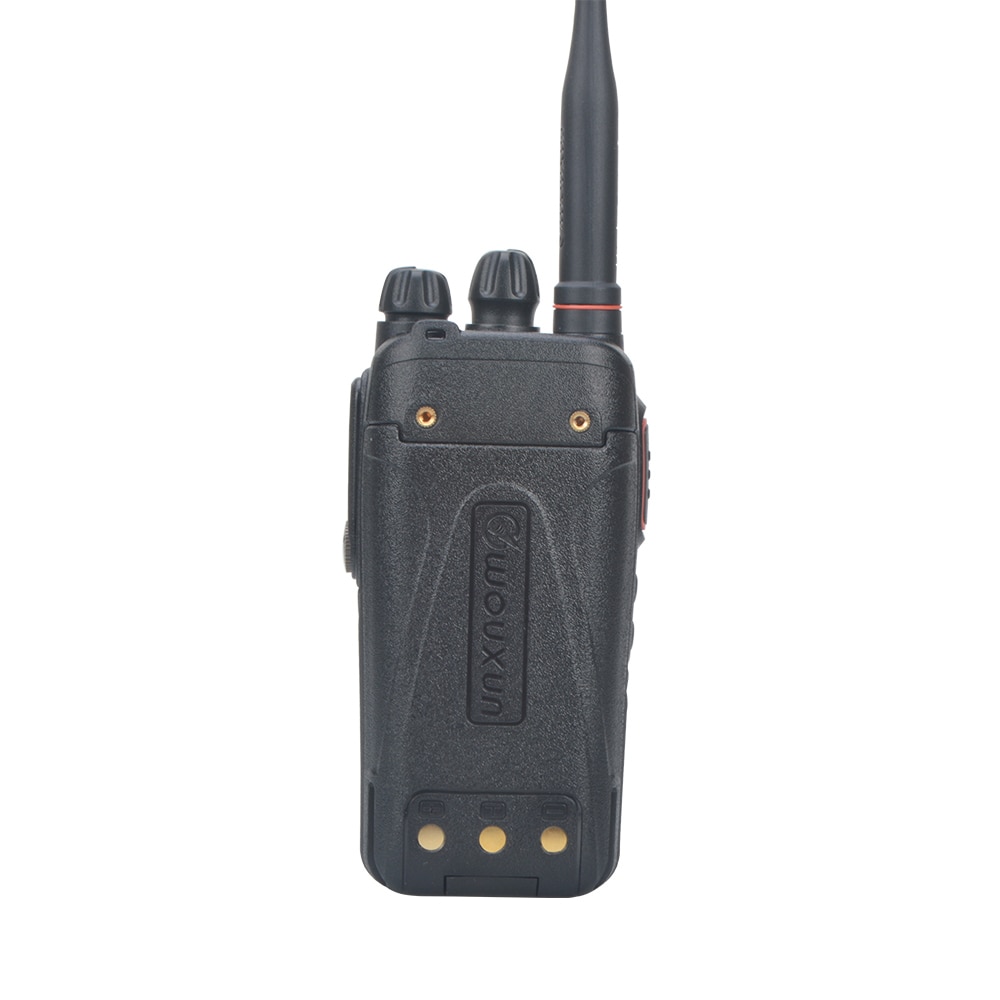

Wouxun KG-UV3Q Analogue UV dual band Walkie talkie VHF 10W UHF 8W High power Portable talkie walkie scrambler roger two way radio FM
Features:
-Output Power: UHF: 8W（High） / 5W(MID) / 1W(Low) , VHF: 10W(High) / 7W(MID) / 1W(Low)
-1.73” Colorful Screen
-Cross Band Repeater
-Duplex Work Mode and Dual Receiving
-Dual Display ,Two Independent Operation System
-Single-Tone Pulse Frequency : 1000 / 1450 / 1750 / 2100Hz
-Scrambler
-DTMF Encoding and Decoding
-All Calls , Group Calls And Selective Calls
-Wide / Narrow Bandwidth Selection (25KHZ / 12.5KHz)
-SOS Function
-3200mAh High Power Capacity Li-ion Battery Pack
-VOX
-QT/DQT Encoding / Decoding , QT / DQT Scan
-Voice Encryption and Non-Standard CTCSS/DCS
-Reverse Frequency
-Voice Compander
-Incoming Message Display Caller ID display
Specifications:
|
General |
||
| Frequency Range | 136-174MHz & 400-480MHz | |
| Frequency Step | 5/6.25/10/12.5/25/50/100KHz | |
| Storage Channel | 999 | |
| Work Mode | F2D/R3E | |
| Operating Temperature | -20 °c~ +40°c | |
| Antenna Impedance | 50 ohm | |
| Voltage | 7.4V DC | |
| Weight | 490g | |
| Size | 124.5*61.49*33.88mm | |
|
Transmitter |
||
| Wide Band | Narrow Band | |
| Adjacent Channel Selectivity | ≥70dB | ≥60dB |
| Type of Modulation | 16K F3E | 11K F3E |
| Spurious | ≥60dB | ≥60dB |
| Audio Response | +1~-3dB(0.3~3KHz) | +1~-3dB(0.3~3KHz) |
| Max Frequency Deviation | ±5KHz | ±2.5KHz |
| Frequency Stability | ±2.5PPM | |
| Audio Distortion | ≤5% | |
| Output Power | UHF: 8W / 5W / 1W , VHF: 10W / 7W / 1W | |
|
Receiver |
||
| wide | Narrow | |
| Adjacent Channel Selectivity | ≤70dB | ≤60dB |
| Inter Modulation | ≤65dB | ≤60dB |
| Spurious Response | ≤70dB | ≤70dB |
| Audio Response | +1~-3dB(0.3~3KHz) | +1~-3dB(0.3~3KHz) |
| Signal to Noise Ratio | ≥45dB | ≥40dB |
| Audio Distortion | ≤5% | |
| Audio Power | ≤500mW | |
| Sensitivity | UHF/VHF：0.25µV（12dB SINAD） | |
Package Contents:
1×KG-UV3Q Dual Band Radio

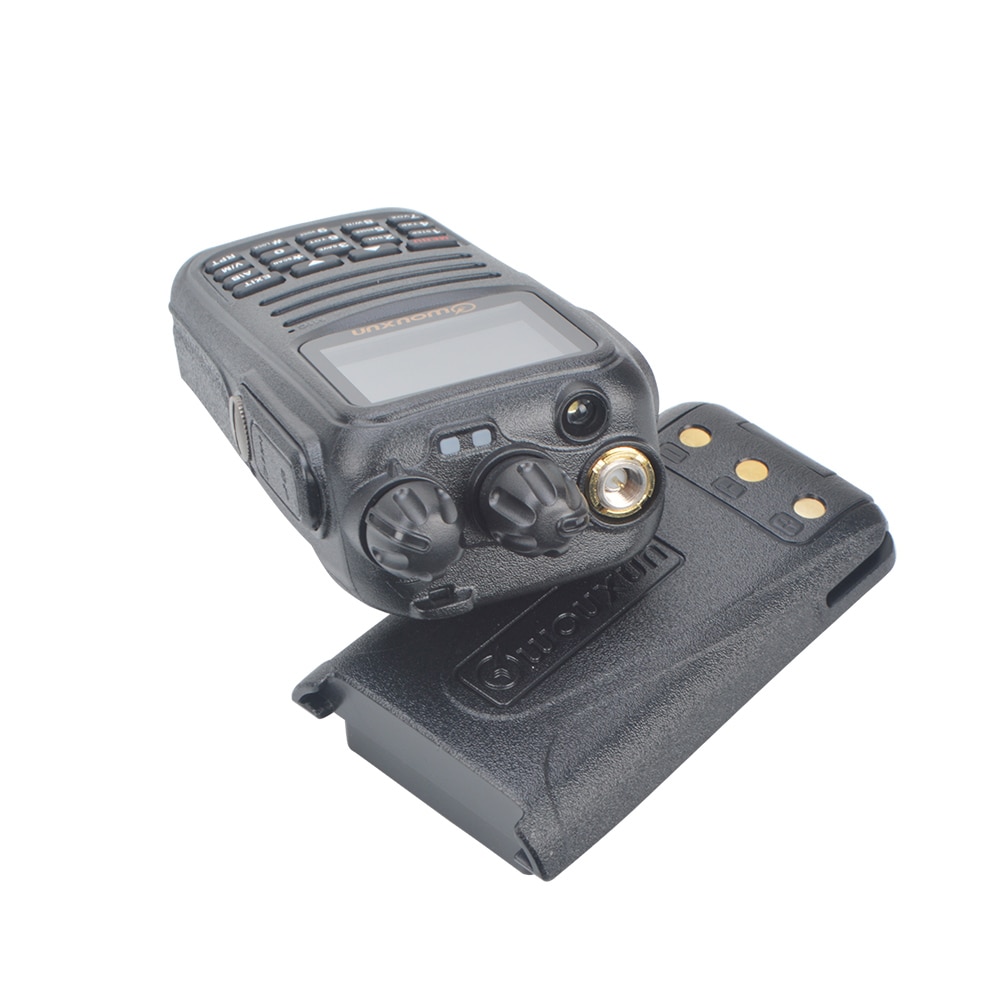

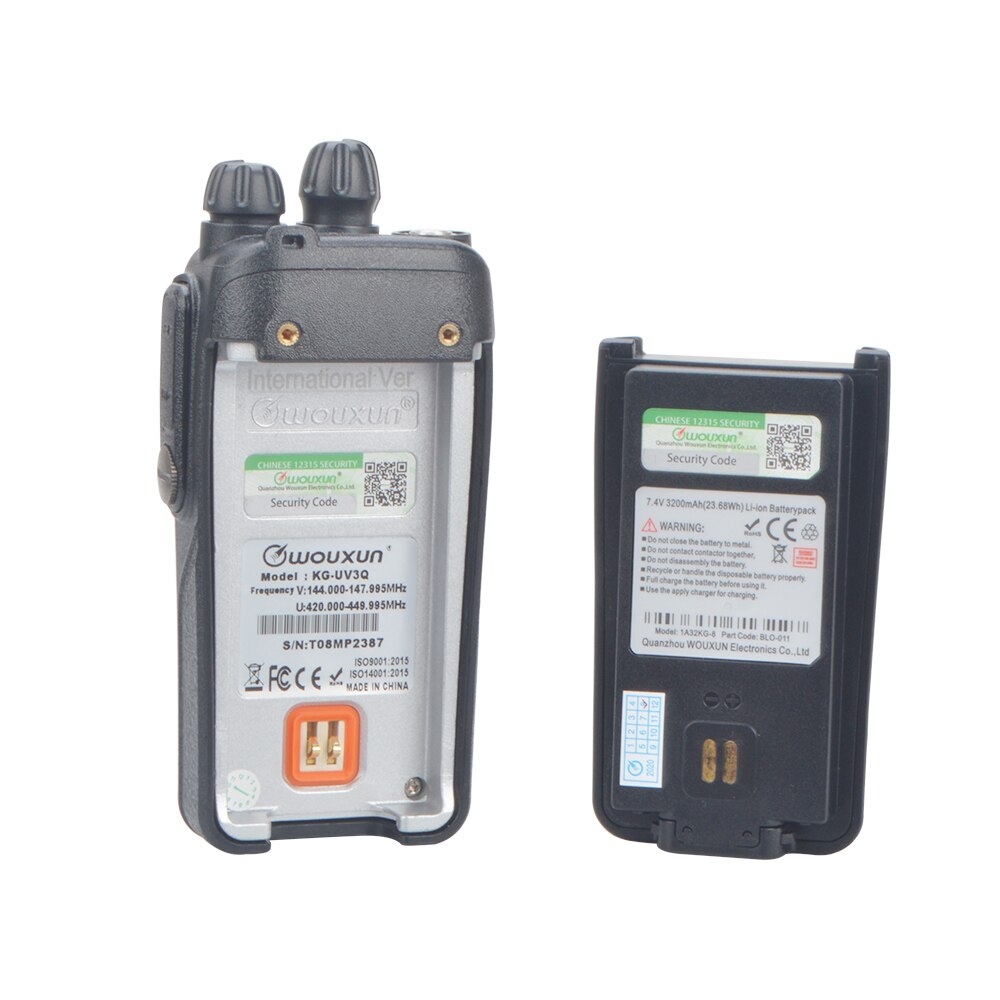

1× 7.4V 3200mah Li-ion Battery Pack
1× SMA-Female High Gain Antenna
1× Battery belt clip

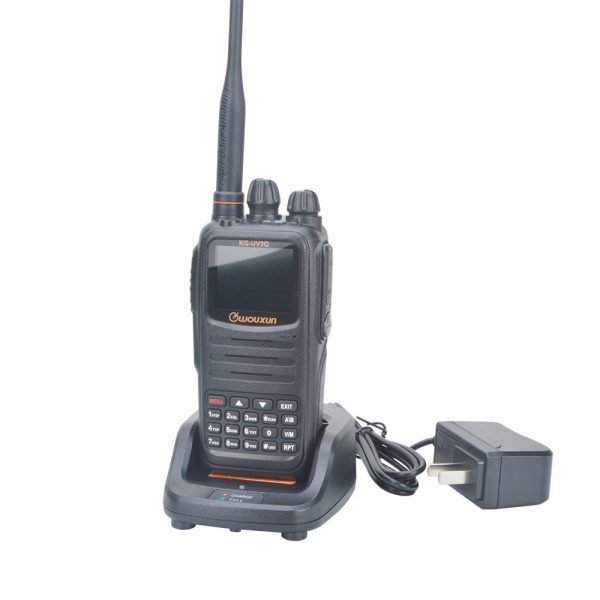

1×Desktop Charger
1×AC Adapter
1×Handstrap
1× ENG Manual
Photos:
