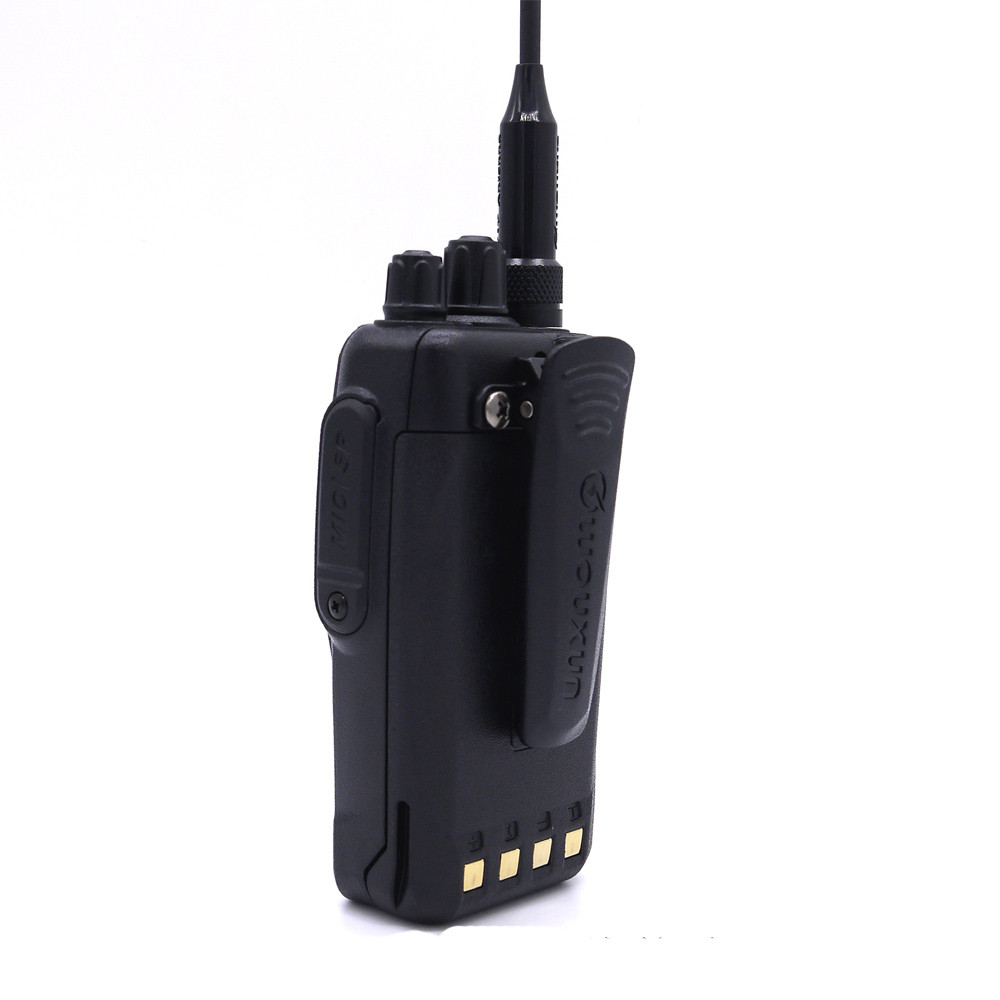

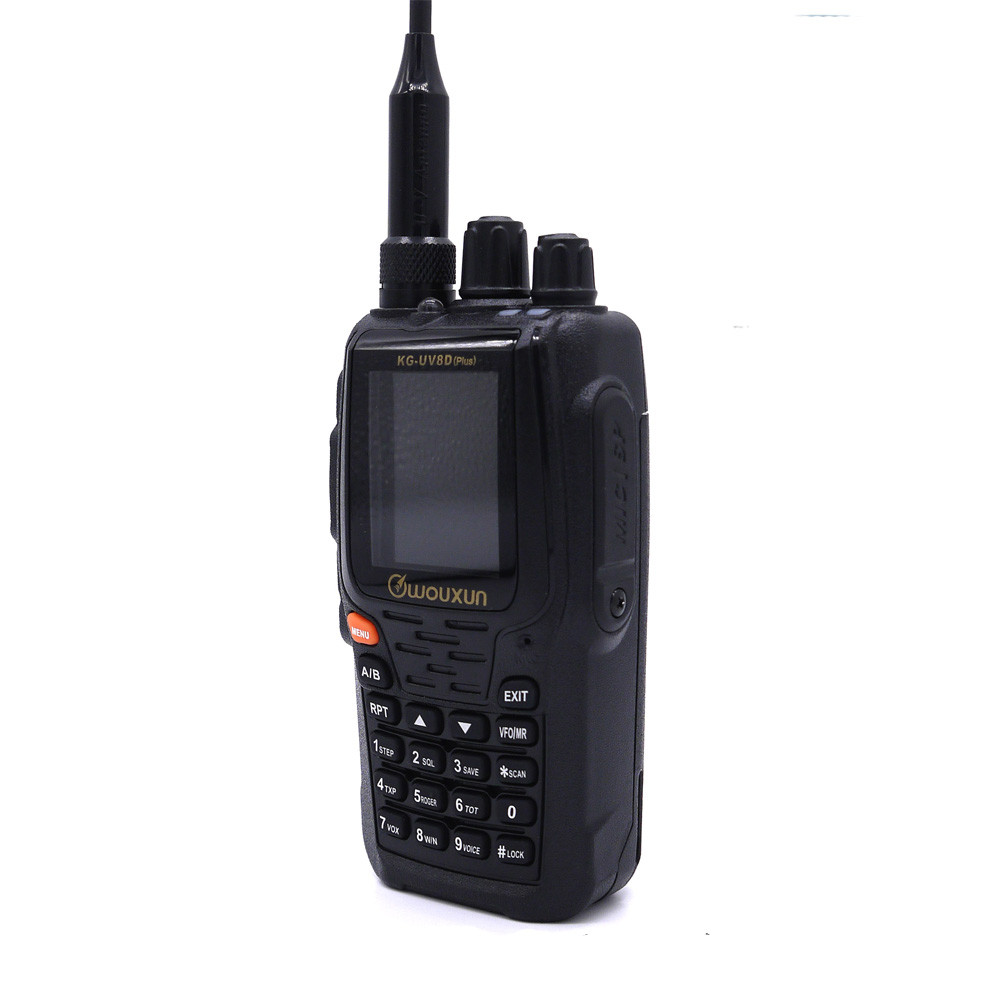

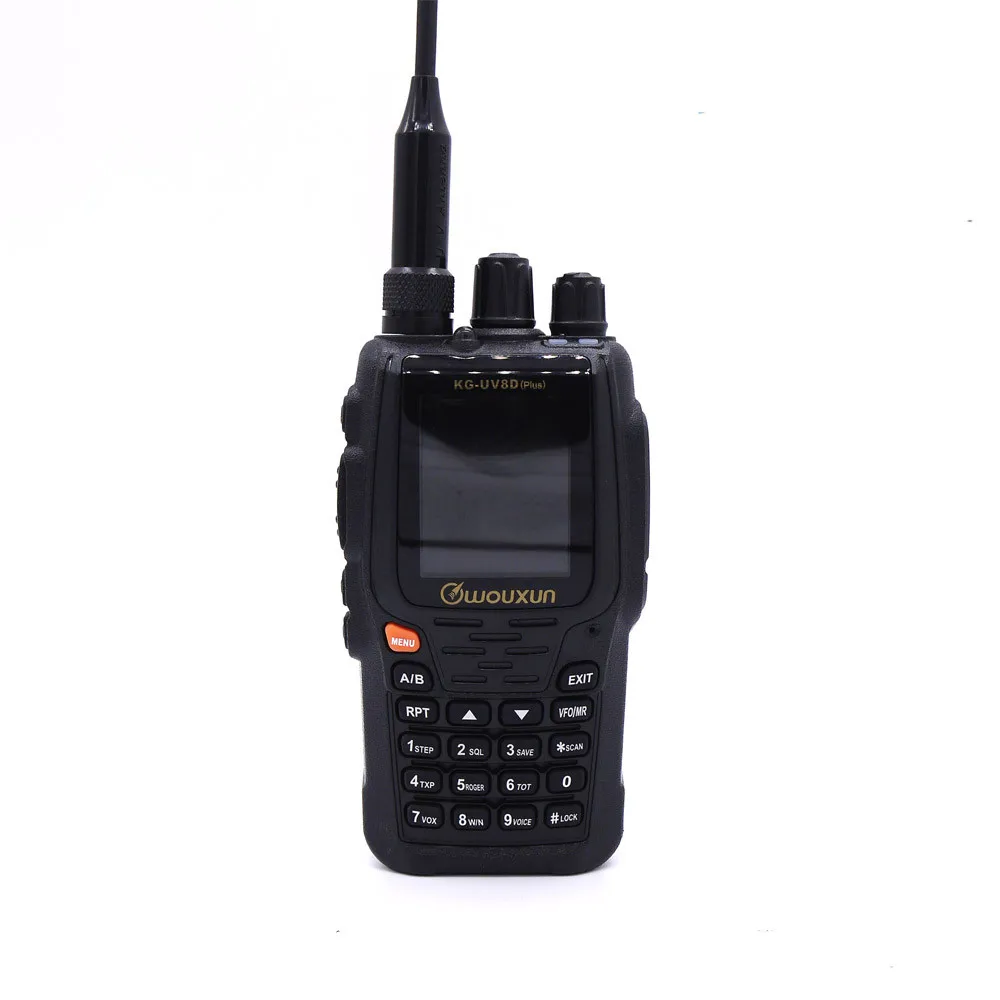

WOUXUN KG-UV8DPLUS KG-UV8D Plus VHF:136-174MHz & UHF 400-480MHz Dual Band DTMF Two-way Radio (KG-UV8D Upgrade Version)(Duplex Repeater Mode,Same-Band/Cross-Band Simultaneous Reception)

New or Upgrade Functions in Plus Version

1. Voice Compander
2. Non-Standard CTCSS/DCS
3.Scrambler
4.Backlight intensity can be adjusted
5.FM radio can be stored and retrieved 20 sets of frequency
6. Power-On Message Editable

Features:

1. Duplex Repeater(VHF to UHF or UHF to VHF)

2. Duplex Work Mode(TX on one area while RX on the other area simultaneously)

3. Dual Receiving (RX on the same/different bands of A&B areas simultaneously)

4. Large Colorful Screen

5. Frequency Range: 136-174 & 400-480MHz

6. 999 Memory Channels

7. Dual Display, Dual Band Dislay on Large Screen,Two Independent Operation System

8. Frequency Offset and Direction Programmable in Repeater Mode UHF/VHF or VHF/UHF Cross-Band Repeater

9. Strong and Stable Output Power(VHF:5W/UHF:4W)

10. VOX

11. QT/DQT Encoding/Decoding,QT/DQT Scan

12. Multi Definition for Sidekeys

13. Incoming Message Display(Caller ID display)

14. DTMF Encoding & Decoding

15. All Calls,Group Calls And Selective Calls

16. SOS Function

17. Priority Scan Function

18. Remote Alarm

19. Wide/Narrow Bandwidth Selection(25KHz/12.5KHz)

20. Voice Guide:Chinese/English

21. Chinese/English Screen Display

22. Bright Flashlight IIIuination

23. Single-Tone Pulse Frequency:2100Hz/1750Hz/1000Hz/1450Hz (signaling for activating repeater)

24. Reverse Frequency

25. Stopwatch

Specifications:

Intergration		Receiving	Wide	Narrow		Transmitter	Wide	Narrow
Frequency Range	136-174MHz&400-480MHz	Adjacent Channel Selectivity	≤70dB	≤60dB		Type of Modulation	16k F3E	11k F3E
Step	5KHz/6.25KHz/10KHz/12.5KHz/25KHz/50KHz/100KHz	Inter Modulation	≤65dB	≤60dB		Adjacent Channel Power	≥70dB	≥60dB
Channel Number	999	Spurious Response	≤70dB	≤70dB		Spurious	≥60dB	≥60dB
Work Mode	F2D/F3E	Audio Response	+1~-3dB(0.3~3KHz)	+1~-3dB(0.3~2.55KHz)		Audio Response	+1~-3dB(0.3~3KHz)	+1~-3dB(0.3~2.55KHz)
Operating Temperature	-20~+40	Signal to Noise Ratio	≥45dB	≥40dB		Max Frequency Deviation	±5KHz	±2.5KHz
Antenna Resistance	50	Audio Distortion	≤5%			Frequency Stability	±2.5ppm
Voltage	7.4VDC	Audio Power	Transceiver≤ 500mW			Audio Distortion	≤5%
Weight	490g	Sensitivity	UHF/VHF:0.25µV(12dB SINAD)			Output Power	5W/1W(VHF) 4W/1W(UHF)
Size	124.5×61.49×33.88(mm)

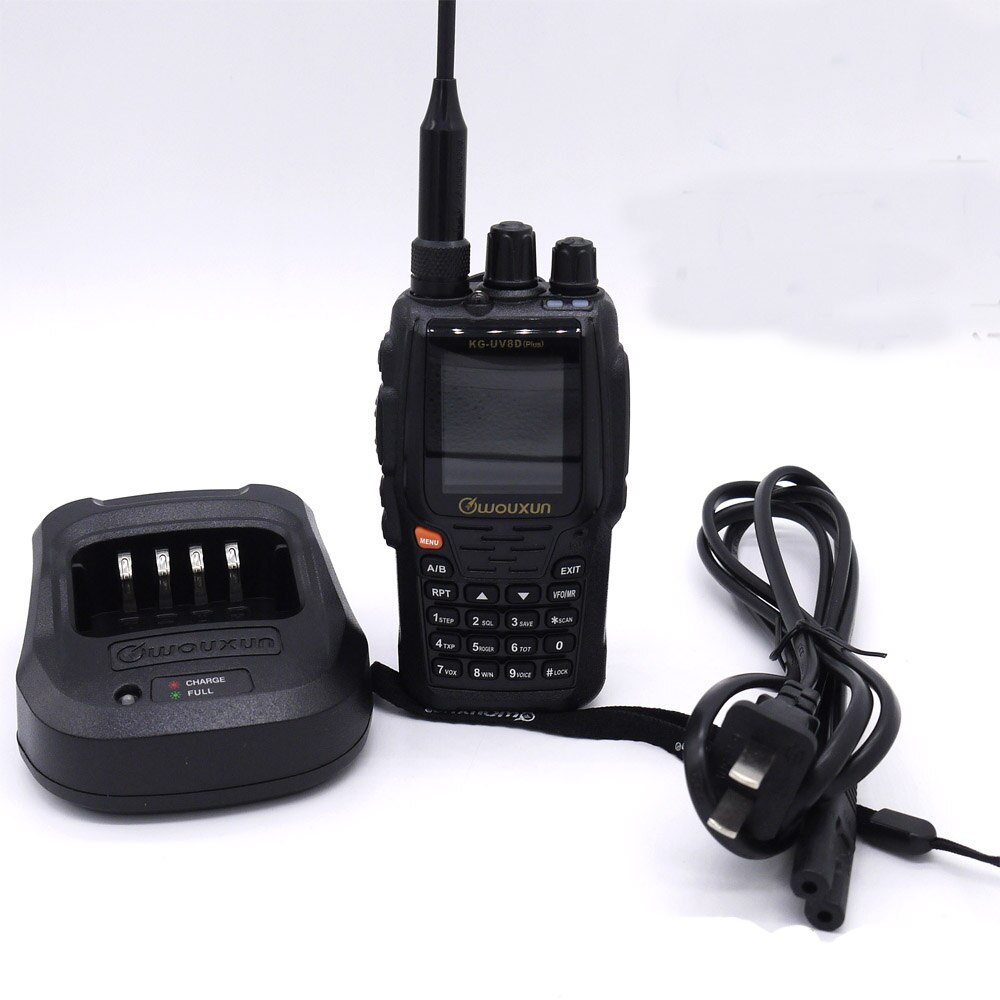

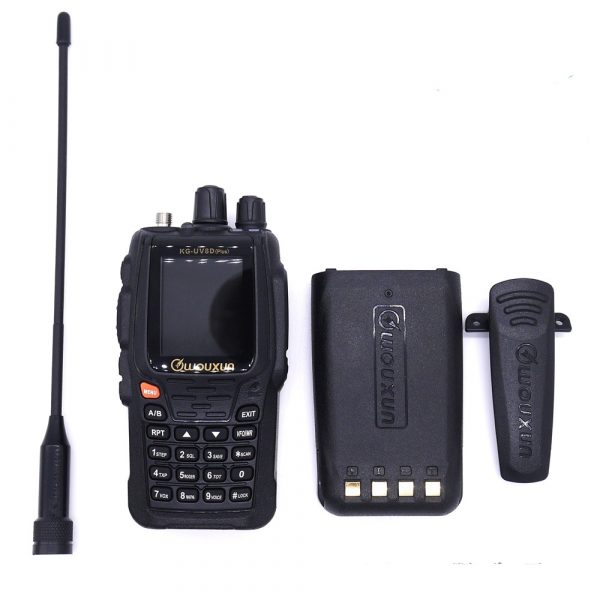

Package Contents:

1× KG-UV8D plus Radio

1× 1700mAh Li-ion Battery

1× Intelligent Charger

1× Belt Clip

1× SMA-Male Antenna

1× Handstrap

1× User’s Manual
