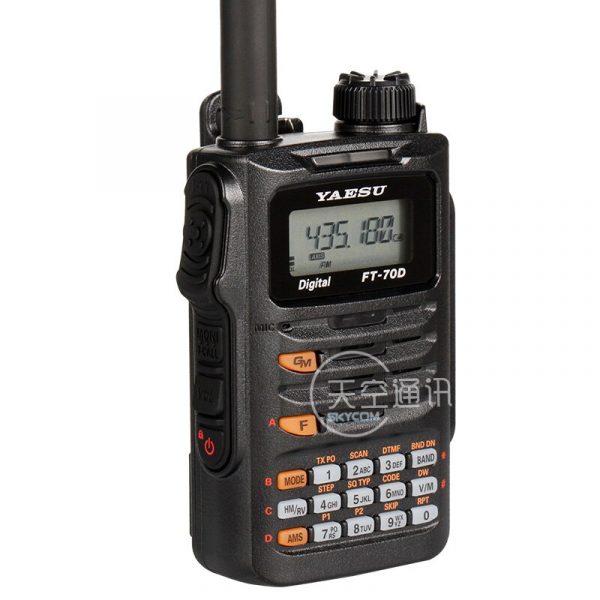

Yaesu FT-70DR 70D C4FM/FM dual frequency digital handheld walkie-talkie

Product parameter

Frequency range: emission: 140-174MHz, 420-470MHz. Receiving: 108-579.995MHz
Transmitting power: 5/2/0.5W
Number of channels: 1105
Battery type: Lithium-ion battery pack
Battery capacity: 1800mAh
Battery usage: working time is about 7 hours (transmitting: receiving: standby time ratio is 10:10:80)
Working current: standby: 70mA/120mA (power saving mode 1:5 on/off). Receiving: 180mA. Launch: about 1.9A (5W launch)
Modulation type: F2D, F3E, F7W (4FSK/C4FM)
Frequency stability: ±2.5 ppm
Channel step: 5/6.25/8.33/10/12.5/15/20/25/50/100kHz (8.33kHz is only used for aviation channels)
Rated voltage: 7.4V DC
Audio rated power: 700mW
Working temperature: -20℃~60℃
Dustproof method: IP54 level

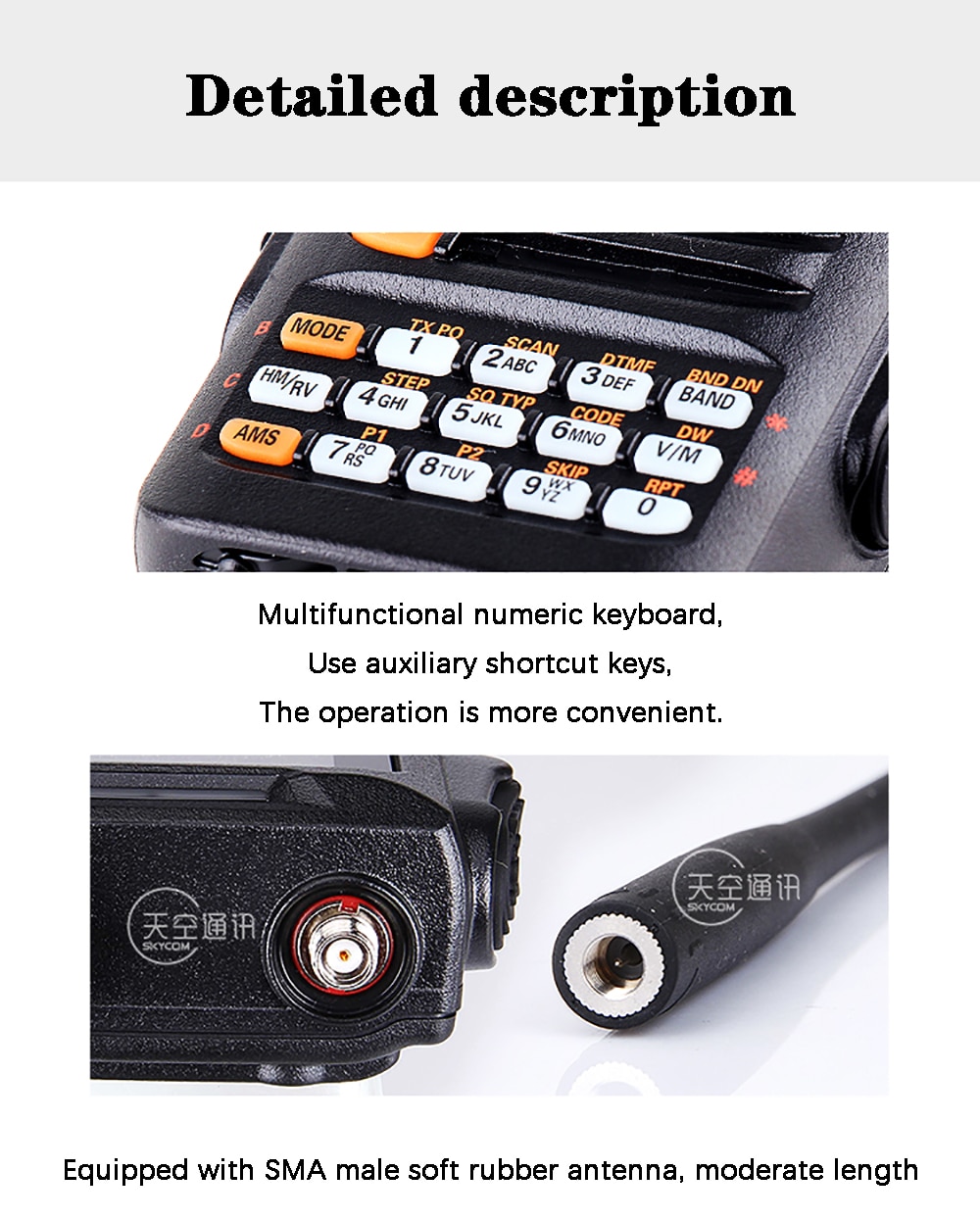

Antenna interface: SMA male
Antenna resistance: 50Ω
Talking distance: 1.5km-3km (including 3km)
Frequency range: U/V section
Size: 60*98*3mm (including SBR-24LI battery, without knob, antenna, belt clip)
Weight: 255g (including SBR-24LI battery and antenna)
