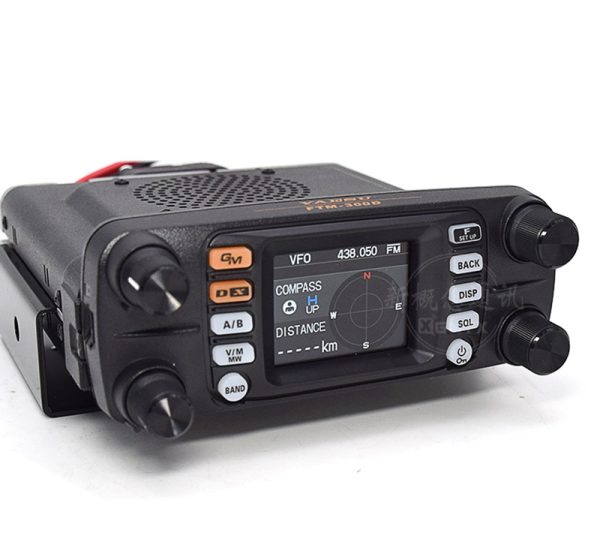

YAESU FTM-300DR Dual Band Transceiver Digital Mobile Transceiver Car Mobile Radio Bluetooth GPS
YAESU 300DR new car station FTM-300DR dual-segment digital car walkie-talkie Bluetooth GPS
Dual Band 144/430 MHz C4FM Digital/Analog FM Mobile Transceiver with BT GPS APRS
– Flagship digital car transceiver
– Transmit and receiving via Bluetooth
– Recording playback
– Digital and analog
– Smart navigation
– Color screen
– Digital and analog dual-purpose, clearer calls. Use C4FM digital high-definition voice technology to ensure high-quality voice communication. Innovative system integration function for AMS allows users to automatically identify digital or analog signals without manual switching, bringing more convenient and smooth communication.
– Built-in Bluetooth hands-free call: Built-in Bluetooth module, with SSM-BT10 Bluetooth headset (sold separately), you can achieve hands-free voice control transmission, free your hands and improve driving safety.
– High resolution full color screen: 2-inch high-resolution QVGA full-color TFT screen can clearly display device communication status and operating information. With the newly designed E2O-II (Easy to Operate-II) interactive interface, it makes daily operations more convenient.
– Independent dual receiver: true dual-band dual-standby, convenient for team to travel and chat with friends privately. It can receive signals of two operating frequency bands at the same time, and respond quickly without missing the content of calls.
– Recording makes the call traceable. Built-in SD card slot, supports up to 32GB memory card (sold separately). It can record the entire transmission and reception of calls, and playback at any time.
– Full-color intelligent navigation: Built-in high-precision GPS receiver, real-time knowing the location and distance of teammates. Practical BACKTRACK function allows you to easily return to the base camp in deserts without a map.
– Other practical functions: built-in microSD card slot, ultra-wideband receiving, spectrum scanning (up to 61 channels), multi-channel standby, Wires-X portable digital node, snapshot and image transmission, APRS (Automatic Position Reporting System), cross-band relay
– Can connect to dual external speakers. Independent audio output
– Newly designed microphone: comfortable to hold, with powerful functions
– Excellent heat dissipation design: unique funnel-shaped air convection cooling duct
– Screw-free slide rail bracket design: easy to disassemble and easy to install
– Model: FTM-300DR
– Communications distance: over 10km
– Frequency range: transmitting: 137-174, 400-480MHz; receiving: 108-999.99MHz
– Transmitting power: 50W/25W/5W
– Number of channels: 1104
– Working current: 0.5A (receiving); 11A (50W transmitting, 144/430MHz)
– Modulation type: F1D, F2D, F3E, F7W (4FSK/C4FM)
– Frequency stability: ±2.5ppm
– Channel step: 5/6.25/8.33/10/12.5/15/20/25/50/100kHz (8.33kHz is only used for aviation frequency band)
– Rated voltage: 13.8V DC (±15%), negative pole connects to the ground
– Audio rated power: 3W, 8Ω
– Working temperature: -20°C to 60°C
– Bluetooth: Version 4.2, Class 2, output power 2dBm
– Antenna interface: M type
– Antenna impedance: 50Ω
– Dimensions: radio host 139x42x132mm (excluding fan size); control panel 139x53x18mm (excluding knob size)
– Product weight: 1.1kg (including weights of radio, control panel and control cable)
– 1 x Set of Dual Band YAESU 300DR Transceiver
