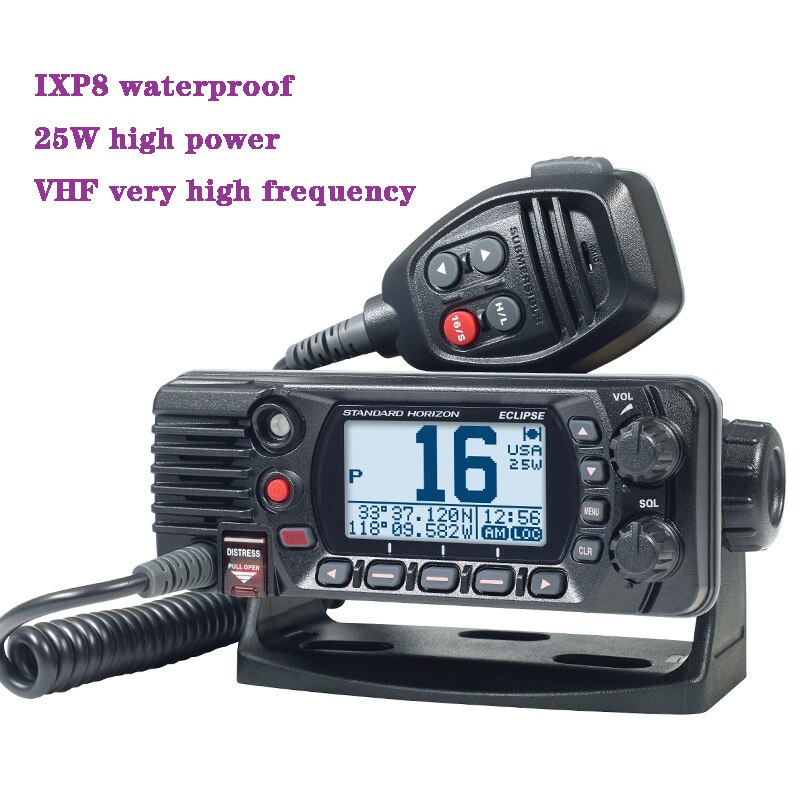

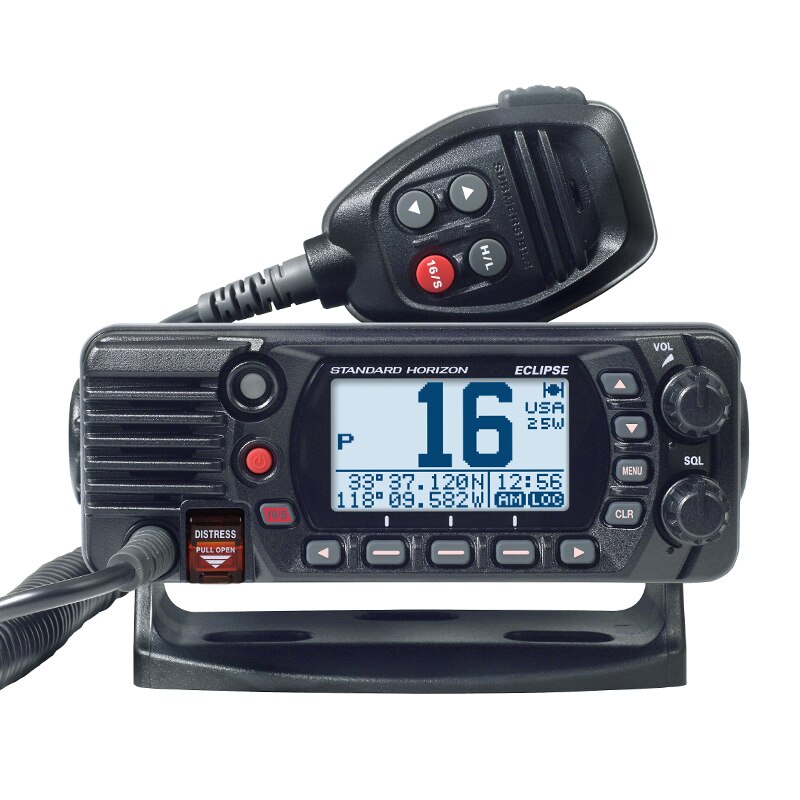

IPX8 Waterproof Yaesu GX1400 VHF Marine Radio Standard Horizon GX1400 Eclipse MOBILE TWO WAY RADIO 25 WATTS 99 CH
Parameter
Frequency bands: International, US and Canada (depending on the specific version)
Channel Spacing: 25kHz
Frequency stability: ±3ppm (-20℃~+60℃)
Launch type: 16K0G3E, 16K0G2B
Antenna Impedance: 50 Ohms
Power supply voltage: 13.8 VDC ±20%
Current consumption: 1.2A (receiving), 0.3A (standby), transmitting: 5.0A/1.0A (transmitting: 25W/1W)
Operating temperature: (-20°C~+60°C)

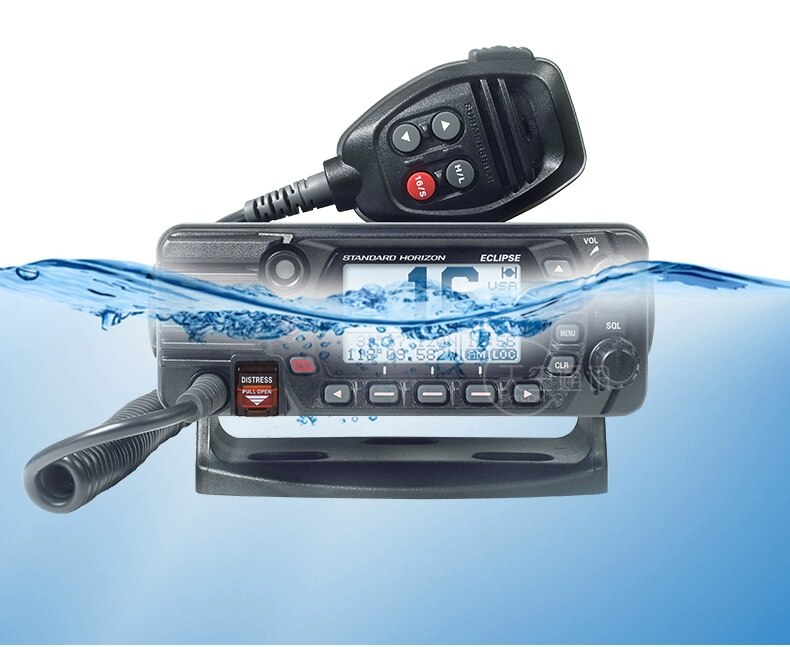

Waterproof level: IPX8 level (1.5 meters deep for 30 minutes)
Size: 156*61*100mm
Embedded installation size: 131*50*120mm
Weight: about 800g
Launch unit:
Frequency range (MHz):
Maritime frequency band: 156.025MHz-157.425MHz (USA)
, 156.025MHz-161.600MHz (International)
RF output power: 25W/1W
Maximum frequency deviation: ±5.0kHz
Spurious emission: -80dBc/-66dBc (TX:25w/1w)
Receiver unit:
Frequency range (MHz): Maritime frequency band: 156.050MHz-163.275MHz
Circuit type: double conversion superheterodyne
Sensitivity (12dB SINAD): 0.25μV
Spurious and image rejection: Speech: 75dB (DSC: 70dB)
Intermodulation: Voice: 70dB (DSC: 70dB)
Audio output: 4.5W
Other useful functions:
1. All US, international and Canadian maritime communication channels.
2. NMEA input and output to connect to a compatible GPS chartplotter.
3. Automatic DSC polling, up to 6 ship GPS positions.
4. The preset key can be used to enable the 10 most frequently used channels.
5. Programmable soft keys.
6. Programmable scanning, priority scanning and multi-channel monitoring.
7. NOAA weather forecast*1.
8. Embedded cutout: width 131*thickness 50mm
Built-in 70 maritime channels, convenient operation menu system, microphone noise reduction, clearer voice. More features are waiting for you to discover.
