Motorola XiR P6600/XiR P6600i Non-Keypad Portable Radio Professional Wireless Explosion-proof Walkie Talkie
With this dynamic evolution of MOTOTRBO digital two-way radios, you’re better connected, safer and more efficient. The XiR P6600i Series is designed for the everyday worker who needs effective communications. With systems support and loud, clear audio, these next-generation radios deliver cost-effective connectivity to your organisation.
|
Storage Channel
|
16
|
|
Product Name
|
Motorola XiR P6600i
|
|
Product Name
|
122x56x36 mm
|
|
Operation Voltage
|
DC 7.4V
|
|
Frequency range
|
VHF:136-174 MHz /UHF:403-527 MHz
|
|

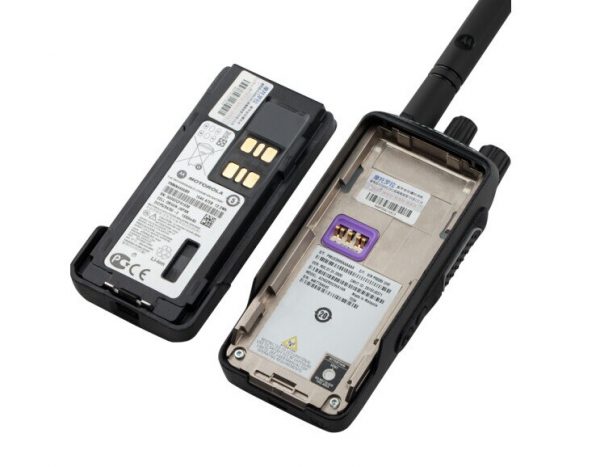

Battery capacity
|
1800mAh Li-ion battery
|
|
Antenna Impedance
|
50Ω
|
|
Operation Temperature
|
-30℃ ~ +60℃
|
|
Output power
|
5W
|
|
Standby time
|
≈12-24 hours
|
|
Order service
|
Retail/Wholesale/OEM/ODM
|
|
Channel spacing
|
12.5,25 kHz
|
| Functional features |
|
-
General Specifications Frequency?Range 136-174 MHz/350-400 MHz/403-527 MHz Channel Capacity 16 Frequency Spacing 12.5/20/25 KHz Power supply 7.4V battery capacity 2050mAh Li-ion?battery? Frequency Stability ±0.5ppm Operating Temperature Range -30°C to + 60°C? Weight 270g Transmitter and receiver Output power UHF:1W / 5W VHF: 1W / 4W FM Hum and Noise 40dB @ 12.5KHz; 45dB @ 25KHz Modulation Limited ±2.5KHz @ 12.5KHz; ??±5.0KHz @ 25KHz? Audio Distortion 3% Conducted / Radiated Emission -36dBm <1GHz
-30dBm >1GHzAdjacent Channel Power -60 dB @ 12.5 kHz -70 dB @ 25 kHz
