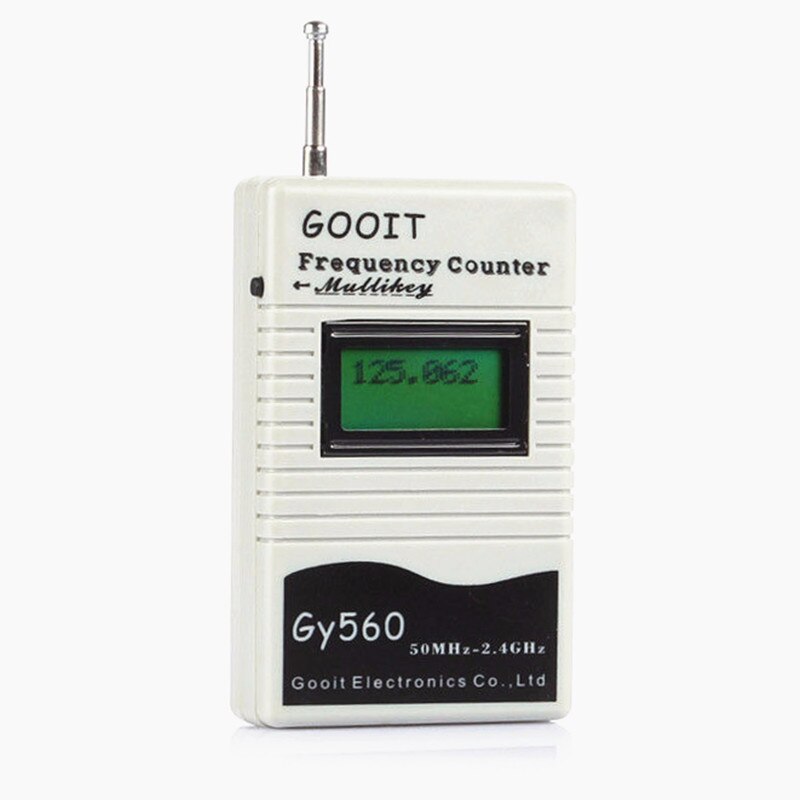

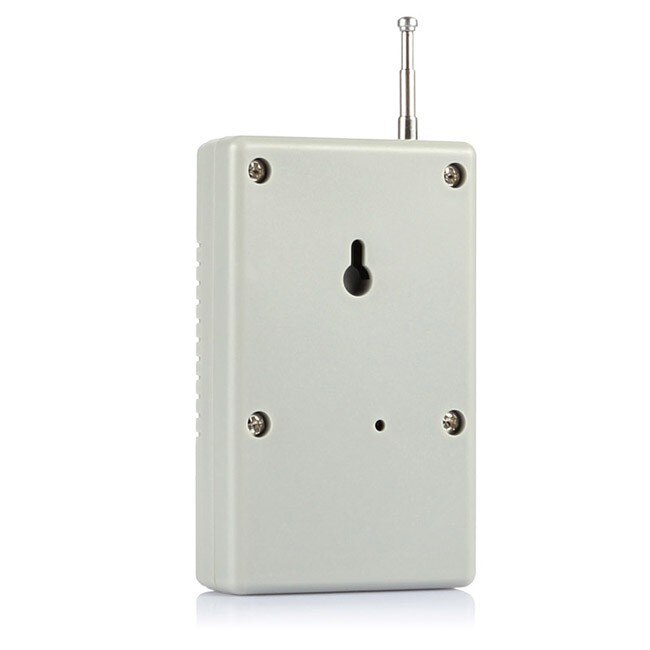

Frequency meter Counter tester GY560 for Two-Way Radio Transceiver GSM 50MHz-2.4GHz 7 DIGITAL LCD Display with Signal Meter
GY560 Frequency meter Counter tester for Two-Way Radio Transceiver GSM 50MHz-2.4GHz 7 DIGITAL LCD Display with Signal Meter
Package list:
- GY560 Frequency Counter*1(no battery)
- English manual*1
Attention:All our goods are 100% new,never been used before!
This frequency counter can continually test the analog radio signal (handhold radio,wireless phone, etc ) and digital radio signal, to display the frequency parameter with the signal strength.It must be the best tool for the signal testing and radio maintenance.
Specifications:
– Frequency step : 200K (digital radio signal), 1K, 100Hz.
– Testing distance : UHF : 8m, VHF : 5m.
– Testing range : 50 MHz ~ 2.4 GHz
– Antenna : pulling out antenna
– Battery : 9V 6F22
– Auto power off time : 1 mins. (except for the digital signal gear)
– Operation : the only one button with all functions
Operation:
The only one button with all functions.
The 1st pressing to turn on
Welcomingrelease the button return to powering off mode
***continually pressing
To choose the 200k steprelease button , 200k mode for digital radio
***continually pressing
To choose the 1k step — release button , 1k mode for faster testing
***continually pressing
To choose the 100Hz step release button, 100Hz mode for accurate testing
***continually pressing
Turned on (1k or 100Hz mode) turned on (200k mode)|
Press quickly and release normal pressing
To lock the screen display Bye Bye
Press quickly again and release release the button, then power off.
Unlock the screen
continually pressing for 2 sec or more
Display BI BI
Release the button, then power off.
